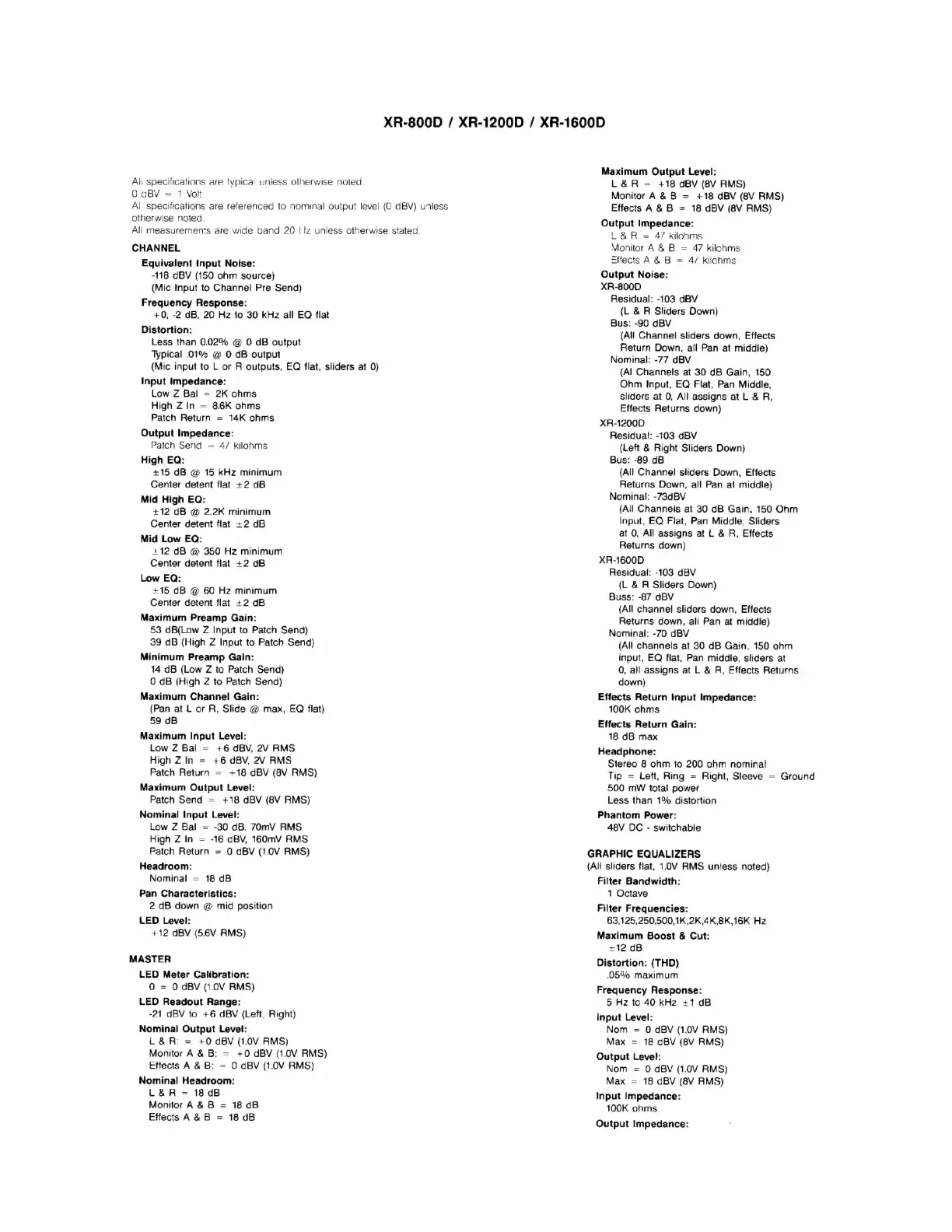

Ali specifications are tvpica: unless otherwise noted
0 aBV = 1 Volt
Al specifications are referenced to nominal output level (С аву) unless
otherwise noted.
All measurements are wide band 20 | tz unless otherwise stated.
CHANNEL
Equivalent input Noise:
-118 dBV (150 ohm source)
(Mic Input to Channel Pre Send)
Frequency Response:
+0, -2 dB, 20 Hz to 30 kHz all EQ flat
Distortion:
Less than 0.02% @ 0 dB output
Typical 01% @ 0 dB output
(Mic input to L or R outputs, EQ flat, sliders at 0)
input impedance:
Low Z Bal - 2K ohms
High Z In — 86K ohms
Patch Return = 14K ohms
Output Impedance:
Patch Send = 47 kilohms
High EQ:
+15 dB @ 15 kHz minimum
Center detent flat +2 dB
Mid High EQ:
+12 dB @ 2.2K minimum
Center detent flat +2 dB
Mid Low EQ:
+12 dB @ 350 Hz minimum
Center detent flat +2 dB
Low EQ:
+15 dB @ 60 Hz minimum
Center detent flat +2 dB
Maximum Preamp Gain:
53 dB(Low Z Input to Patch Send)
39 dB (High Z Input to Patch Send)
Minimum Preamp Gain:
14 dB (Low Z to Patch Send)
0 dB (High Z to Patch Send)
Maximum Channel Gain:
(Pan at L or В, Slide @ max, EQ flat)
59 dB
Maximum Input Level:
Low Z Bal = +6 аву, 2V RMS
High Z In = +6 аву, 2V RMS
Patch Return = +18 dBV (8V RMS)
Maximum Output Level:
Patch Send = +18 dBV (8V RMS)
Nominal Input Level:
Low 2 Bal = -30 dB. 70mV RMS
High Z In = -16 dBV, 160mV RMS
Patch Return = 0 aBV (1.0V RMS)
Headroom:
Nominal = 18 dB
Pan Characteristics:
2 dB down @ mid position
LED Level:
+12 dBV (5.6V RMS)
MASTER
LED Meter Calibration:
О = О dBV (10V RMS)
LED Readout Range:
-21 dBV to +6 dBV (Left, Right)
Nominal Output Level:
L&R: = «0 dBV (1.0V RMS)
Monitor A & B: = +0 dBV (1.0V RMS)
Effects A & B: = O dBV (1.0V RMS)
Nominal Headroom:
L&R = 18 dB
Monitor A & B = 18 dB
Effects A & B = 18 dB
XR-800D / XR-1200D / XR-1600D
Maximum Output Level:
L&R = 418 dBV (8V RMS)
Monitor A & B = +18 dBV (BV RMS)
Effects A & B - 18 dBV (8V RMS)
Output Impedance:
L&R = 47 kilohms
Monitor A & В = 47 kilchms
zffects A & B = 4/ kilohms
Output Noise:
XR-800D
Residual: -103 dBV
(L & R Sliders Down)
Bus: -90 dBV
(All Channe! sliders down, Effects
Return Down, all Pan at middie)
Nominal: -77 dBV
(Al Channels at 30 dB Gain, 150
Ohm Input, EQ Flat, Pan Middle,
sliders at 0, All assigns at L & R,
Effects Returns down)
XR-1200D
Residual: -103 dBV
(Left & Right Sliders Down)
Bus: -89 dB
(All Channel sliders Down, Effects
Returns Down, all Pan ai middle)
Nominal: -73dBV
(All Channels at 30 dB Gain, 150 Ohm
Input, EQ Flat, Pan Middle, Sliders
at 0, All assigns at L & R, Effects
Returns down)
XR-1600D
Residual: -103 dBV
(L & R Sliders Down)
Buss: -87 dBV
(All channel sliders down, Effects
Returns down, all Pan at middle)
Nominal: -70 dBV
(All channels at 30 dB Gain, 150 ohm
input, EQ flat, Pan middle, sliders at
0, all assigns at L & A, Effects Returns
down)
Effects Return Input Impedance:
100K ohms
Effects Return Gain:
18 dB max
Headphone:
Stereo 8 ohm to 200 ohm nominal
Tip = Left, Ring = Right, Sleeve = Ground
500 mW total power
Less than 1% distortion
Phantom Power:
48V DC - switchable
GRAPHIC EQUALIZERS
{All sliders flat, 1.0V RMS unless noted)
Filter Bandwidth:
1 Octave
Filter Frequencies:
63,125,250,500,1K,2K,4K,8K,16K Hz
Maximum Boost & Cut:
-12 dB
Distortion: (THD)
05% maximum
Frequency Response:
5 Hz to 40 kHz +1 dB
Input Level:
Nom - 0 dBV (1.0V RMS)
Max - 18 dBV (8V RMS)
Output Level:
Nom = 0 dBV (1.0V RMS)
Max - 18 dBV (8V RMS)
Input Impedance:
100K ohms
Output Impedance:
