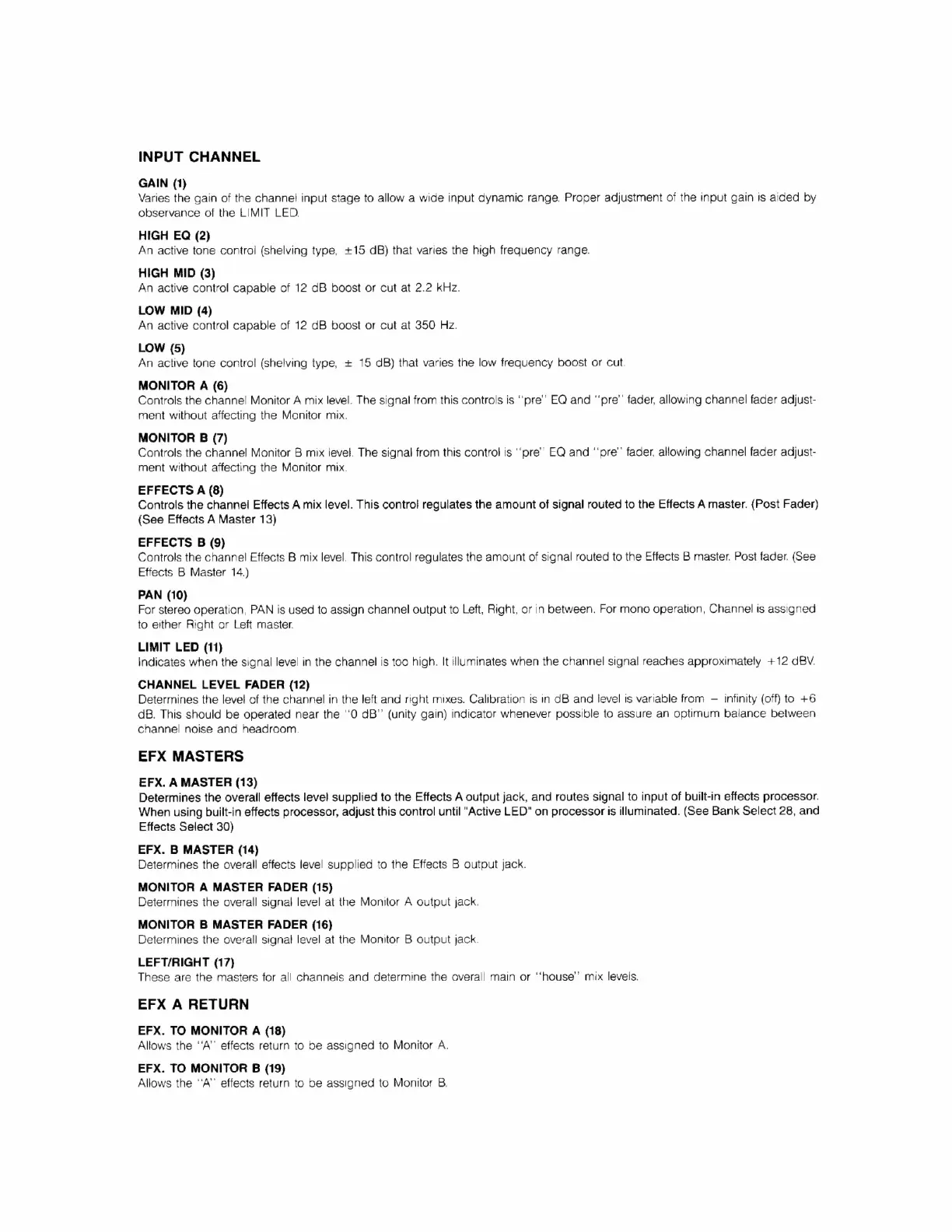

INPUT
CHANNEL
GAIN
(1)
Varies
the
gain
of
the
channe!
input
stage
to
allow
a
wide
input
dynamic
range.
Proper
adjustment
of
the
input
gain
is
aided
by
observance
of
the
LIMIT
LED.
HIGH
EQ
(2)
An
active
tone
control
(shelving
type,
+15
dB)
that
varies
the
high
frequency
range.
HIGH
MID
(3)
An
active
control
capable
of
12
dB
boost
or
cut
at
2.2
kHz.
LOW
MID
(4)
An
active
control
capable
of
12
ОВ
boost
or
cut
at
350
Hz.
LOW
(5)
An
active
tone
control
(shelving
type,
+
15
dB)
that
varies
the
low
frequency
boost
or
cut.
MONITOR
A
(6)
Controls
the
channel
Monitor
A
mix
level.
The
signal
from
this
controls
is
"pre"
EQ
and
“pre”
fader,
allowing
channel
fader
adjust-
ment
without
affecting
the
Monitor
mix.
MONITOR
B
(7)
Controls
the
channel
Monitor
В
mix
level.
The
signal
from
this
control
is
‘рге
EQ
and
"pre"
fader,
allowing
channel
fader
adjust-
ment
without
affecting
the
Monitor
mix.
EFFECTS
A
(8)
Controls
the
channel
Effects
A
mix
level.
This
contro!
regulates
the
amount
of
signal
routed
to
the
Effects
A
master.
(Post
Fader)
(See
Effects
A
Master
13)
EFFECTS
B
(9)
Controls
the
channel
Effects
B
mix
level.
This
control
regulates
the
amount
of
signal
routed
to
the
Effects
B
master.
Post
fader.
(See
Effects
B
Master
14.)
PAN
(10)
For
stereo
operation,
PAN
is
used
to
assign
channel
output
to
Left,
Right,
or
in
between.
For
mono
operation,
Channel
is
assigned
to
either
Right
or
Left
master.
LIMIT
LED
(11)
Indicates
when
the
signal
level
in
the
channel
is
too
high.
It
illuminates
when
the
channel
signal
reaches
approximately
4-12
dBV.
CHANNEL
LEVEL
FADER
(12)
Determines
the
level
of
the
channel
in
the
left
and
right
mixes.
Calibration
is
in
dB
and
level
is
variable
from
—
infinity
(off)
to
+6
dB.
This
should
be
operated
near
the
“0
dB"
(unity
gain)
indicator
whenever
possible
to
assure
an
optimum
balance
between
channel
noise
and
headroom.
EFX
MASTERS
EFX.
A
MASTER
(13)
Determines
the
overall
effects
level
supplied
to
the
Effects
A
output
jack,
and
routes
signal
to
input
of
built-in
effects
processor.
When
using
built-in
effects
processor,
adjust
this
control
until
"Active
LED"
on
processor
is
illuminated.
(See
Bank
Select
28,
and
Effects
Select
30)
EFX.
B
MASTER
(14)
Determines
the
overall
effects
leve!
supplied
to
the
Effects
B
output
jack.
MONITOR
A
MASTER
FADER
(15)
Determines
the
overall
signal
level
at
the
Monitor
A
output
jack.
MONITOR
B
MASTER
FADER
(16)
Determines
the
overall
signal
level
at
the
Monitor
B
output
jack.
LEFT/RIGHT
(17)
These
are
the
masters
for
all
channels
and
determine
the
overall
main
or
“house”
mix
levels.
EFX
A
RETURN
EFX.
TO
MONITOR
A
(18)
Allows
the
“А”
effects
return
to
be
assigned
to
Monitor
A.
EFX.
TO
MONITOR
B
(19)
Allows
the
“А”
effects
return
to
be
assigned
to
Monitor
B.
