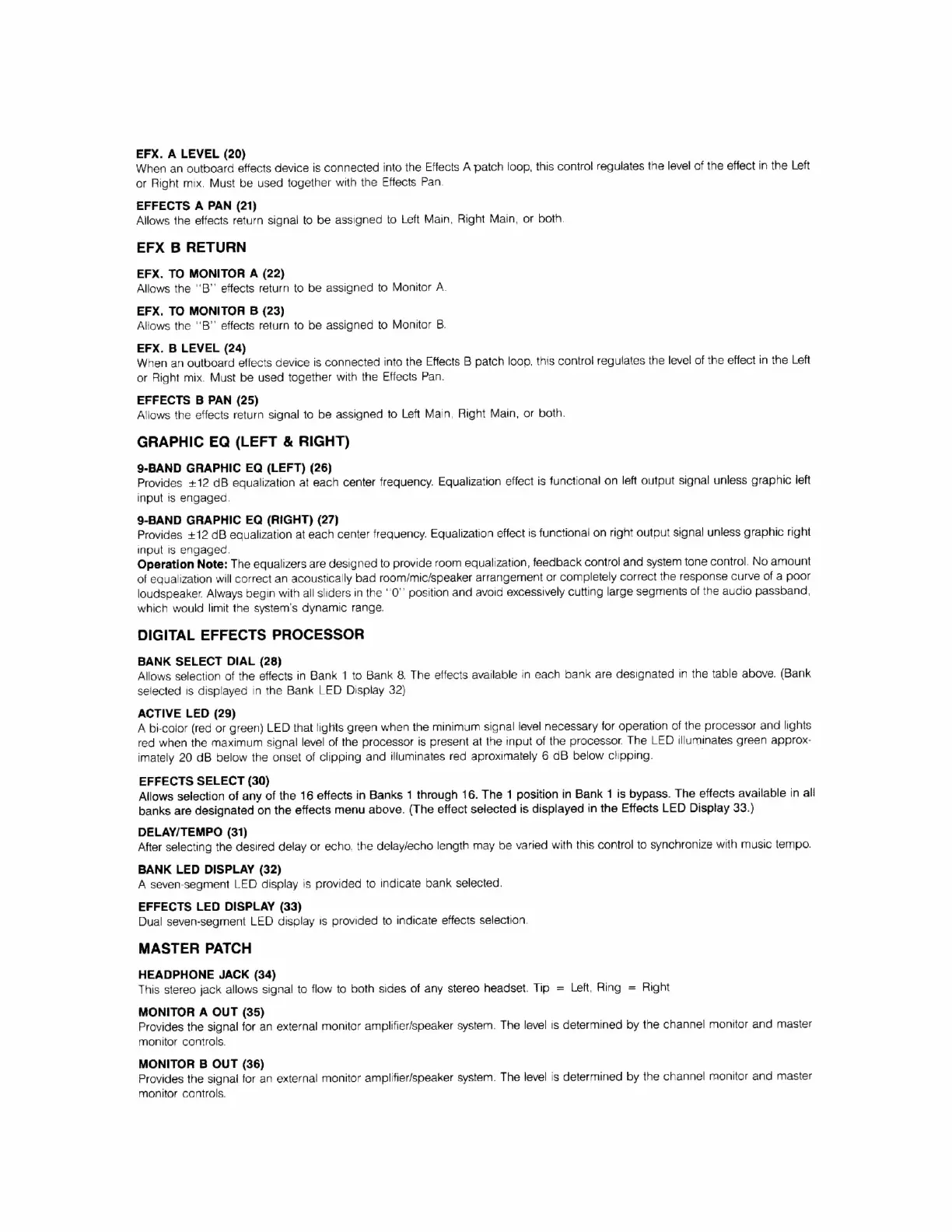

EFX. A LEVEL (20)
When
an
outboard
effects
device
is
connected
into
the
Effects
A
patch
loop,
this
control
regulates
the
level
of
the
effect
in
the
Left
or Right mix. Must be used together with the Effects Pan.
EFFECTS A PAN (21)
Allows the effects return signal to be assigned to Left Main, Right Main, or both.
EFX B RETURN
EFX. TO MONITOR A (22)
Allows the “В” effects return to be assigned to Monitor А.
EFX. TO MONITOR B (23)
Allows the “В” effects return to be assigned to Monitor B.
EFX. B LEVEL (24)
When
an
outboard
effects
device
is
connected
into
the
Effects
B
patch
loop,
this
control
regulates
the
level
of
the
effect
in
the
Left
or Right mix. Must be used together with the Effects Pan.
EFFECTS B PAN (25)
Allows the effects return signal to be assigned to Left Main, Right Main, or both.
GRAPHIC EQ (LEFT & RIGHT)
9-BAND GRAPHIC EQ (LEFT) (26)
Provides +12 dB equalization at each center frequency. Equalization effect is functional on left output signal unless graphic left
input is engaged.
9-BAND GRAPHIC EQ (RIGHT) (27)
Provides +12 dB equalization at each center frequency. Equalization effect is functional on right output signal unless graphic right
input is engaged,
Operation
Note:
The
equalizers
are
designed
to
provide
room
equalization,
feedback
control
and
system
tone
control.
No
amount
of
equalization
will
correct
an
acoustically
bad
room/mic/speaker
arrangement
or
completely
correct
the
response
curve
of
a
poor
loudspeaker.
Always
begin
with
all
sliders
in
the
“0”
position
and
avoid
excessively
cutting
large
segments
of
the
audio
passband,
which
would
limit
the
system's
dynamic
range.
DIGITAL EFFECTS PROCESSOR
BANK SELECT DIAL (28)
Allows
selection
of
the
effects
in
Bank
1
to
Bank
8.
The
effects
available
in
each
bank
are
designated
in
the
table
above.
(Bank
selected is displayed in the Bank LED Display 32)
ACTIVE LED (29)
A
bi-color
(red
or
green)
LED
that
lights
green
when
the
minimum
signal
level
necessary
for
operation
of
the
processor
and
lights
red
when
the
maximum
signal
level
of
the
processor
is
present
at
the
input
of
the
processor.
The
LED
illuminates
green
approx-
imately
20
dB
below
the
onset
of
clipping
and
illuminates
red
aproximately
6
dB
below
clipping.
|
EFFECTS SELECT (30)
Allows
selection
of
any
of
the
16
effects
in
Banks
1
through
16.
The
1
position
in
Bank
1
is
bypass.
The
effects
available
in
ali
banks are designated on the effects menu above. (The effect selected is displayed in the Effects LED Display 33.)
DELAY/TEMPO (31)
After
selecting
the
desired
delay
or
echo.
the
delay/echo
length
may
be
varied
with
this
control
to
synchronize
with
music
tempo.
BANK LED DISPLAY (32)
A seven-segment LED display is provided to indicate bank selected.
EFFECTS LED DISPLAY (33)
Dual seven-segment LED display is provided to indicate effects selection.
MASTER PATCH
HEADPHONE JACK (34)
This stereo jack allows signal to flow to both sides of any stereo headset. Tip = Left, Ring = Right
MONITOR A OUT (35)
Provides
the
signal
for
an
external
monitor
amplifier/speaker
system.
The
level
is
determined
by
the
channel
monitor
and
master
monitor controls.
MONITOR B OUT (36)
Provides
the
signal
for
an
external
monitor
amplifier/speaker
system.
The
level
is
determined
by
the
channel
monitor
and
master
monitor controls.
