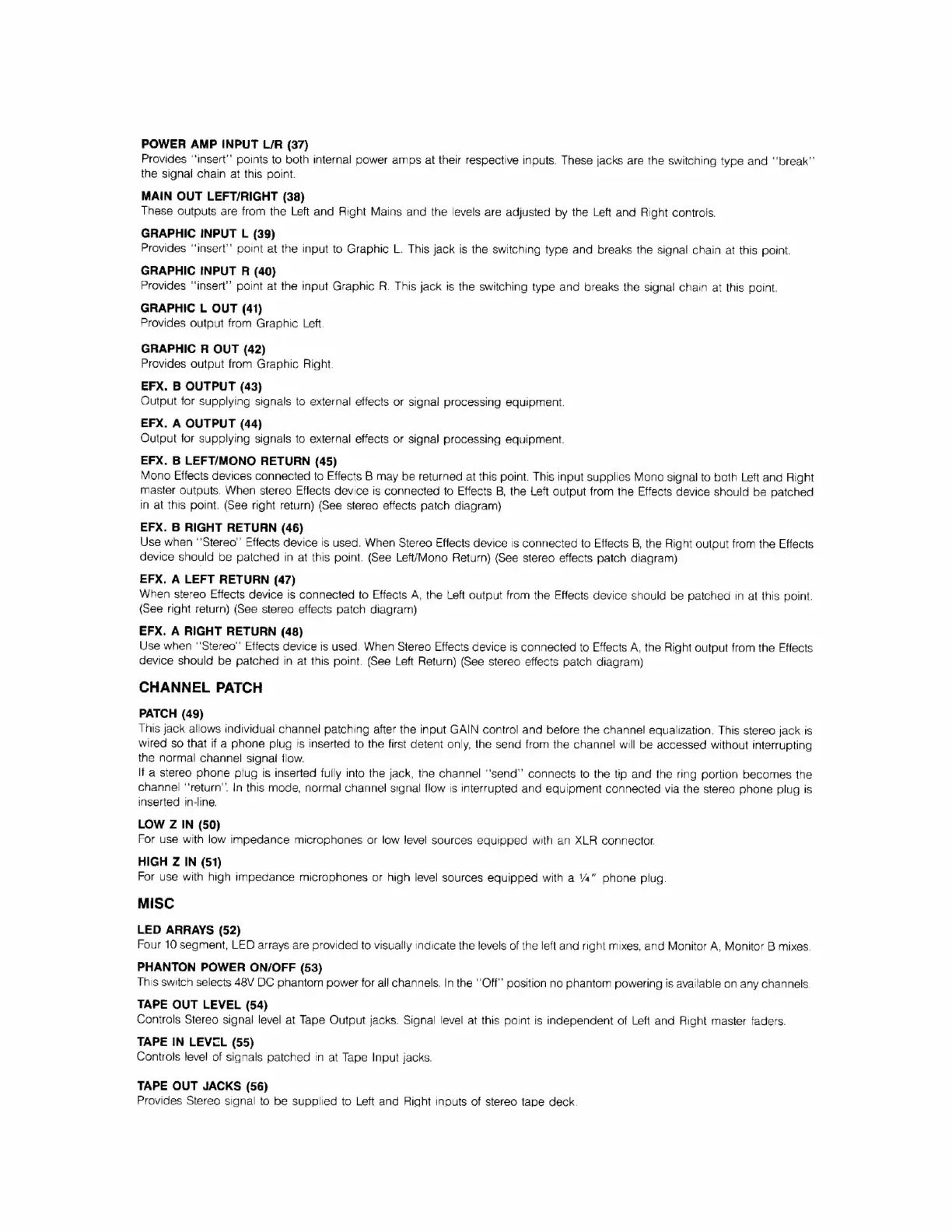

POWER AMP INPUT L/R (37)
Provides "insert" points to both internal power amps at their respective inputs. These jacks are the switching type and “break”
the signal chain at this point.
MAIN OUT LEFT/RIGHT (38)
These outputs are from the Left and Right Mains and the levels are adjusted by the Left and Right controls.
GRAPHIC INPUT L (39)
Provides “insert” point at the input to Graphic L. This jack is the switching type and breaks the signal chain at this point.
GRAPHIC INPUT R (40)
Provides "insert" point at the input Graphic R. This jack is the switching type and breaks the signal chain at this point.
GRAPHIC L OUT (41)
Provides output from Graphic Left.
GRAPHIC R OUT (42)
Provides output from Graphic Right.
EFX. B OUTPUT (43)
Output for supplying signals to external effects or signal processing equipment.
EFX. A OUTPUT (44)
Output for supplying signals to external effects or signal processing equipment.
EFX. B LEFT/MONO RETURN (45)
Mono Effects devices connected to Effects B may be returned at this point. This input supplies Mono signal to both Left and Right
master outputs. When stereo Effects device is connected to Effects B, the Left output from the Effects device should be patched
in at this point. (See right return) (See stereo effects patch diagram)
EFX. B RIGHT RETURN (46)
Use when “Stereo” Effects device is used. When Stereo Effects device is connected to Effects B, the Right output from the Effects
device should be patched in at this point. (See Left/Mono Return) (See stereo effects patch diagram)
EFX. A LEFT RETURN (47)
When stereo Effects device is connected to Effects A, the Left output from the Fffects device should be patched in at this point.
(See right return) (See stereo effects patch diagram)
EFX. A RIGHT RETURN (48)
Use when “Stereo” Effects device is used. When Stereo Effects device is connected to Effects A, the Right output from the Effects
device should be patched in at this point. (See Left Return) (See stereo effects patch diagram)
CHANNEL PATCH
PATCH (49)
This jack allows individual channel patching after the input GAIN control and before the channel equalization. This stereo jack is
wired so that if a phone plug is inserted to the first detent only, the send from the channel will be accessed without interrupting
the normal channel signal flow.
If a stereo phone plug is inserted fully into the jack, the channel “send” connects to the tip and the ring portion becomes the
channel “return”. In this mode, normal channel signal flow is interrupted and equipment connected via the stereo phone plug is
inserted in-line.
LOW Z IN (50)
For use with low impedance microphones or low level sources equipped with an XLR connector.
HIGH Z IN (51)
For use with high impedance microphones or high level sources equipped with a 1⁄4” phone plug.
MISC
LED ARRAYS (52)
Four 10 segment, LED arrays are provided to visually indicate the levels of the left and right mixes, and Monitor A, Monitor B mixes.
PHANTON POWER ON/OFF (53)
This switch selects 48V DC phantom power for all channels. In the “Off” position no phantom powering is available on any channels.
TAPE OUT LEVEL (54)
Controls Stereo signal level at Tape Output jacks. Signal level at this point is independent of Left and Right master faders.
TAPE IN LEVEL (55)
Controls level of signals patched in at Tape Input jacks.
TAPE OUT JACKS (56)
Provides Stereo signal to be supplied to Left and Right inputs of stereo tape deck.
