TAPE IN JACKS (57)
Provides Stereo inputs for signal supplied by Left and Right outputs of stereo tape deck or CD player.
HEADPHONE LEVEL (58)
Adjusts the left and right signal level to the headphone jack. Signal taken pre the left and right main faders.

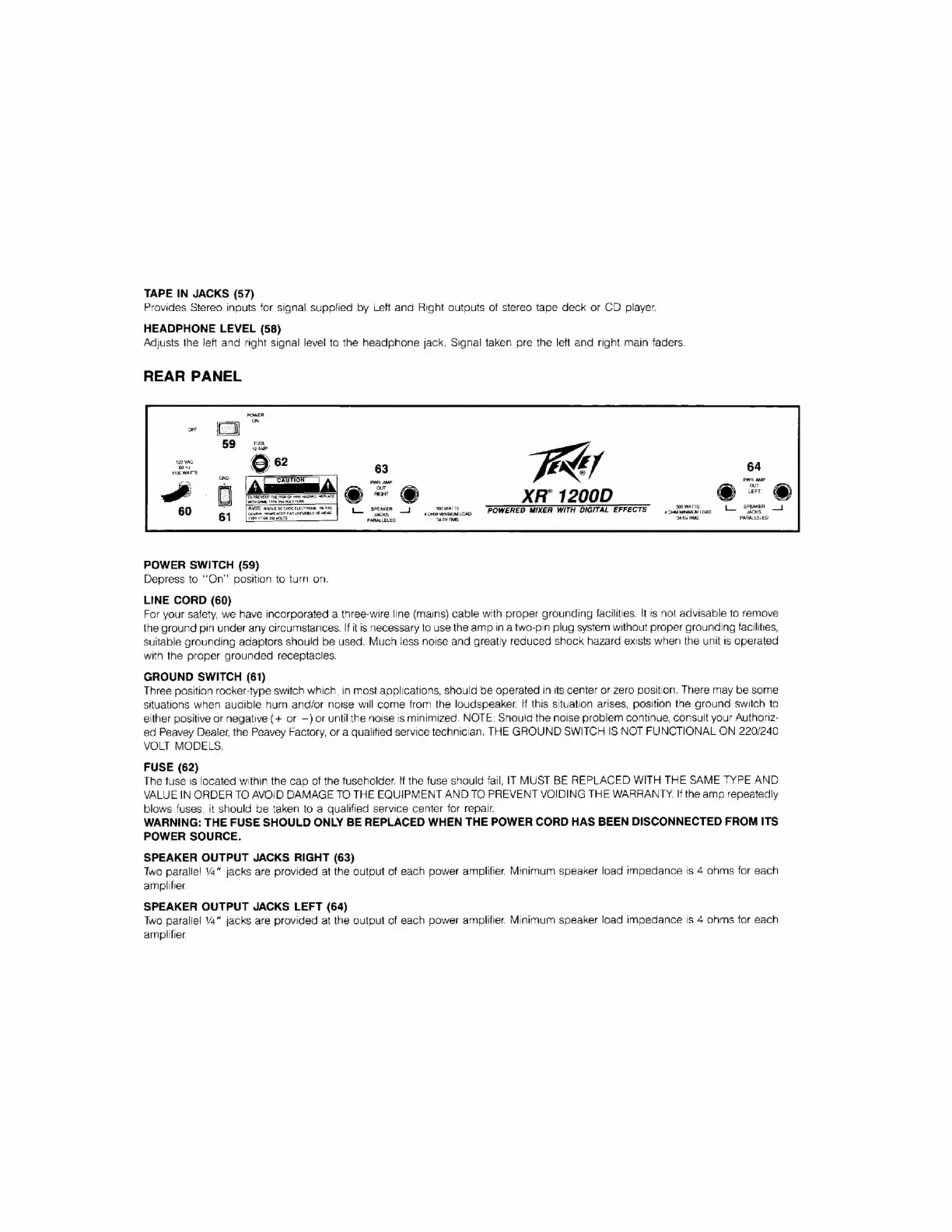

REAR PANEL
<2 / 64
PWR АМР
OUT
XR’ 1200D e ^ €
AVIS: uere e | Mu. SPEAKER _ | э warts POWERED MIXER WITH DIGITAL EFFECTS 4,4 S oo i SPEAKER LI
e
сомға REMPLACER FAR UNFUSIBLE DE MEME 4 OHM MINIMUM LOAD
ТҮРЕ ЕТ DE 250 WATS PARALLELEO ^4 6V RMS Y 6W KMS: PARALLEL ED
POWER SWITCH (59)
Depress to “Оп” position to turn on.
LINE CORD (60)
For your safety, we have incorporated a three-wire line (mains) cable with proper grounding facilities. It is not advisable to remove
the ground pin under any circumstances. If it is necessary to use the amp in a two-pin plug system without proper grounding facilities,
suitable grounding adaptors should be used. Much less noise and greatly reduced shock hazard exists when the unit is operated
with the proper grounded receptacles.
GROUND SWITCH (61)
Three position rocker-type switch which, in most applications, should be operated in its center or zero position. There may be some
situations when audible hum and/or noise will come from the loudspeaker. If this situation arises, position the ground switch to
either positive or negative (+ or —) or until the noise is minimized. NOTE: Should the noise problem continue, consult your Authoriz-
ed Peavey Dealer, the Peavey Factory, or a qualified service technician. THE GROUND SWITCH IS NOT FUNCTIONAL ON 220/240
VOLT MODELS.
FUSE (62)
The fuse is located within the cap of the fuseholder. If the fuse should fail, IT MUST BE REPLACED WITH THE SAME TYPE AND
VALUE IN ORDER TO AVOID DAMAGE TO THE EQUIPMENT AND TO PREVENT VOIDING THE WARRANTY. If the amp repeatedly
blows fuses, it should be taken to a qualified service center for repair.
WARNING: THE FUSE SHOULD ONLY BE REPLACED WHEN THE POWER CORD HAS BEEN DISCONNECTED FROM ITS
POWER SOURCE.
SPEAKER OUTPUT JACKS RIGHT (63)
Two parallel Ya" jacks are provided at the output of each power amplifier. Minimum speaker load impedance is 4 ohms for each
amplifier.
SPEAKER OUTPUT JACKS LEFT (64)
Two parallel 74“ jacks are provided at the output of each power amplifier. Minimum speaker load impedance is 4 ohms for each
amplifier.
