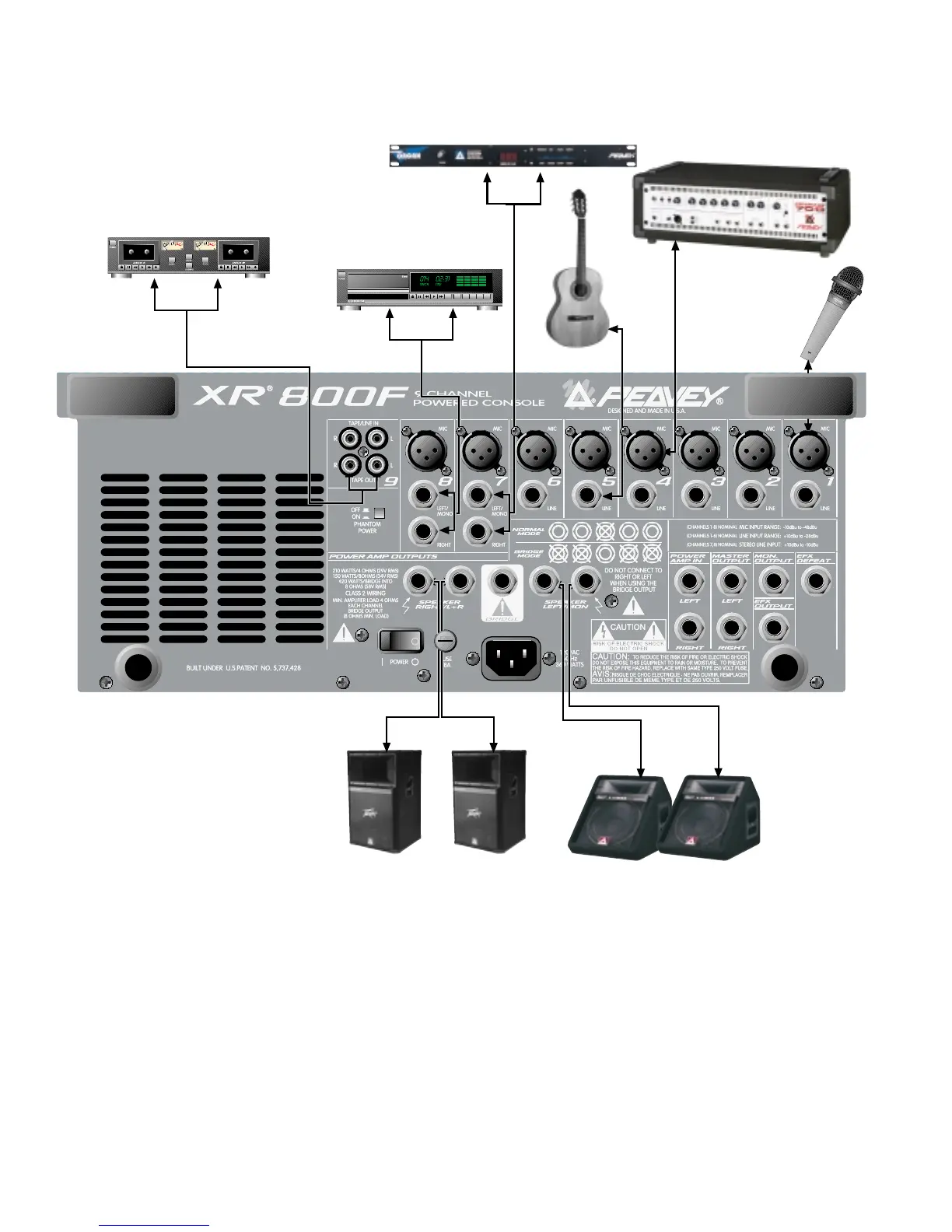

XR 800F HOOK-UP DIAGRAM
14
SP
™
2G SP
™
2G
CD Player
PVM
™
22
MIDI Sound Module
Recording Deck
L R
L R
L R
Firebass 700
SP
™
112M SP
™
112M
Out
Out
In
Line Out
*Shown with system mode switch depressed
