ASSEMBLY INSTRUCTIONS CONT.
For All Bikes

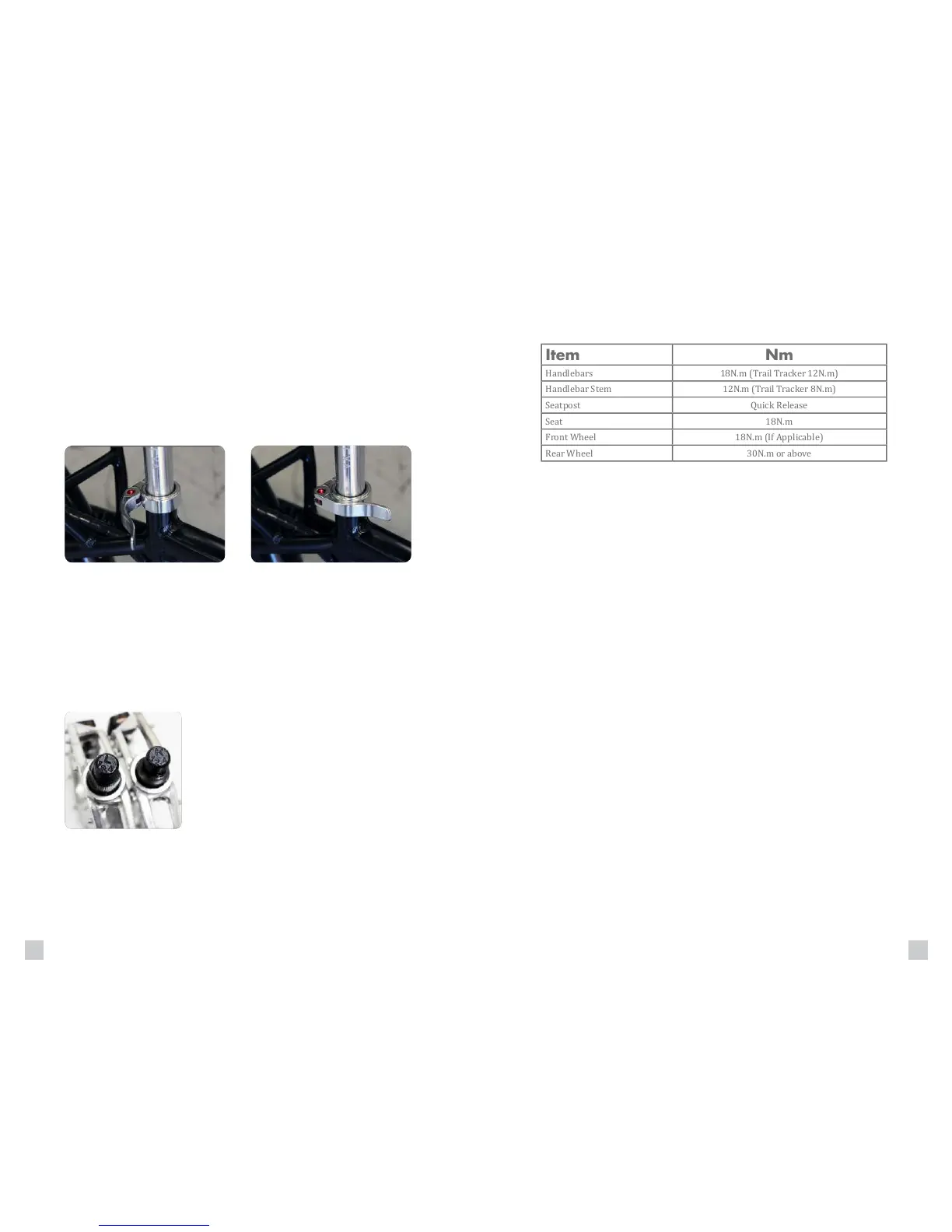

Make sure the seat is tight enough so that you can’t twist it out of alignment.
Pull the seat clamp handle away from the seat post and slide the seat up
or down to adjust it (Figure 1). Move the clamp handle inward toward the
seat post so it is held tight by the clamp (Figure 2).
If necessary, tighten the clamp by twisting the clamp handle clockwise while
in the unclamped position. Then, fold the handle in toward the seat post.
This should require a fair amount of force to ensure the seat post is held
tight. If necessary, the clamp can be further tightened with a 5 mm allen
wrench while in the clamped position. Make sure the seat is not set with
the vertical maximum height marks above the clamp.
If the disc brakes are rubbing after installation, refer to Customer Help
on our website at www.pedegoelectricbikes.com/faqs/customerhelp/
Item Nm
Handlebars 18N.m (Trail Tracker 12N.m)
Handlebar Stem 12N.m (Trail Tracker 8N.m)
Seatpost Quick Release
Seat 18N.m
Front Wheel 18N.m (If Applicable)
Rear Wheel 30N.m or above
TORQUE SPECIFICATIONS
Assembly Instructions
Figure 1 Figure 2
Using the 15 mm wrench provided in the tool
kit, attach and tighten the pedals. PLEASE
NOTE – The pedals are marked “L” for Left
and “R” for Right. The left pedal is attached
by turning it counterclockwise and the right
pedal is tightened by turning it clockwise.
Make sure the pedals are tightly attached
to the crank arms to prevent stripping.
