Pedigo P-2010, P-2020, P-2030, P-2040, P-2050, P-2055 Blanket Warming Cabinets Operation and Care Manual
5

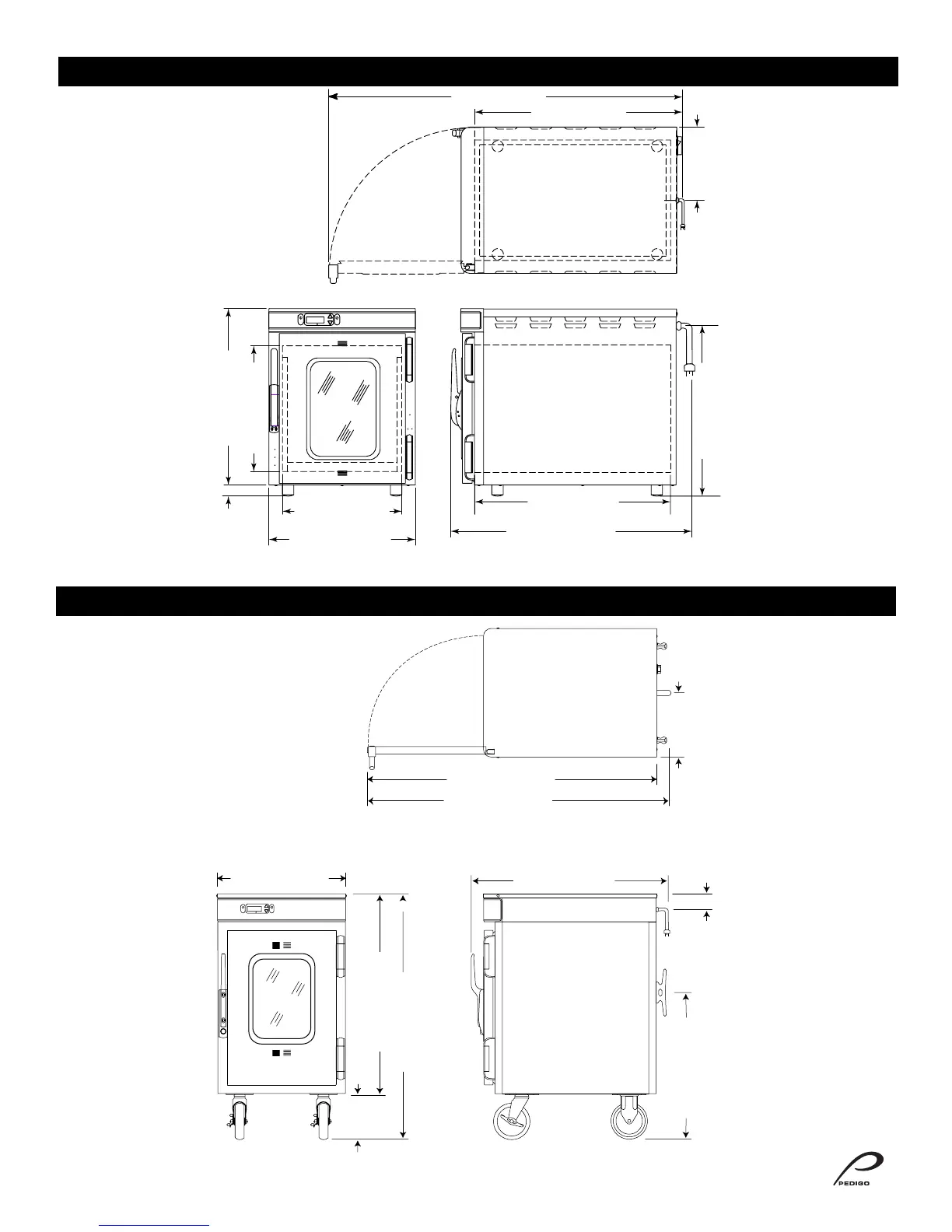

P-2010 DIMENSIONS
P-2020 DIMENSIONS
19.38" (492.8mm)
13.82" (351.4mm)
CAVITY
1.25" (31.4mm)
13.13" (333.2mm)
CAVITY
16.13" (409.0mm)
ELECTRICAL CONNECTION
18.69" (474.2mm)
21.50" (546.7mm)
CAVITY
27.44" (696.9mm)
OFF
ON
TIMER
TIME START STOP
LOCK
40.88" (988.0mm)
22.19" (580.1mm)
ELECTRICAL
8.07"
(204.5mm)
C
L
17.63" (447.0mm)
6.00" (152.9mm)
27.57" (700.4mm)
33.63" (853.3mm)
OFF
ON
TIMER
TIME START STOP
LOCK
28.00" (711.2mm)
2.19" (55.4mm)
ELECTRICAL CONNECTION
20.07" (509.9mm)
39.63" (1005.9mm)
42.25" (1073.2mm)
8.82" (223.5mm)
ELECTRICAL CONNECTION
