8

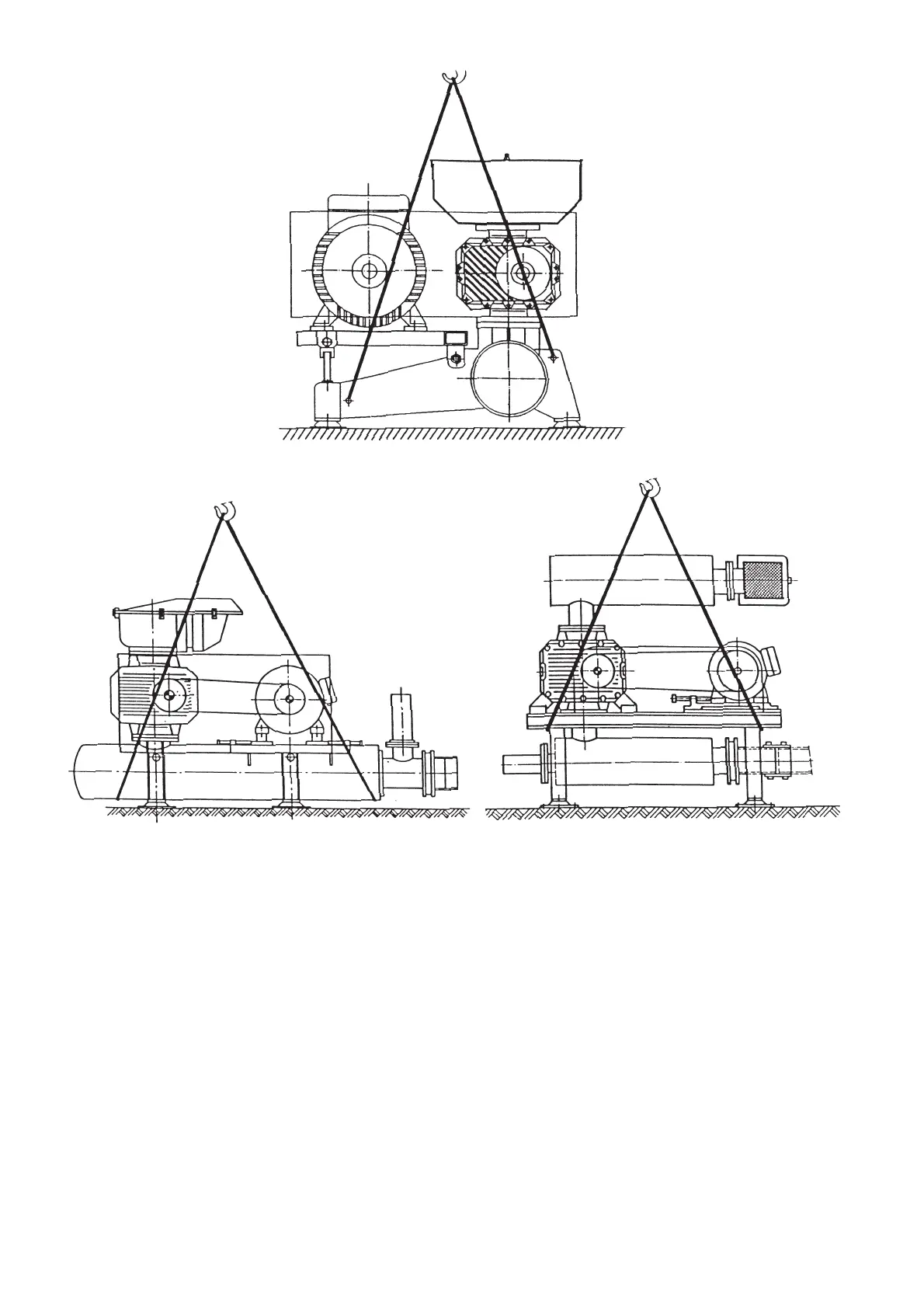

ASSEMBLY: B-51.F
ASSEMBLY: B-51.C
ASSEMBLY: PG-30 / 35 / 38
5.0 ASSEMBLY AND PREPARATION FOR STARTING
• Before locating the unit or blower, the surface must be completely clean and dry, and free of any oil.
• The surface of the base must be scrubbed and clean, as well as the holes for the anchor bolts. Blow them with clean
air if possible.
• The surface of the base must be completely smooth.
• After locating and supporting the machine, the surface must be drilled, and without moving the unit, the anchor bolts
must be fixed in place. If the unit is installed onto the base of the cabin, the same procedure is carried out from the
base.
• The connection with the thrust or suction tube (in which case it operates at low pressure) will be as stable as
possible, through the rubber hose or axial compensator.
• If the unit is located in a room, check that the air intake is balanced and correct.
• Install an earth for the motor, muffler bed and soundproof cabin, to prevent charging and
discharging of static electricity.
• In order to connect the electric motor, it is VERY IMPORTANT to know the type of start up and check the
connections in the junction box. The technical and service data, shown on the specifications plate and the
connection diagram must be checked. The motor comes with its own instruction manual. THIS WORK MUST
BE CARRIED OUT BY SUITABLY QUALIFIED PERSONNEL.
