PEDRO GIL RN - OIL SPECIFICATIONS AND LEVEL CHECK

VERY IMPORTANT

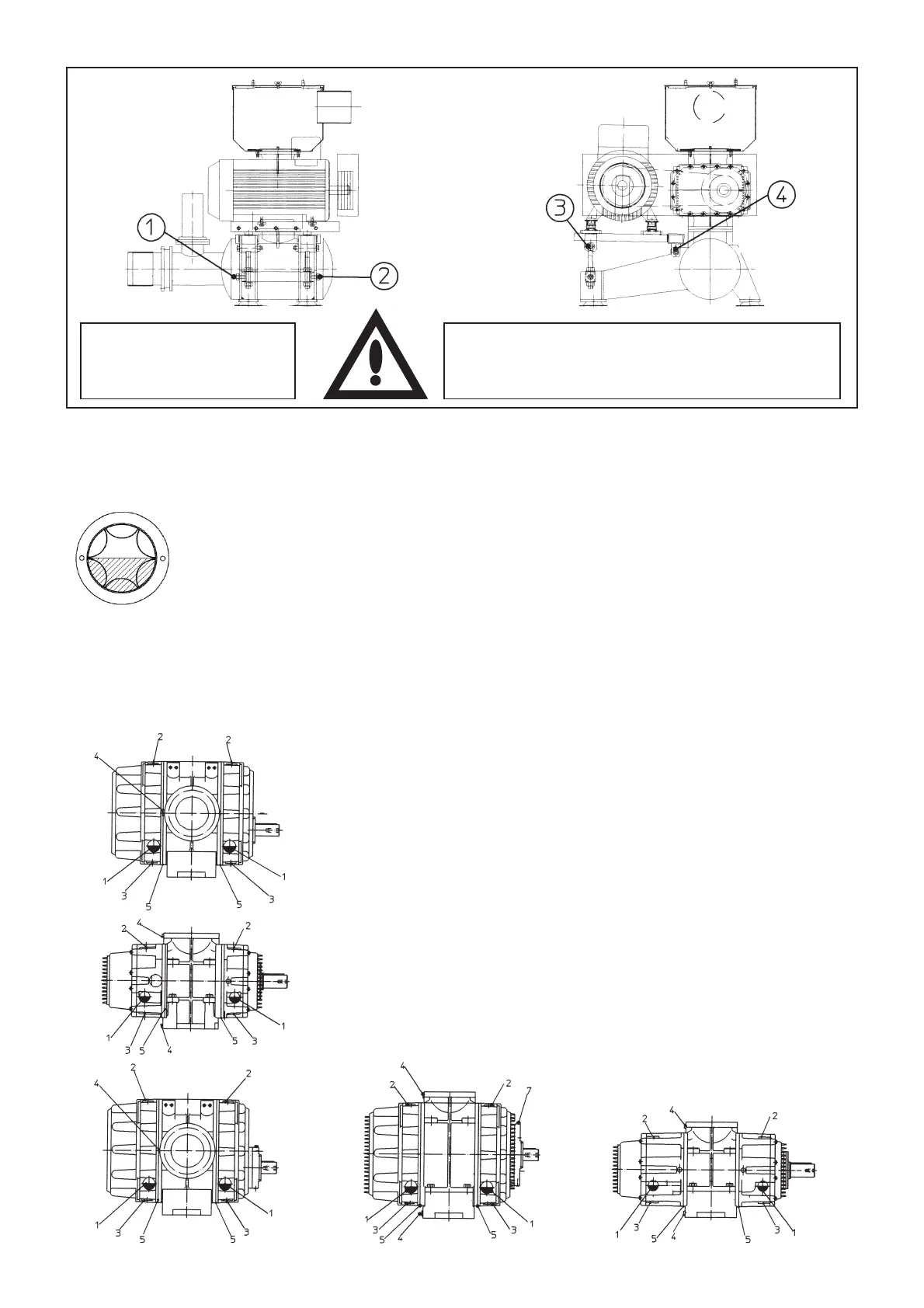

* AFTER ADJUSTING THE SUPPORT PLATE TO
SET THE CORRECT BELT TENSION
LOCK THE HINGE NUTS
AFTER TWO HOURS OF
SERVICE, RE-TIGHTEN THE
BELTS
11
1 Oil level sight glass
2 Oil filling cap
3 Oil emptying cap
4 Pressure connection:
Connection for measurement instrumentation.
Up to blower size
33.30 = 1/4” G
From the size 34 = 1/2” G
5 Condensation exit (bleed)
Size 60 = 1/8” G
Sizes 30 to 33 = 1/4” G
Sizes 34 to 27 = 1/2” G
In blowers for air, it is open to the atmosphere.
In blowers for enclosed gas, piped off to low pressure clamp,
etc., the system necessary is adopted, depending on the gas and
the operating conditions.
8.0 OIL.
Oli splash provides lubrication to both gears and bearings .
IMPORTANT
Excess filling will provoke an increase in the oil temperature, and therefore incorrect mechanical operation of the
blower. This can also produce oil loss to the compression chamber. In blowers with pressurised lubrication, and
pressurised lubrication with an oil cooler, the oil pump is assembled on the sump opposite the drive side.
Correct oil level is indicated in the drawing.
