PEELLE 2745 - Getting Familiar with the Controller; Controller Component Layout and Identification

Model 2745, Wireless Door Controller Installation and Operation Manual
The Peelle Company Guide 224
www.peelledoor.com Page 6 April 2011

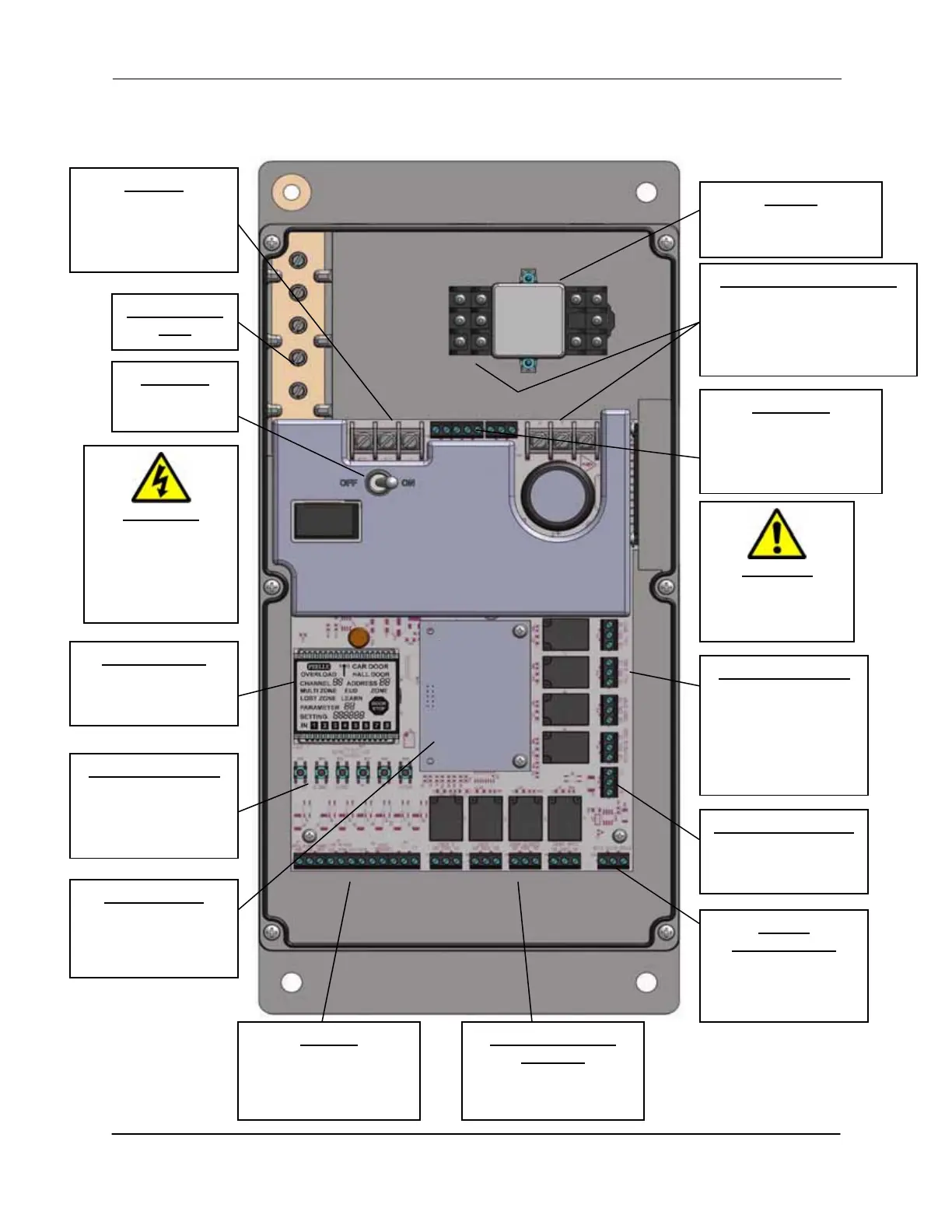

IV. GETTING FAMILIAR WITH THE CONTROLLER
ON - OFF
Internal Power
Switch
WARNING
HIGH VOLTAGES
Read Safety
Warning before
attempting to use
this controller
RELAY
Car Door Controller
Retiring Cam Relay
LCD DISPLAY
Setup, Operation
and diagnostic
display
MOTOR CONNECTIONS
220V AC, 3 Phase
1 hp (.75kW) MAX
Door, Gate and Cam Motor
connections provided
ENCODER
Pulse encoder
providing closed loop
feedback of position
and speed
CAUTION
HEAT SINK
MAY BE HOT!
DO NOT TOUCH
RADIO CARD
IEEE 802.15.4
Wireless
Communication
INPUTS
Elevator Control inputs
and Landing Door
component
con
nections
DOOR POSITION
RELAYS
Door Open, Door
Close and User relays
REVERSING EDGE
Contact Reversing
Edge Connection
SETUP BUTTONS
User setup and
parameter settings
AUTO-IND mode
switch
GROUNDING
LUG
POWER
208-240V AC
1 Phase
5.5A, 50/60 Hz
L1, L2/N
OUTPUT RELAYS
Landing Door Push-
Buttons and
Reversing Edge
Output Relays
Max. 125V AC, 10A
Contacts
SLAVE
CONNECTION
Landing Door slave
connection (optional)
