PEERLESS SR1M - Page 7

7 of 14
ISSUED: 01-10-07 SHEET #: 009-9039-2 03-12-07

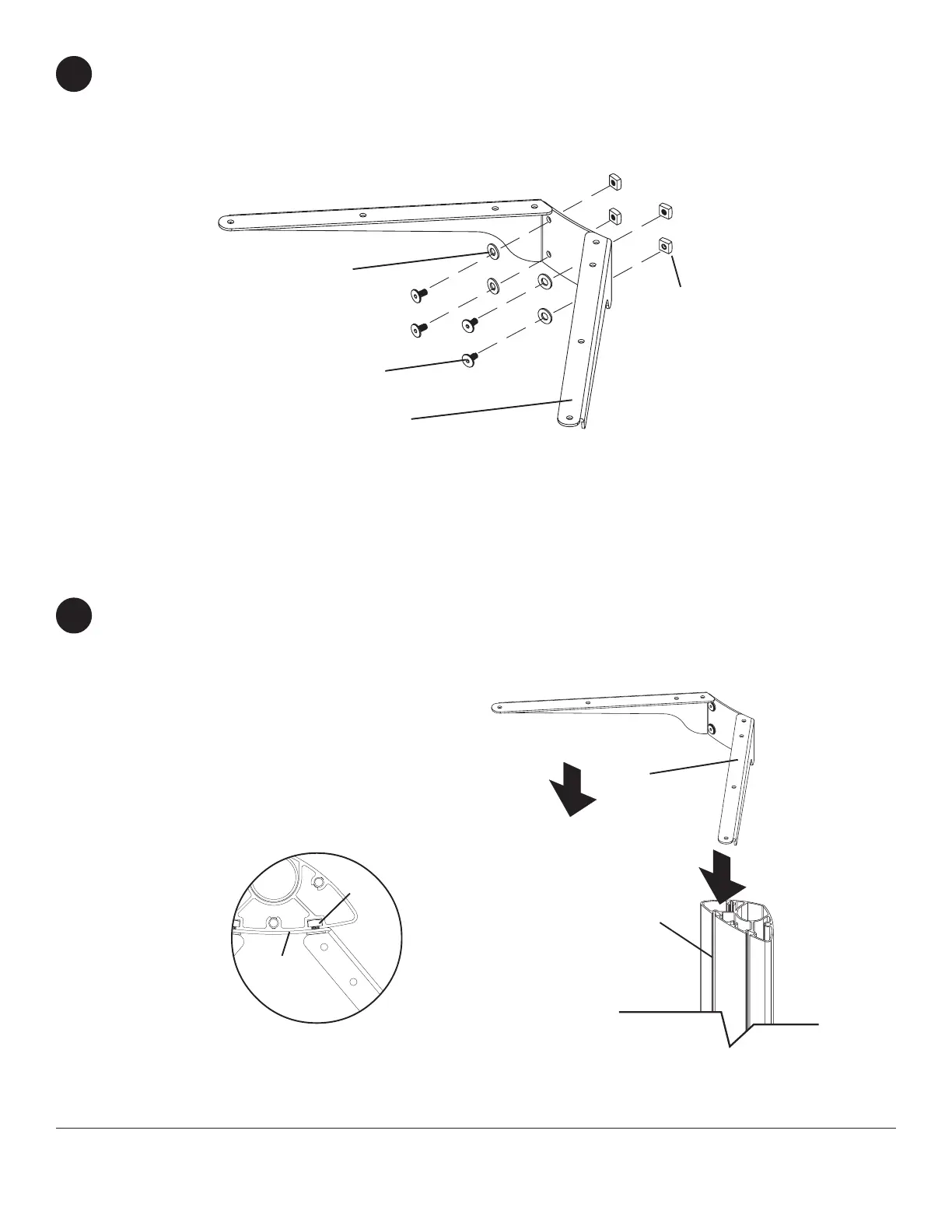

Loosely attach four 1/4-20 x 12 mm screws (I), washers (K), and 1/4-20 nuts (J) to shelf support (C).
5
Slide shelf support (C) onto upright (G) so that 1/4-20 nuts (J) slide into slots of upright (G) as shown in figure 6 and
detail 1. Slide shelf support to desired position, level, then tighten 1/4-20 x 12 mm screws (I) using 4 mm allen
wrench (N).
NOTE: MAXIMUM OF TWO SHELVES
Max height of top shelf is 34" from base.
Max height of second shelf is 28" from base.
J
G
DETAIL 1
6
SLOT
fig 6
C
C
I
K
J
