PEERLESS WV SERIES User Manual

20
BOILER DIMENSIONS & RATINGS
7. BOILER DIMENSIONS & RATINGS

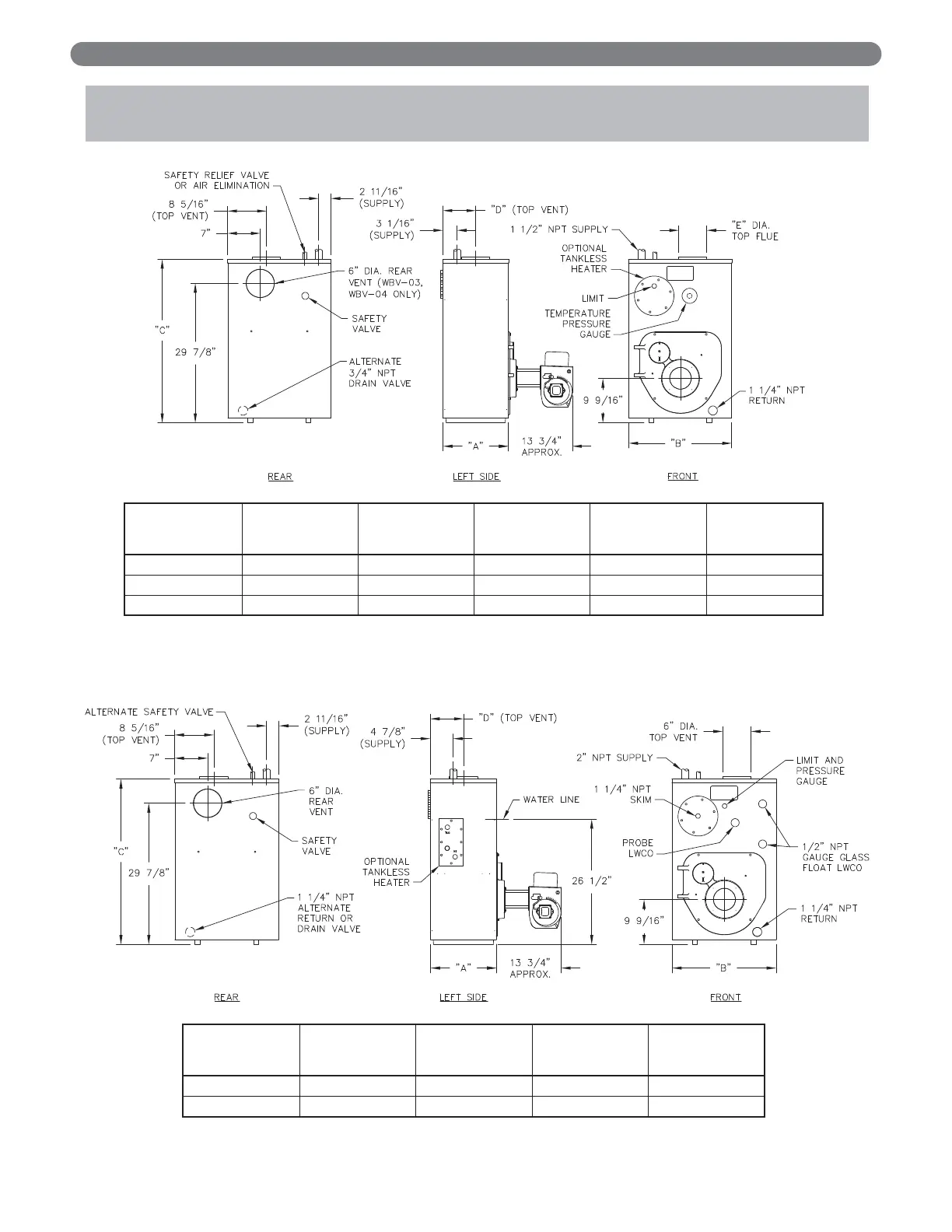

Figure 7.1: Boiler Dimensions, Water Boiler
Figure 7.2: Boiler Dimensions, Steam Boiler
Boiler
Model
Number
Jacket
Depth
"A"
Jacket
Width
"B"
Jacket
Height
"C"
Rear of Jacket
to c/l of Vent
"D"
Vent Size
Diameter
"E"
WBV-03-060/085/105
14-1/8" 22-1/8" 35" 7-1/16" 6"
WBV-04-095/125/150
18-1/8" 22-1/8" 35" 9-1/16" 6"
WBV-05-175/195
22-1/8" 22-1/8" 35" 11-1/16" 7"
Boiler
Model
Number
Jacket
Depth
"A"
Jacket
Width
"B"
Jacket
Height
"C"
Rear of Jacket
to c/l of Vent
"D"
WBV-03-085/105 15-3/4" 22-1/8" 35" 8-7/8"
WBV-04-125/150 19-3/4" 22-1/8" 35" 10-7/8"
