PEGAS SRP14-CE - Page 19

PART NO. DESCRIPTION SPECIFICATION QTY
1 Top Plate 1
2 Carriage Screw 5/16"x3/4" 4
3
Reinforcing Rib
2
4 Flat Washer 5/16"x18x2T 32
5 Hex Nut 5/16" 36
6 Leg 4
7 Lower Bracket (Long) 2
8 Carriage Screw 5/16"x1/2" 32
9 Lower Bracket (Short) 2
10 Foot Pad 4
11 Hex Screw 5/16"x2" 4
12 Flat Washer 5/16" 8
13 Flange Nut 5/16" 4

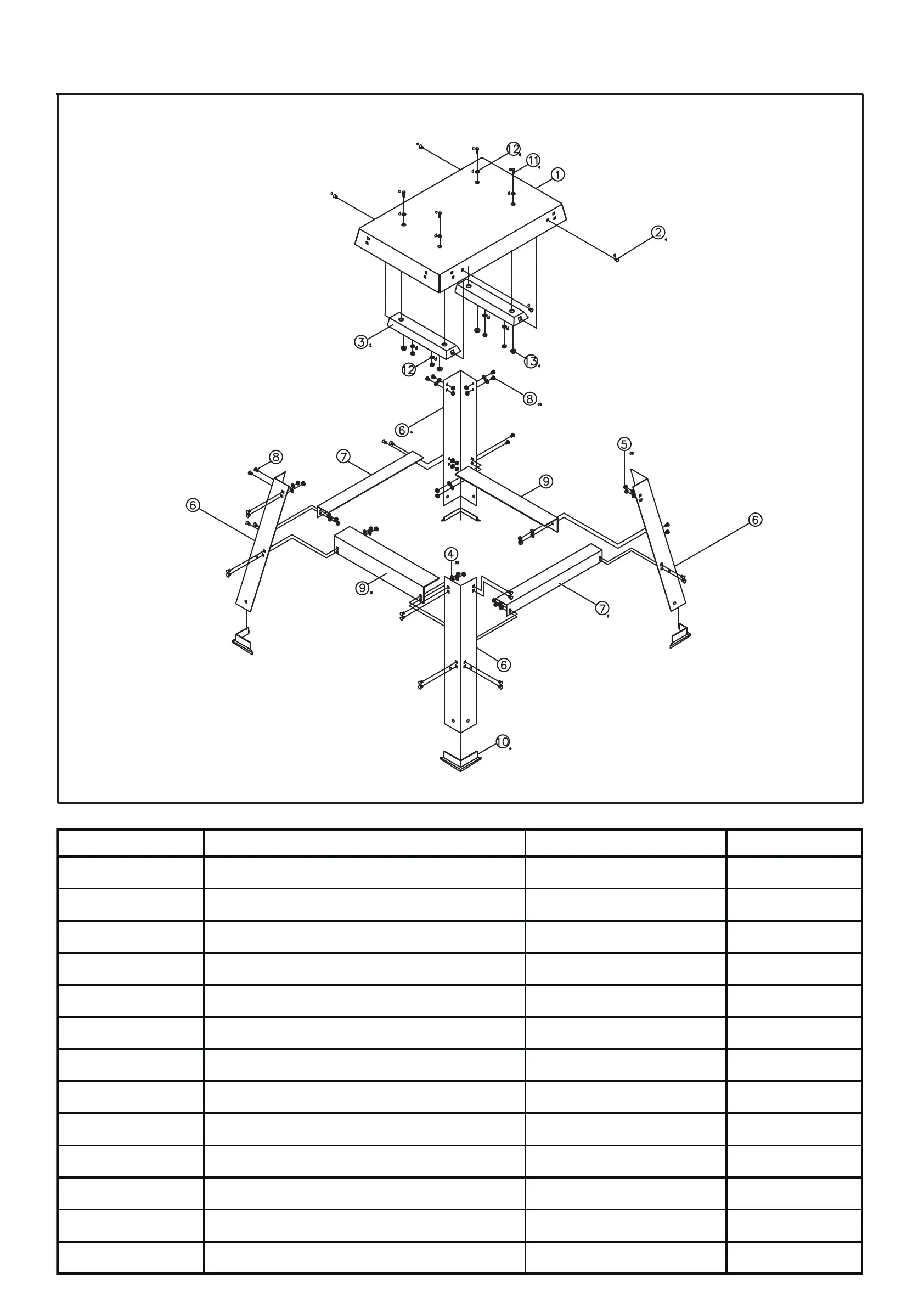

58MM STAND DIAGRAM
