USE AND MAINTENANCE MANUAL

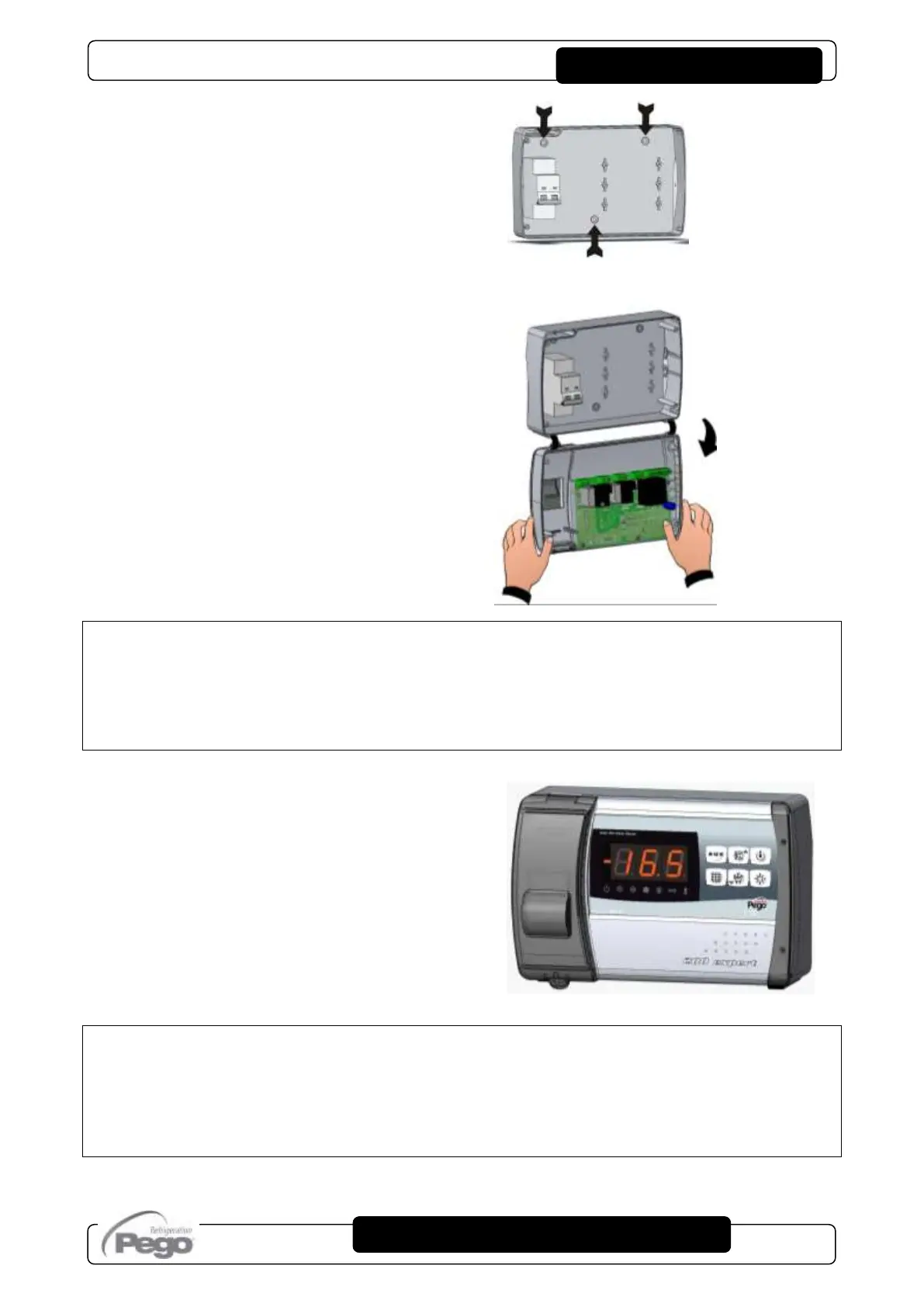

Fig. 6: Use the three existing holes to fix the
box back panel to the wall: use three
screws of a length suitable for the
thickness of the wall to which the
panel will be attached. Fit a rubber
washer (supplied) between each
screw and the box backing.
Fig. 7: Hook the frontal panel back up to the
lower part of the box by inserting the
two hinges in their seats and, bending
them, rotate downwards 180° to gain
access to the electronic board.
Make all the electrical connections as illustrated in the diagram for the corresponding
model (see relative table in APPENDICES). To make electrical connections reliably
and maintain the protection rating, use appropriate cable glands and pipepresses to
ensure a good seal. It is advisable to distribute the passage of the conductors inside
the panel as far as possible, in particular to keep the power leads away from the cables of the
signal. Use clips to hold wires in place.
Fig. 8: Close the front panel, making sure that
all the wires are inside the box and
that the box seal sits in its seat
properly.
Tighten the front panel using the 4
screws.
Power up the panel and carry out
thorough reading/programming of all
the parameters.
Be careful not to over-tighten the closure screws as this could warp the box and
compromise proper operation of the membrane-type keypad.
Install short-circuit overload safety devices on all the power cables connected to the
ECP202 EXPERT so as to prevent damage to the device. Work and/or maintenance
must ONLY be carried out on the unit after disconnecting the panel from the power supply and
from any inductive/power loads: doing so allows the worker to do his job safely.
