Pella 6000 - Final Door Adjustments and Operation; Bottom Expander Adjustment and Trim Installation

Angled Edge
Points Away
From Door
Insert Angled
Edge
S
n
a
p
i
n
P
l
a
c
e
A
d
j
u
s
t
Sweep
Sill
Loosen to Adjust,
then Retighten
Set
In
Place
S
P
Horizontal
Retainer
Strip
Install
Both
Top
and
Bottom
Horizontal Strips
Go In First
Vertical
Retainer
Strip
Install Both
Left and
Right
Continued
from page 9
34
35
Hint: With the angled edge in place, run your finger down the length of the inner edge to snap in place.
10

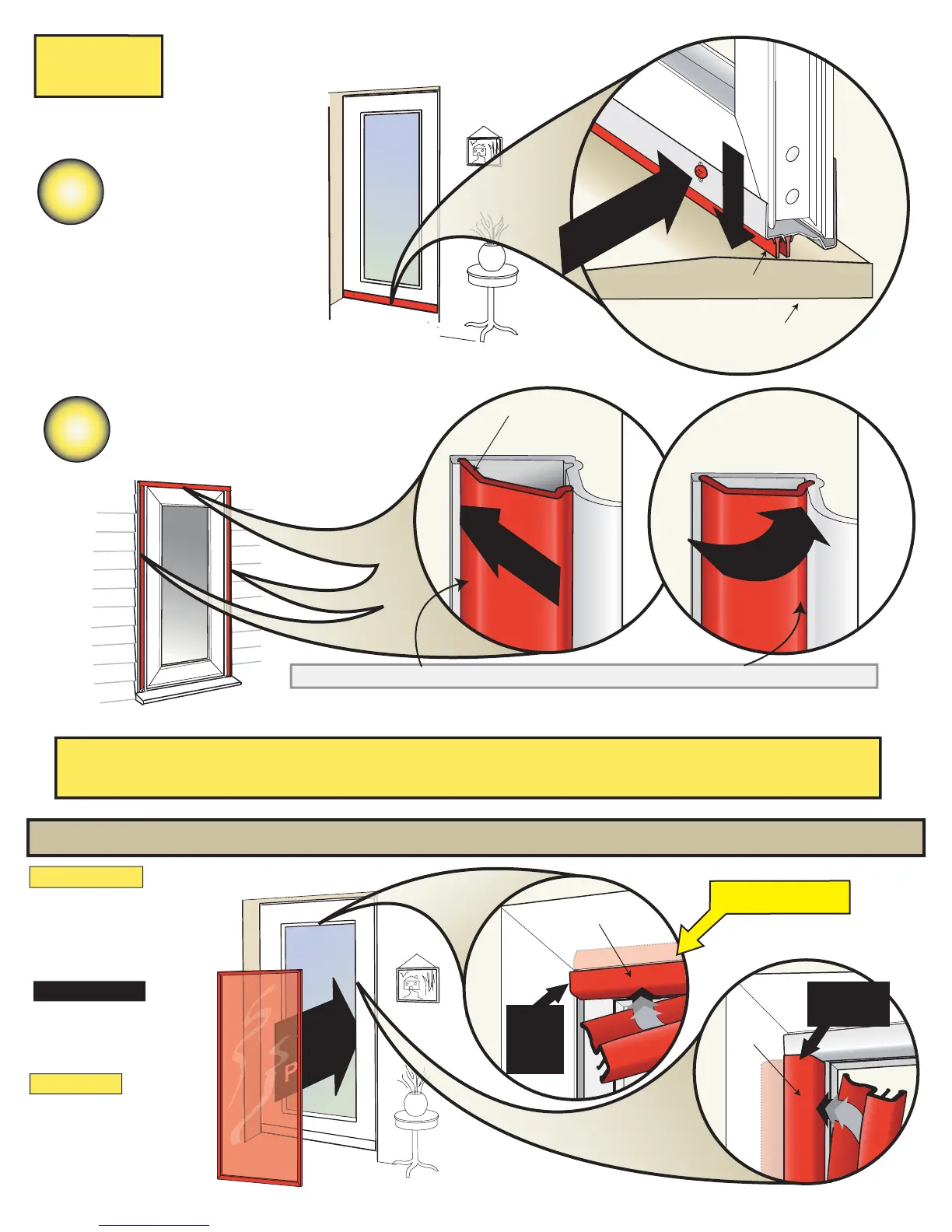

Install screw cover strips
(1 Horizontal, 2 Vertical).
Close door.
Adjust boom
expander to lightly
contact the sill.
Glass or Screen Operation
To Install:
Hold the glass or
screen in place and
insert the top then
boom horizontal
strips first, then the
verticals.
To Remove:
Remove the vertical
strips first, then the
horizontals, by pulling
the corners away from
the door frame.
IMPORTANT: Hold
the glass in place
before removing the
top retaining strip.
Finished
with the installation. See page 11 for care and maintenance.
