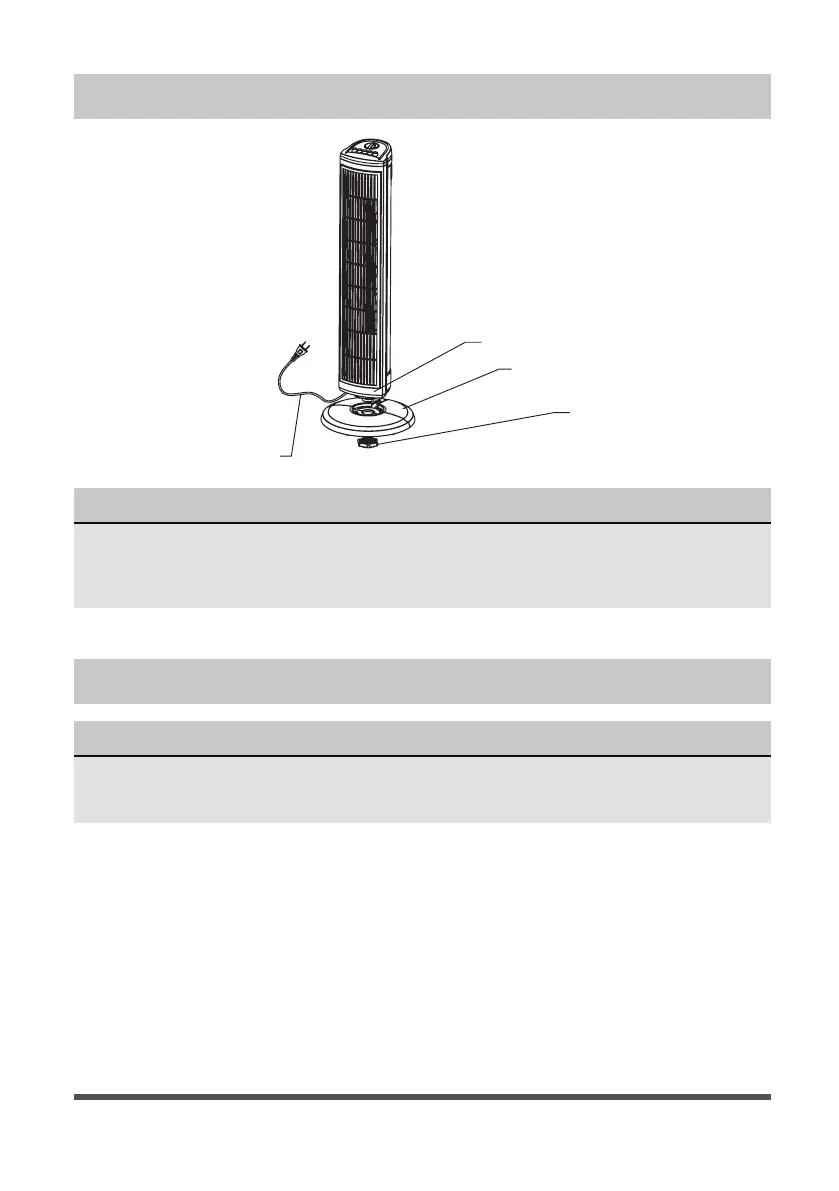

PARTS AND FEATURES
PARTS ASSEMBLY
NOTICE
All the pictures in this manual are for explanation purpose only. Any
discrepancy between the real object and the illustration in the drawing
shall be subject to the real subject.
(1) Tower Fan
(5) Power cord
(2) (3) Support Base
(4) Base Clip
1. Pull power cord (5) out slightly.
2. Assemble the front and rear base components (2) and (3) to form a
round base plate assembly.
3. Install the base plate assembly (2+3) to the bottom of the body (1) with
power cord retaining clip on the back side of the fan body. Attach using
base clip (4).
4. Slide the power cord under the clip on the rear base plate (2).
NOTICE
Please place the machine on the package foam or other soft surfaces
and invert it to avoid scratch mark when install the base.
