Replacement Parts
Replacement Parts

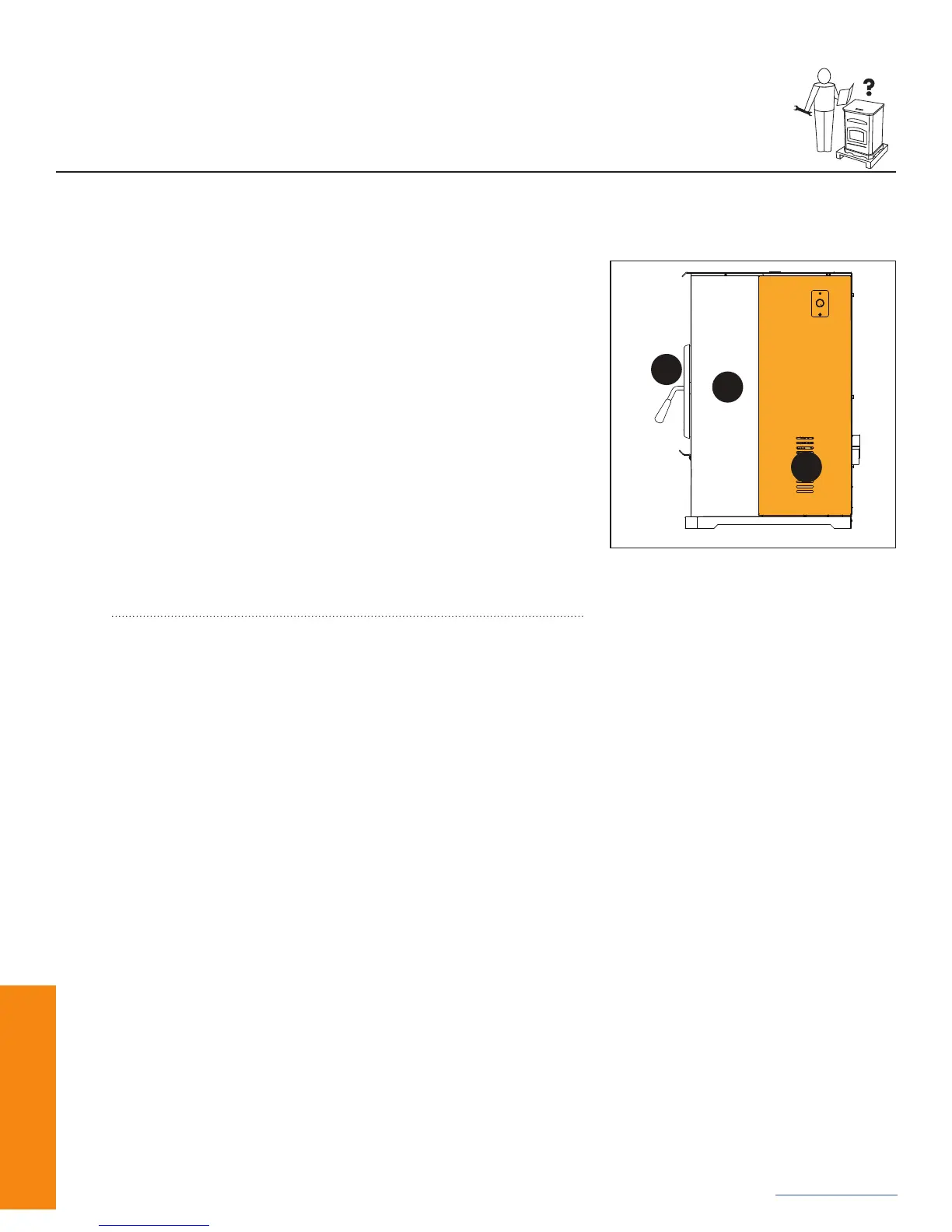

1
Zone
1
Zone
2
Zone
2
Zone
3
Zone
3
Zone
Combustion Blower
1. Turn the dial control to the o position. Unplug the
power to the appliance.
2. The convection blower is located in the rear of the
appliance.
3. Using a Phillips head screwdriver, loosen the bolts
on the rear of the appliance holding on the side
panels. You do not need to remove the screws.
Removed side panels by lifting up and out.
4. Remove the two screws holding the convection
blower housing to the sheet metal plenum. Using a
slight twisting motion, rotate the blower back and it
will release.
Replacement kit: KS-5020-1052
Exhaust Blower
1. Turn the dial control to the o position. Unplug the power to the appliance.
2. Remove the left side panel by loosening the three screws attaching it to the back of the
appliance.
3. Disconnect 2 white wires from the white and blue wires of the exhaust blower.
4. Remove the blower motor attached to a removable plate to the exhaust blower. Depending
on the model, use a 1/4 inch socket, or 1/4 inch nut driver or Phillips head screwdriver to
loosen the 6 screws in the keyhole shaped holes and rotate the plate. It is only necessary
to loosen screws.
5. Remove the exhaust blower and gasket.
6. Check for degradation on the gasket and replace if necessary using the gasket included in
the kit.
7. Re-install in reverse order.
Replacement kit: 812-4400
Zone 3 - Back of Stove
To Next Page
