Installing Your Stove
Installing Your Stove
Installing Your Stove Installing Your Stove

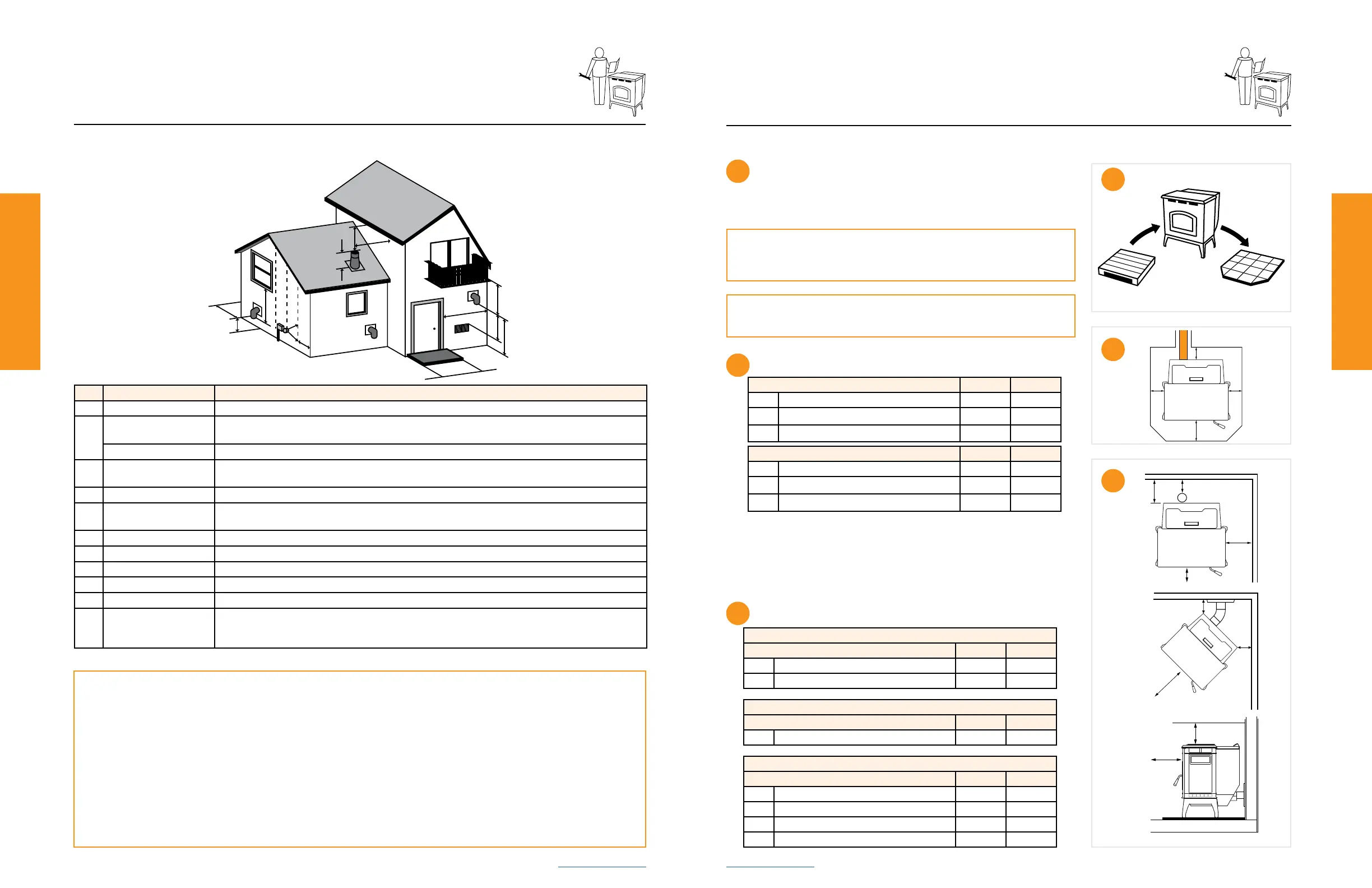

Vent Termination Clearances
A
D
B
L
C
K
J
B
I
H
G
F
Clearances
A 12” Clearance above grade, veranda porch, deck or balcony (Including vegetation and mulch)
B
12” with outside air kit
48” no outside air kit
Clearance beside or below any windows or doors that open
12”* Clearance above any window or door that opens
C 18”
Vertical clearance to ventilated soft located above the terminal within a horizontal distance of 2 feet from
the center line of the terminal
D 12” Clearance to an outside corner wall
F
12” with outside air kit
48” no outside air kit
Clearance to a non-mechanical air supply inlet to the building or a combustion air inlet to any other Stove
G 36” Clearance to a mechanical air supply inlet
H 84”** Clearance above a paved sidewalk or paved driveway located on public property
I 12”** Clearance under a veranda, porch, deck or balcony
J 12” Clearance above the roof
K 24” Clearance from an adjacent wall including neighboring buildings
L
36” within a height of 15
feet above the meter /
regulator assembly
Clearance to each side of center line extended above natural gas or propane meter / regulator assembly
or mechanical vent
Notice:
Do NOT terminate vent:
• In any location that will allow ue gases or soot from
entering or staining the building
• In any location which could create a nuisance or hazard
• In any enclosed or semi-enclosed area such as a
carport, garage, attic, crawl space, under a sun deck or
porch or narrow walkway
• Closely fenced area, or any location that can build up
a concentration of fumes such as a stairwell, covered
breezeway, etc.
Notice:
Do NOT terminate below an air inlet.
• It is recommended that at least 60” (1.52m) of vertical
pipe be installed when Stove is vented directly through
a wall—this will create a natural draft, which will help
prevent the possibility of smoke or odor venting into the
home during a power outage
• It will also keep exhaust from causing a nuisance or
hazard by exposing people or shrubs to high tempera-
tures
• The safest and preferred venting method is to extend
the vent vertically through the roof or above the roof
*Recommended to prevent condensation on windows and thermal breakage. **This is a recommended distance. For additional requirements check local codes.
Conrm required clearances to combustibles:
Notice: Be careful to protect the bottom of the Stove and oor sur-
faces when moving the Stove. Bottom edges of Stove are sharp
and can scratch surfaces.
1
1
2
3
Vertical Installations (Interior Flue)
Straight back against wall Inches mm
D Back wall to pellet pipe 3 76
E Side wall to Stove 13 330
USA Hearth Pad Requirements Inches mm
A Sides 2 51
B Back 2 51
C Front 6 152
Horizontal Installations
Straight back against wall Inches mm
G Back wall to Stove 2 51
E Side wall to Stove 13 330
H Clearance to top of Stove 7 178
J Clearance to front of Stove 48 1219
Corner Installation
Straight back against wall Inches mm
F Walls to Stove 3 76
2
B*
A
C
A
Placing Your Stove
Stove must be installed on a non-combustible oor. If need-
ed, place oor protection (such as a hearth pad) beneath the
Stove. Move Stove from pallet onto your non-combustible sur-
face. Do not operate the Stove while it sits on the pallet.
Hearth pad minimum requirements:
Notice: Clearances may only be reduced by means approved by
the regulatory authority having jurisdiction.
Non-combustible oor protection extending beneath the ue pipe is required
with horizontal venting or under the top vent adapter with vertical installation.
*Non-combustible oor protection must extend 2 inches (51mm) beneath the
ue pipe when installed horizontal venting or under the top vent adapter with
vertical installation. CANADA REQUIRED, USA RECOMMENDED.
3
G
E
D
J
F
F
J
H
J
Canada Hearth Pad Requirements Inches mm
A Sides 8 203
B Back 2 51
C Front 6 152
