Pelpro TSC90 - Pellet Venting Installation

PelPro Cast Pellet Stove • 7093-600J • 04/21 PelPro Cast Pellet Stove • 7093-600J • 04/21pelprostoves.com pelprostoves.com12 13
Using Your Stove
Using Your Stove
Installing Your Stove
Installing Your Stove
Pro Tip
Installing a clean-out “T” (sold separately) to the rear
of your Stove, when venting vertically can save time during cleaning.
Install outside air kit (included)
For optimal performance, PelPro recommends the outside air kit
for all installations. Outside air kit is required for all mobile/manu-
factured home installations.
Install through wall
B
• Maintain clearances from exhaust
• Remove knock out in the rear of Stove
- Attach ex pipe to outside air connection on Stove
- Use hose clamp
- Route tube outside the structure
- Attach cap
- Secure to outside wall with appropriate fasteners
Take a Break
6
B
CAUTION!
Never draw outside combustion
air from:
• Wall, oor or ceiling cavity
• Enclosed space such as an
attic, garage or crawl space.

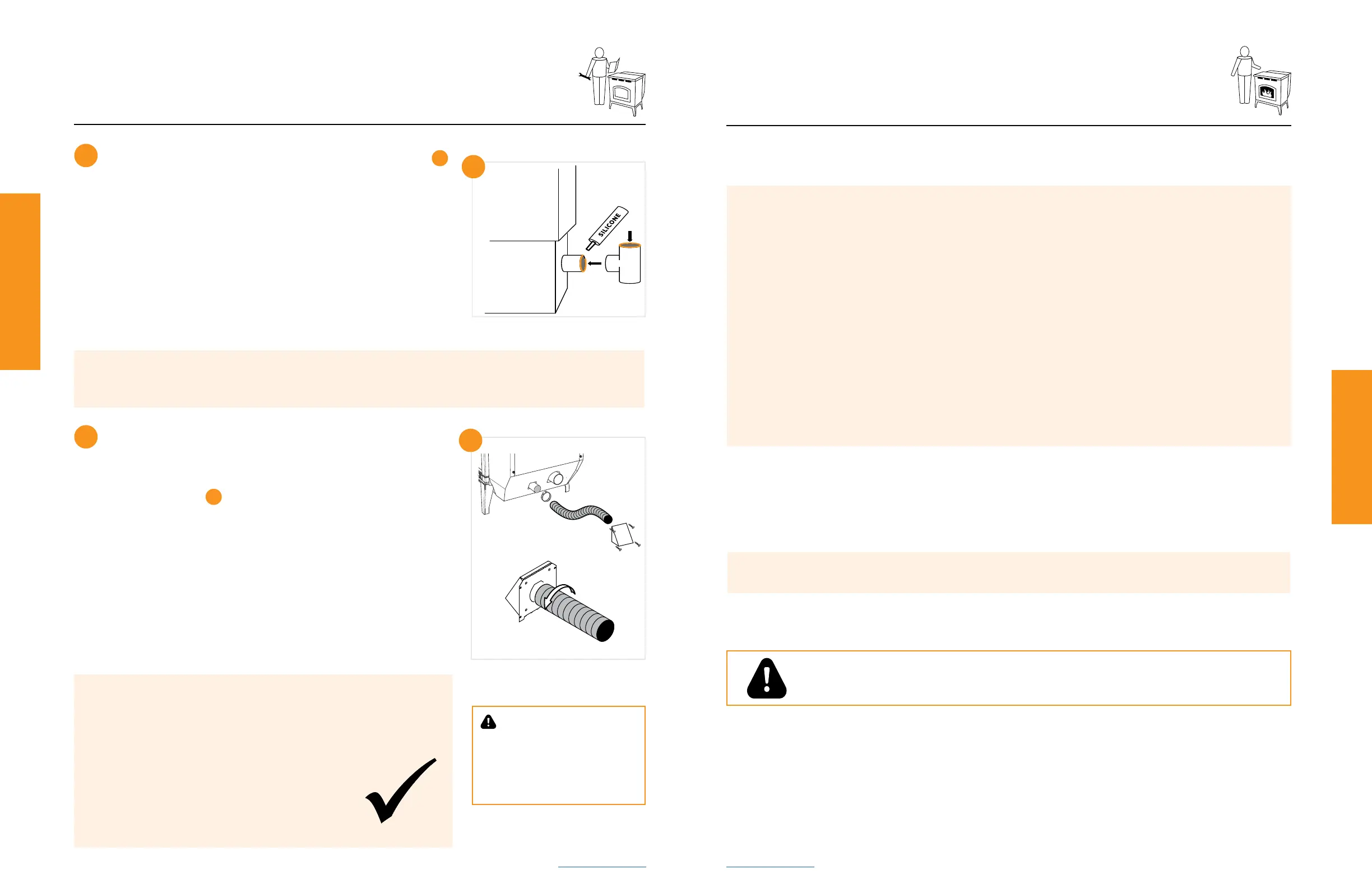

Install pellet venting through wall and connect vent/pipe to Stove
A
• Some venting manufacturers offer pellet Stove adapters for their
venting for easier installation
• Seal all pipe joints using high-temp silicone (500°+)
• Secure exhaust venting system to the Stove with at least 3 screws
or rivets per the pipe manufacturer’s instructions. Also secure all
connector pipe joints with at least 3 screws through each joint.
• Install termination cap
• Conrm all required Stove clearances to combustibles
A
5
Inspect your work:
_____ Conrm clearances to combustibles are maintained
_____ Pipe joints are secure and properly sealed
_____ Outside air kit installed properly
_____ Conrm termination clearances
Using Your Stove
Fuel Material and Fuel Storage
Pellet fuel quality can greatly uctuate. We recommend that you buy fuel in multi-ton lots whenever possible.
However, we do recommend trying various brands before purchasing multi-ton lots to ensure your satisfac-
tion. Store fuel in dry location not within clearances to combustibles of your Stove.
Fuel Material
• Made from sawdust or wood by-products
• Depending on the source material it may have a high or low ash content.
Higher Ash Content Material
• Hardwoods with a high mineral content
• Fuel that contains bark
• Standard grade pellets or high ash pellets
Lower Ash Content Material
• Most softwoods
• Fuels with low mineral content
• Most premium grade pellets
Fuel Tips
Pro Tip
We recommend the use of Pellet Fuels Institute certied pellet fuel with this product.
Your Stove has a manufacture-set minimum low burn rate that must not be altered. It is
against federal regulations to alter this setting or otherwise operate your Stove in a manner
inconsistent with operation instructions in this manual.
