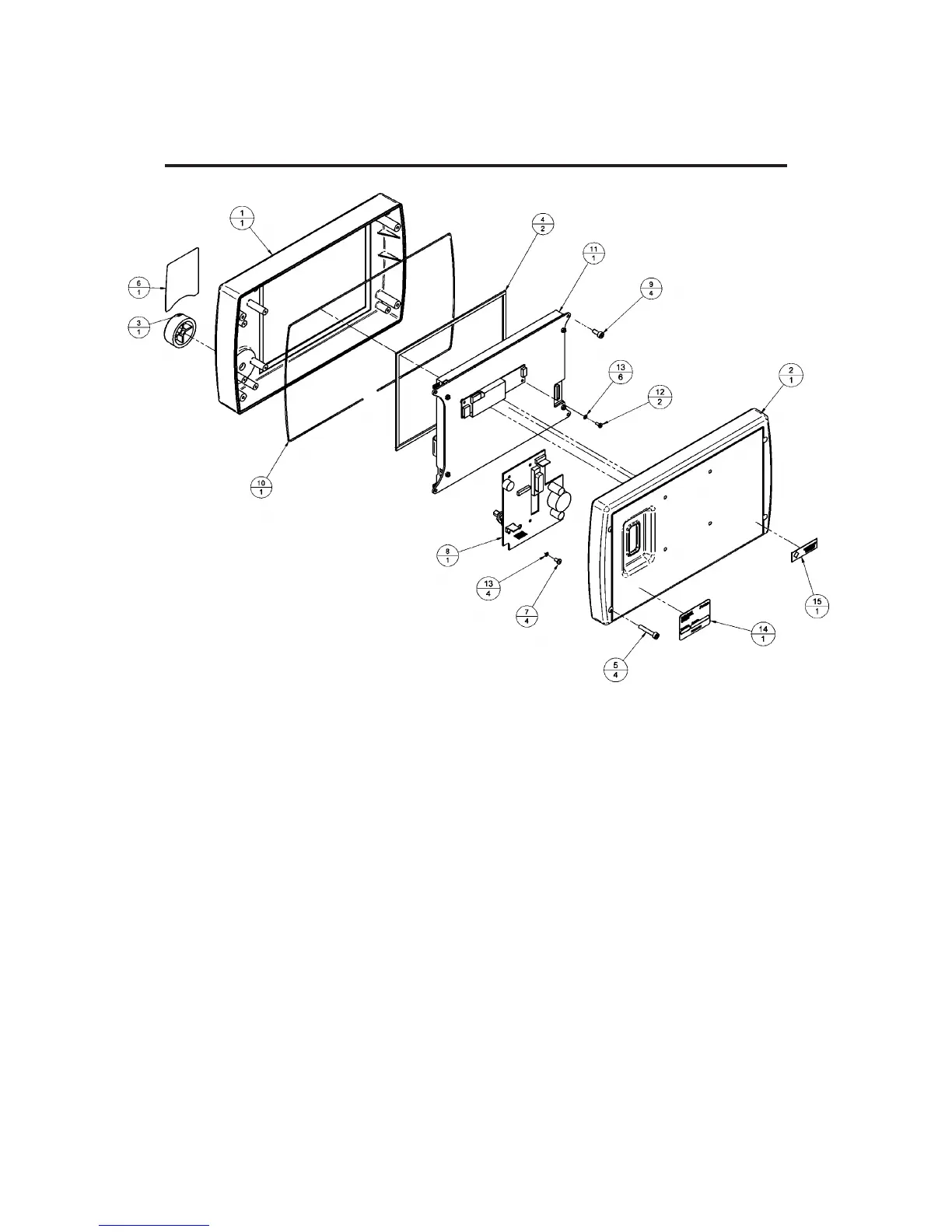

Display Screen Assembly
Item Part No. Description Quantity
1* 300540 Front Moulding 1
2* 300541 Rear Cover 1
3 300575 Spinner Ø38 mm 1
4 300573 Gasket 2
5* 01253 M4 X 25 SKT HD Cap 4
6 300550 Membrane Switch + LED’s 1
7 019122 M3 X 6 LG Button HD 4
8 300516 LVDS Encoder Assembly 1
9 01013 M4 X 10 SKT HD Cap 4
10 300547 ‘O’ Ring Cord 1
11 300524 TFT Sub Assembly 1
12 01059 M2.5 X 6 CH HD 2
13 025606 M3 Fibre Washer 6
14 15056 Product Label 1
15 15446 Warranty Label 1
PARTS LIST
66
