Penn System 450 Series Installation Instructions

System 450™ Series Control Modules with Analog Outputs Installation Instructions
25
Backlight High Level: The high level defines the brightness when you are making configuration changes
to the control and interacting with the UI. The backlight high level can be set to values 1–10; it cannot be
turned completely off.
3. Press or to select the backlight brightness high level value. Press
to save your selection
and return to the Backlight Setup Start screen.
The screen example shows the Backlight high level set to 10.
Backlight Setup Start Screen
After you have set up the backlight brightness level, you can go to the Sensor Setup Start screen, or return
to the Main screens.
4. Press to return to the Sensor Setup Start screen, or press and simultaneously to return
to the System 450 Main screens.
The screen example shows the Backlight Setup Start screen.

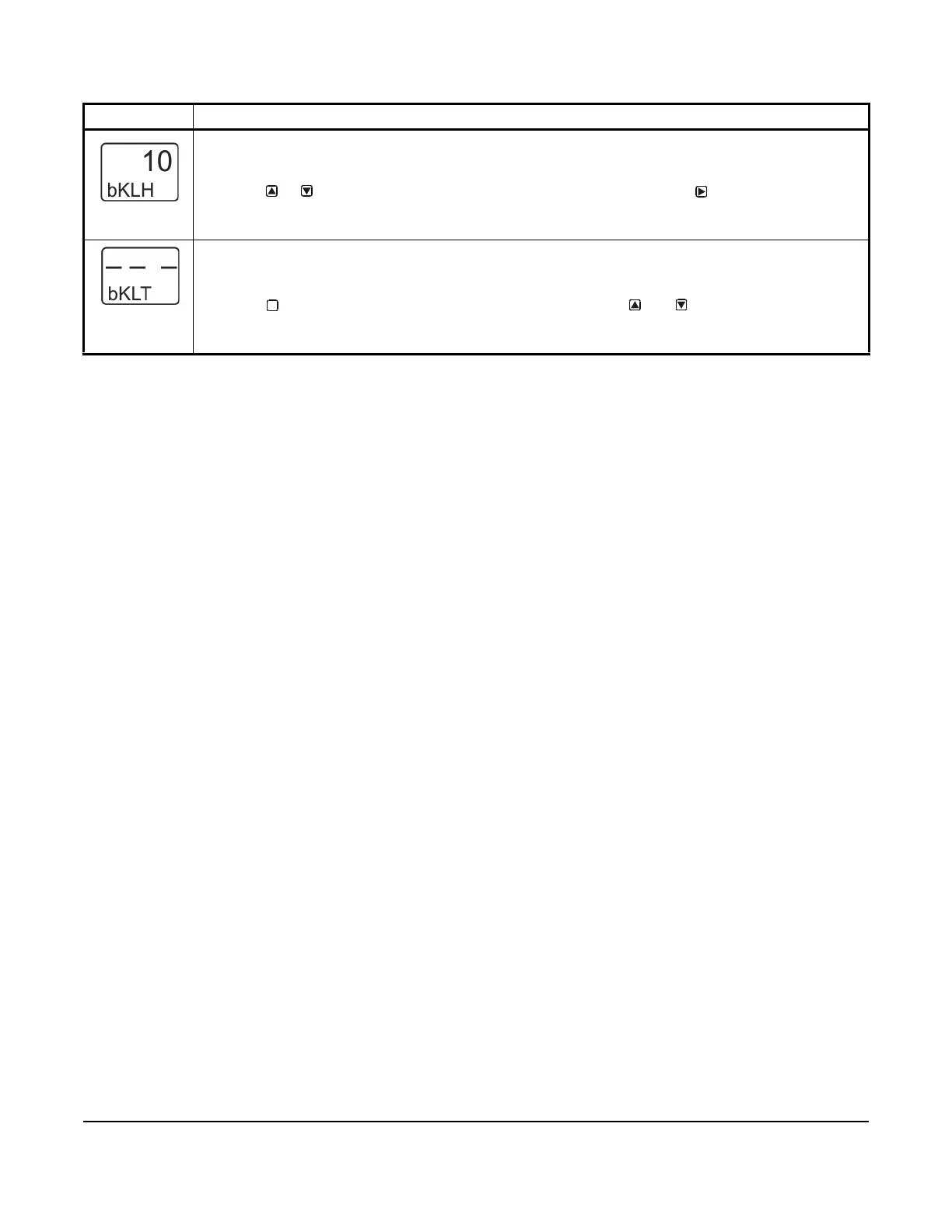

Table 11: System 450 Setup Screen Information and Procedures for Backlight Brightness (Part 2 of 2)
LCD Screen Name, Description/Function, User Action, and Example
