PENNBARRY
22
HP RPM
TIP
SPEED
(FPM)
FAN CAPACITY - CUBIC FEET PER MINUTE (CFM)
0.000" SP 0.100" SP 0.125" SP 0.200" SP 0.250" SP 0.375" SP 0.500" SP 0.625" SP
Sones BHP Sones BHP Sones BHP Sones BHP Sones BHP Sones BHP Sones BHP Sones BHP
3/4
800 5236
7156 6506 6322 5734 5244
12.9 0.432 13.3 0.464 13.1 0.473 12.4 0.505 11.9 0.527
830 5432
7424 6797 6631 6064 5623
13.6 0.482 14.1 0.515 13.9 0.524 13.3 0.557 12.9 0.580
860 5629
7692 7088 6936 6391 5997
14.4 0.536 14.9 0.571 14.8 0.579 14.2 0.613 13.8 0.636
1
935 6120
8363 7807 7668 7192 6857 5814
16.7 0.689 17.4 0.727 17.3 0.736 16.8 0.770 16.3 0.794 15.5 0.862
945 6185
8453 7902 7765 7298 6966 5973
17.1 0.711 17.7 0.750 17.7 0.759 17.2 0.793 16.7 0.817 15.9 0.882
955 6250
8542 7997 7861 7403 7075 6103
17.4 0.734 18.1 0.773 18.2 0.782 17.6 0.816 17.2 0.841 16.3 0.906
965 6316
8632 8093 7958 7508 7183 6232
17.7 0.757 18.5 0.796 18.6 0.806 18.1 0.840 17.6 0.865 16.7 0.931
975 6381
8721 8188 8054 7612 7291 6361
18.1 0.781 18.8 0.821 19 0.830 18.5 0.864 18.1 0.890 17.1 0.956
985 6447
8810 8282 8150 7717 7399 6488
18.5 0.805 19.2 0.845 19.3 0.855 19 0.889 18.6 0.915 17.6 0.981
1 1/2
1010 6610
9034 8519 8390 7976 7666 6805 5535
19.3 0.868 20 0.909 20 0.919 20 0.953 19.7 0.979 18.9 1.047 18.8 1.154
1030 6741
9213 8708 8582 8183 7879 7056 5879
20 0.921 21 0.963 21 0.973 21 1.006 21 1.03 19.9 1.102 19.7 1.202
1050 6872
9392 8897 8773 8389 8090 7304 6218
21 0.976 22 1.018 2 1.029 22 1.062 22 1.089 21 1.159 21 1.251
1070 7003
9571 9085 8963 8594 8300 7550 6553
22 1.033 23 1.076 23 1.087 24 1.119 24 1.147 24 1.218 24 1.302
1090 7134
9750 9272 9153 8795 8510 7791 682
23 1.092 24 1.136 25 1.147 25 1.179 25 1.207 25 1.279 26 1.354
1110 7265
9929 9460 9343 8991 8718 8012 7141
25 1.153 26 1.198 26 1.209 26 1.242 26 1.270 26 1.342 27 1.419
1128 7383
10090 9628 9513 9167 8905 8211 7372 6167
25 1.210 26 1.255 27 1.267 27 1.301 27 1.328 27 1.401 28 1.478 27 1.609
Galv. Panel = 16 gauge Wall Opening = 32 3/4 in.sq. Peak BHP = (RPM/962)^3
Galv. Mtr. Plate = 12 gauge Est. Shipping Weight = 130 lbs. Max RPM = 1216 (1.5 HP)
Galv. Structure = 12 gauge Max. Motor Frame Size = 184T
3
5
26
25
1
/
2
32
32

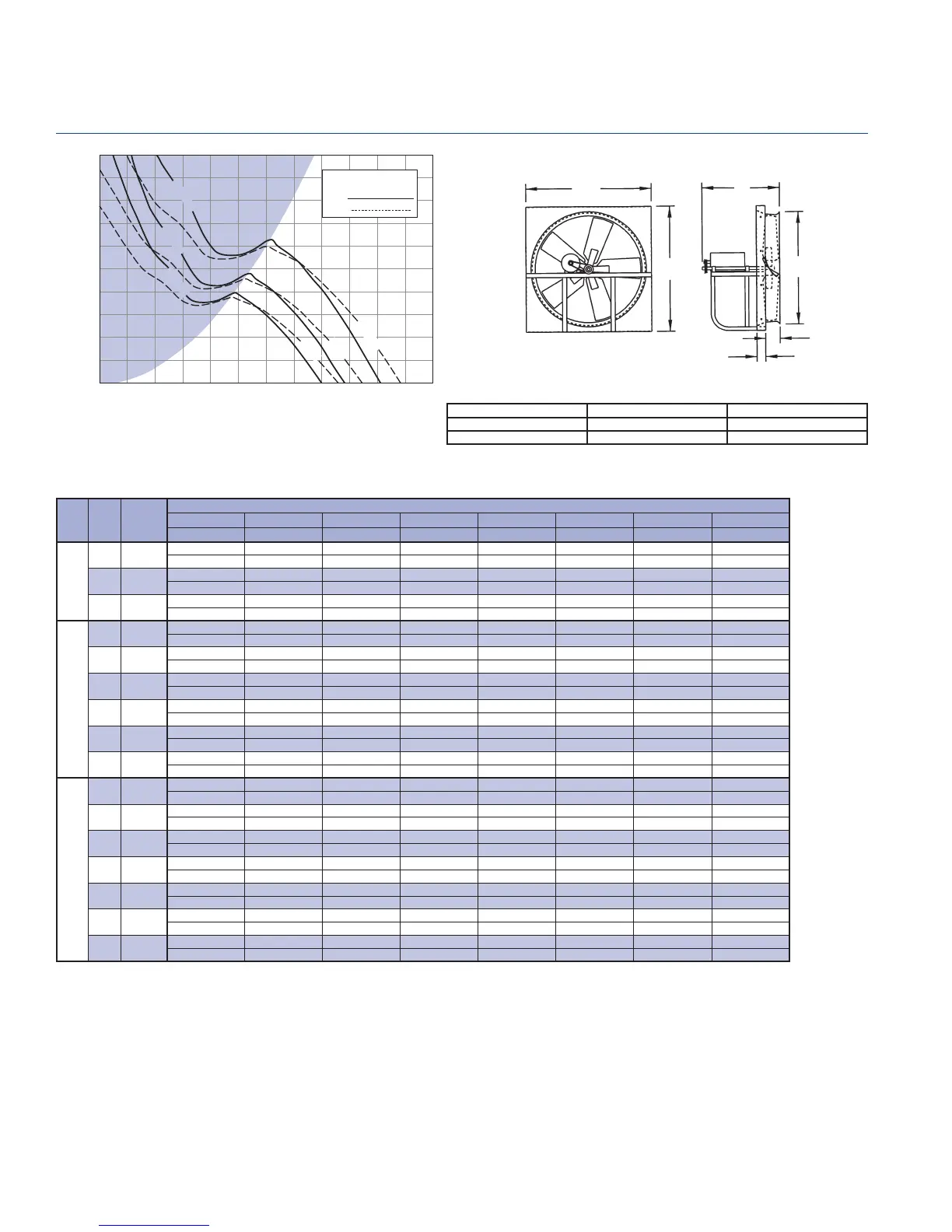

BHH 24B - Belt Drive Fan Data
Breezeway
AIR FLOW - CFM
STATIC PRESSURE - Inches W.G.
Performance shown is for installation Type A: Free Inlet, Free Outlet. Power rating (BHP) does not include drive losses. The sound ratings shown are for loudness values
in fan sones at 5'0" (1.5m) in a hemispherical free fi eld per AMCA standard 301. Values shown are for installation Type A: Free inlet fan sone levels. Performance ratings
do not include the effects of appurtenances in the airstream. For further information on sound classifi cation, see page 40. For accessories, see pages 3 thru 7.
0
2000 4000 6000
8000 10000 12000
3/4 HP
RPM
BHP
1 HP
860 RPM
985 RPM
1128 RPM
0.400
0.500
0.600
0.700
0.800
0.900
1.000
0.000
0.200
0.300
0.100
1 1/2 HP
Do not select shaded area.
To Next Page
