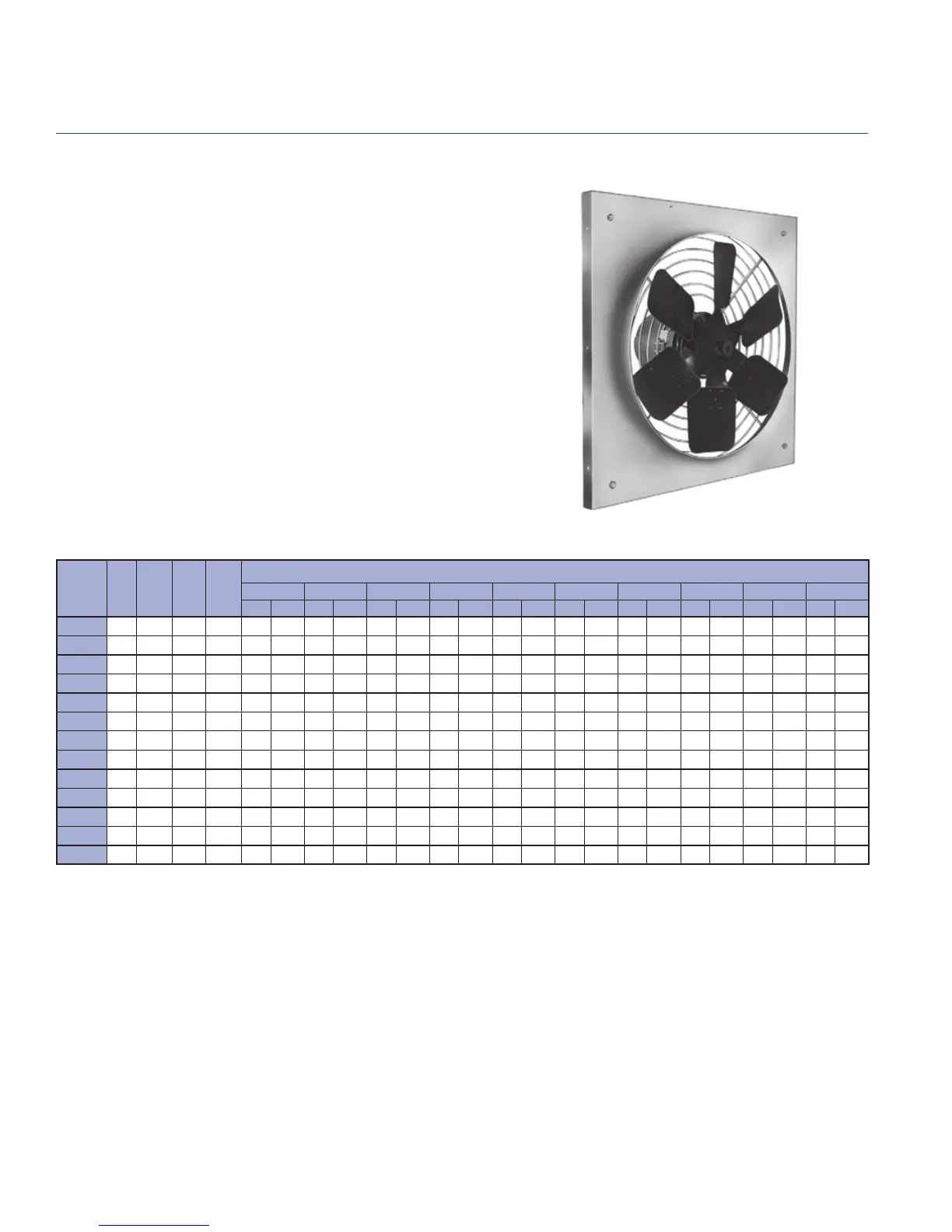

PennBarry Breezeway - Performance Data

PENNBARRY
12
P Series
Features:
• Exhaust or supply
• Continuous duty, PSC motors
• Zinc-coated wire guard designed to OSHA specifi cations
• Integral spun steel venturi with welded corners
• Statically and dynamically balanced, die-formed aluminum
propeller with steel hub
• Integral vibration isolators
• Wide variety of available motors (Check Motor Availability
Chart – Page 9)
Performance shown is for installation Type A: Free Inlet, Free Outlet. Speed (RPM) shown is nominal. Performance is based on actual speed of test. The sound
ratings shown are for loudness values in fan sones at 5’0” (1.5m) in a hemispherical free fi eld per AMCA Standard 301. Values shown are for Installation Type A:
free inlet fan sone levels. Performance ratings include the effect of backguard in the airstream. For models shown on this page, the AMCA Certifi ed Ratings Seal
applies to air and sound. For further information on sound classifi cation, see page 40. For accessories, see pages 3 thru 7.
MODEL HP
MAX
WATTS
RPM
TIP
SPEED
(FPM)
FAN CAPACITY IN CUBIC FEET PER MINUTE (CFM)
0.000" SP 0.100" SP 0.125" SP 0.150" SP 0.200" SP 0.250" SP 0.300" SP 0.375" SP 0.500" SP 0.625" SP
CFM SONES CFM SONES CFM SONES CFM SONES CFM SONES CFM SONES CFM SONES CFM SONES CFM SONES CFM SONES
P10VA 1/30 80 1050 2749 753 4.6 531 7.5 457 7.9 385 7.2 239 6.7
P10RA 1/12 115 1550 4058 841 5.8 699 6.5 631 7.3 570 8.5 486 10.8 425 12.5 387 12.9 321 13.2
P12VA 1/12 147 1050 3299 1343 10.7 1177 9.5 1123 9.9 1057 10.5 874 11.1 689 10.1 433 10.0
P12RA 1/4 174 1550 4869 1489 10.3 1367 9.8 1326 10.1 1281 10.5 1160 11.7 1046 13.2 882 15.5 798 16.9 568 19.6 210 20
P16VA 1/3 463 1050 4398 2546 9.1 2088 8.8 1859 8.7 1699 8.6 1257 8.3
P16SA 1/2 550 1300 5445 3143 13.7 2933 14.0 2856 14.1 2758 14.3 2495 14.6 2244 15.0 1982 15.3 1671 15.4
P16RA 1/2 724 1550 6492 3555 14.0 3301 14.1 3256 14.1 3211 14.2 3102 14.5 2955 15.3 2736 16.9 2514 18.3 1979 20 1772 21
P16Q1A 3/4 962 1650 6911 3760 16.3 3557 16.6 3508 16.7 3459 16.7 3358 16.9 3256 17.1 3123 17.6 2864 18.9 2369 22 2032 24
P18VA 1/2 522 1050 4948 4210 15.2 3845 15.1 3768 15.1 3661 15.1 3370 15.3 3030 15.1 2719 13.6 2215 13.1
P18RA 3/4 1265 1550 7304 5233 20 4971 21 4971 21 4919 21 4787 22 4633 23 4383 25 4029 28 3547 35 3083 34
P20TA 3/4 815 1140 5969 4852 16.2 4449 16.4 4318 16.5 4185 16.7 3898 17.1 3570 17.7 3278 18.4 2717 20 1969 24 1200 25
P20SA 1 1415 1300 6807 6063 22 5786 22 5692 21 5597 21 5397 21 5149 21 4835 21 4466 21 3909 22 3121 23
P24VA 3/4 1117 1050 6597 6562 14.6 6210 14.6 6136 14.7 6063 14.7 5917 14.7 5758 14.9 5576 15.2 5249 15.8 4065 19.3 3654 21
Direct Drive Fan Data
Breezeway
Performance Data
