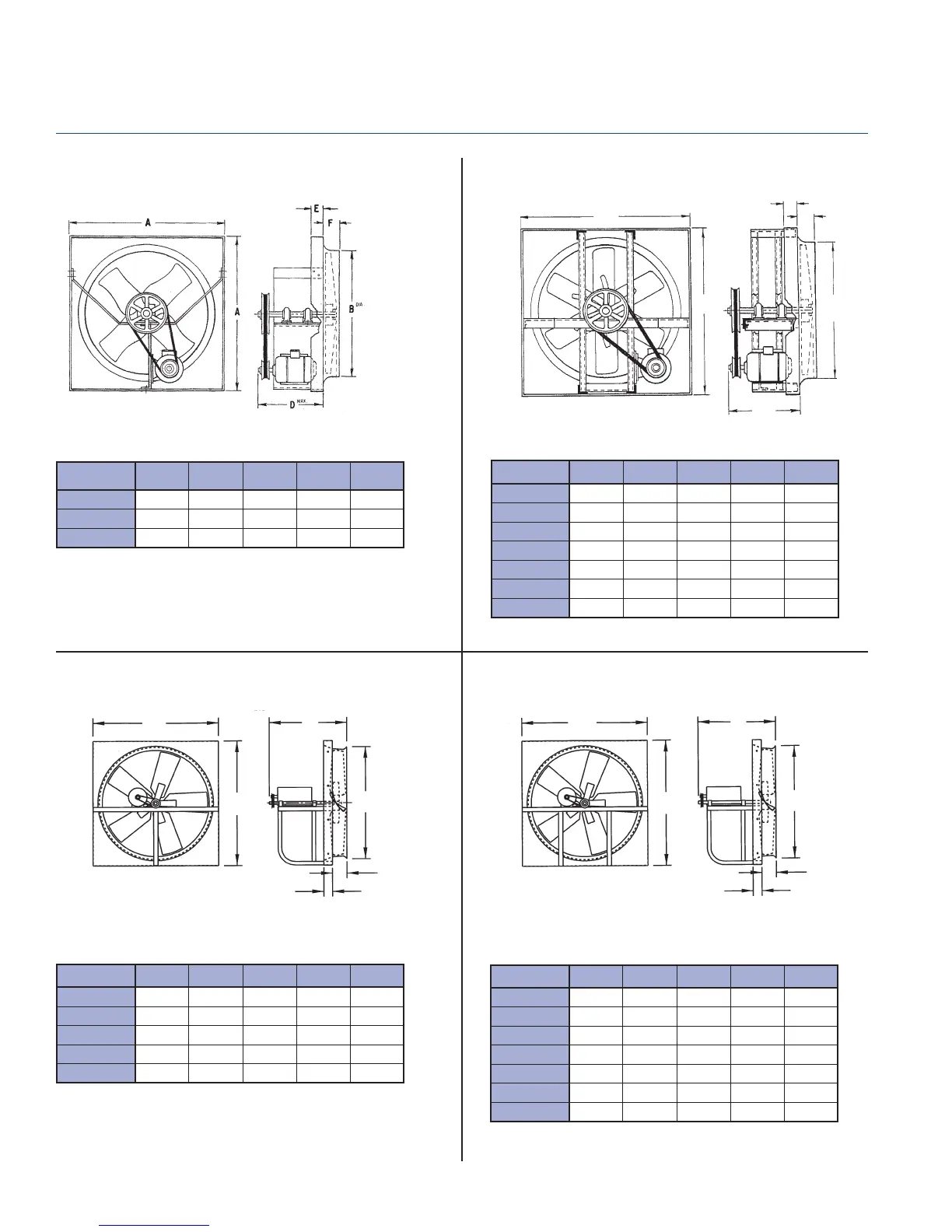

PennBarry Breezeway - Belt Drive Dimensional Data

PENNBARRY
16
MODEL A B
DIA.
D
MAX.
EF
BLL24 28 25 16 3 3
BLL30 34 31 18 2 1/2 3
BLL36 40 37 20 3 4 3/4
MODEL A B
DIA.
D
MAX.
EF
BCH24 28 25 16 3 3
BCH30 34 31 18 2 1/2 3
BCH36 40 37 20 3 4 3/4
BCH42 46 43 22 3 3/4 4 1/2
BCH48 54 49 25 2 3/4 4 3/4
BCH54 60 55 28 3 5
BCH60 66 61 28 2 3/4 6
MODEL BLL MODEL BCH
A
A
E
F
B
DIA.
D
MAX.
MODEL BHM
MODEL BHH
A
A
D
B
E
F
A
B
A
E
D
F
MODEL A B
DIA.
D
MAX.
EF
BHM24B 32 25 1/2 26 3 5
BHM30B 38 31 1/2 26 3 5
BHM36B 44 37 1/2 28 3 5
BHM42B 50 43 1/2 28 3 5
BHM48B 56 49 1/2 28 2 5
MODEL A B
DIA.
D
MAX.
EF
BHH24B 32 25 1/2 26 3 5
BHH30B 38 31 1/2 26 3 5
BHH36B 44 37 1/2 28 3 5
BHH42B 50 43 1/2 28 3 5
BHH48B 56 49 1/2 28 2 5
BHH54B 62 55 1/2 36 3 5
BHH60B 68 61 1/2 36 3 5
Dimensions Dimensions
Dimensions
Dimensions
Belt Drive Dimensional Data
Breezeway
