PENNBARRY
15

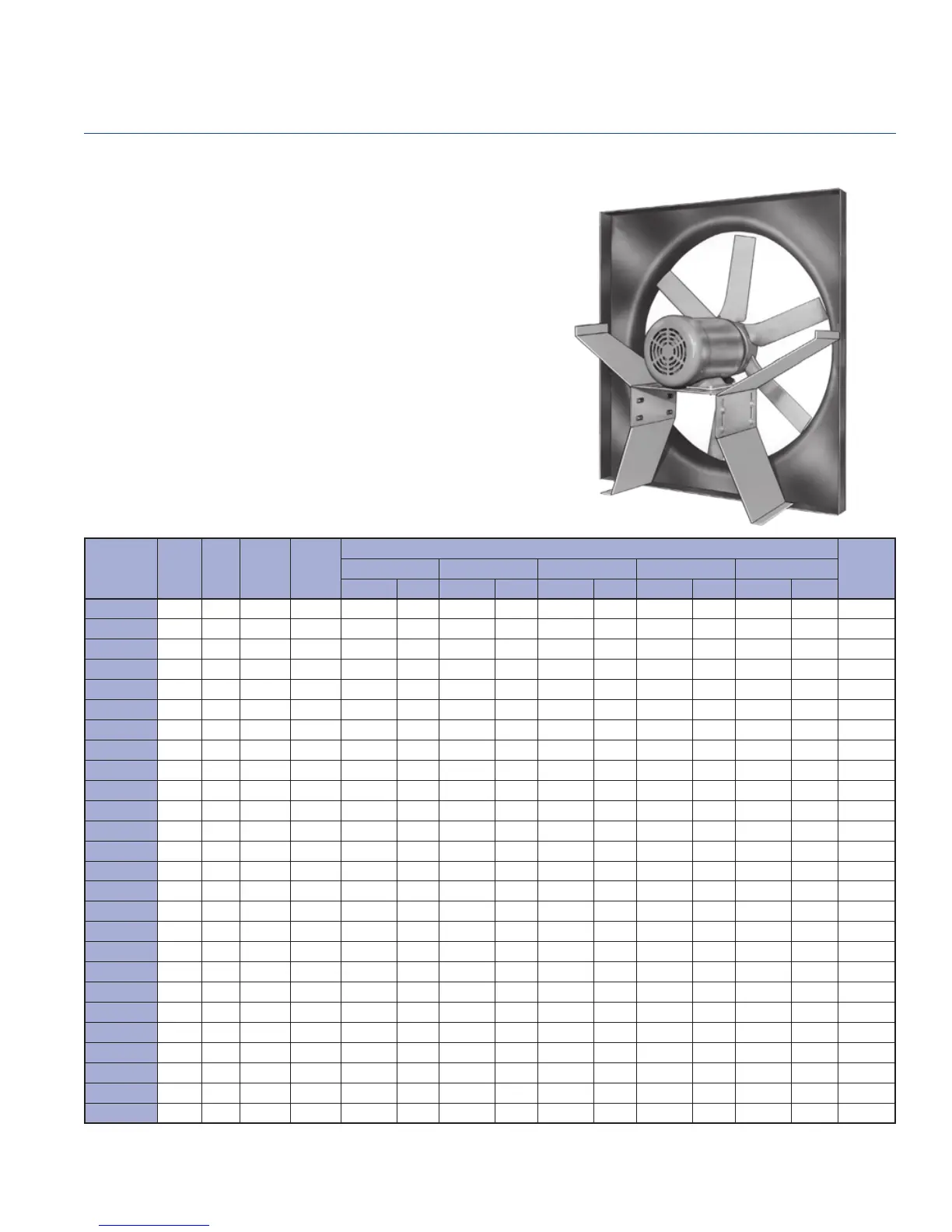

BC Cast Aluminum Propeller Fan
Features:
• Exhaust or supply
• Fabricated steel power assembly
• Statically and dynamically balanced, heavy duty cast aluminum
propeller with taper lock hub
• Integral spun steel venturi with welded corners
• TE, Explosion Proof and 2-speed motors available
(Check Motor Availability Chart – Page 8)
MODEL HP
FAN
DIA.
RPM
TIP
SPEED
(FPM)
FAN CAPACITY IN CUBIC FEET PER MINUTE (CFM)
SONES
@
.125"
0.125" SP 0.2509" SP 0.375" SP 0.500" SP 0.750" SP
CFM BHP CFM BHP CFM BHP CFM BHP CFM BHP
BC24W1 1/2 24" 860 5404 3153 0.15 1988 0.16 1097 0.18 13.1
BC24W2 1/2 24" 860 5404 4444 0.40 2306 0.40 13.9
BC24T1 1/3 24" 1140 7163 4718 0.33 3957 036 3054 0.36 2273 0.38 18.9
BC24T2 1 24" 1140 7163 7025 0.95 5500 0.94 3800 0.94 2310 0.93 20.0
BC24Q 1 1/2 24" 1750 10996 7725 1.15 7380 1.19 6995 1.25 6500 1.28 5445 1.31 33.0
BC30W1 1/3 30" 860 6754 5641 0.29 3660 0.31 14.4
BC30W2 1/2 30" 860 6754 7624 0.41 6372 0.44 4084 0.43 1661 0.42 15.9
BC30W3 3/4 30" 860 6754 9034 0.64 7897 0.66 6430 0.67 3238 0.67 16.8
BC30T1 1 30" 1140 8954 10717 0.90 9884 0.97 8969 1.01 7767 1.04 3775 0.97 23.0
BC30T2 1 1/2 30" 1140 8954 12606 1.48 11771 1.50 10922 1.52 10022 1.54 7017 1.51 24.0
BC30Q1 3 30" 1750 13744 13643 2.28 12782 2.34 12157 2.39 11581 2.47 10164 2.59 36.0
BC30Q2 5 30" 1750 13744 17110 3.04 16625 3.19 16140 3.34 15600 3.45 14405 3.58 40.0
BC36W1 1 36" 860 8105 11099 0.88 9337 0.92 5963 0.95 2525 1.09 19.0
BC36W2 1 1/2 36" 860 8105 13248 1.25 11249 1.34 6912 1.28 21.0
BC36T1 3 36" 1140 10744 18526 2.85 17232 2.94 15820 3.06 13680 3.12 6422 2.99 31.0
BC36Q 7 1/2 36" 1750 16496 25430 7.13 24372 7.21 23476 7.30 22719 7.40 21040 7.58 48.0
BC42W1 2 42" 860 9456 20033 1.94 18114 2.01 16008 2.06 12931 2.14 24.0
BC42W2 5 42" 860 9456 23083 3.58 21837 3.70 20394 3.75 18525 3.76 13396 3.75 30.0
BC42T 5 42" 1140 12535 27644 4.38 26201 4.56 24750 4.67 23297 4.70 19880 4.87 35.0
BC48W1 3 48" 860 10807 25547 2.74 23003 2.85 20415 2.89 17287 2.90 8499 2.88 31.0
BC48W2 5 48" 860 10807 30186 3.98 27927 4.08 25555 4.17 22891 4.26 10571 4.47 34.0
BC48W3 7 1/2 48" 860 10807 33416 5.63 31631 5.73 29705 5.83 27640 5.90 22719 5.80 38.0
BC48T1 7 1/2 48" 1140 14326 35342 6.23 33384 6.44 31458 6.59 29638 6.67 25448 6.75 45.0
BC48T2 10 48" 1140 14326 41224 9.18 39622 9.31 37948 9.43 36214 9.56 32477 9.79 48.0
BC54M 5 54" 690 9755 34071 3.99 31816 4.04 29388 4.06 25491 4.12 12345 3.59 30.0
BC54W 10 54" 860 12158 43437 7.68 41645 7.76 39842 7.81 38091 7.83 32441 7.99 41.0
Performance shown is for installation Type A: Free inlet, Free outlet. Performance ratings do not include the effects of appurtenances in the airstream. The sone ratings
shown are loudness values in fan sones at 5’0” (1.5m) in a hemispherical free fi eld calculated per AMCA standard 301. Values shown are for installation Type A: Free
inlet fan sone levels.
Direct Drive Fan Data
