PENNBARRY
14

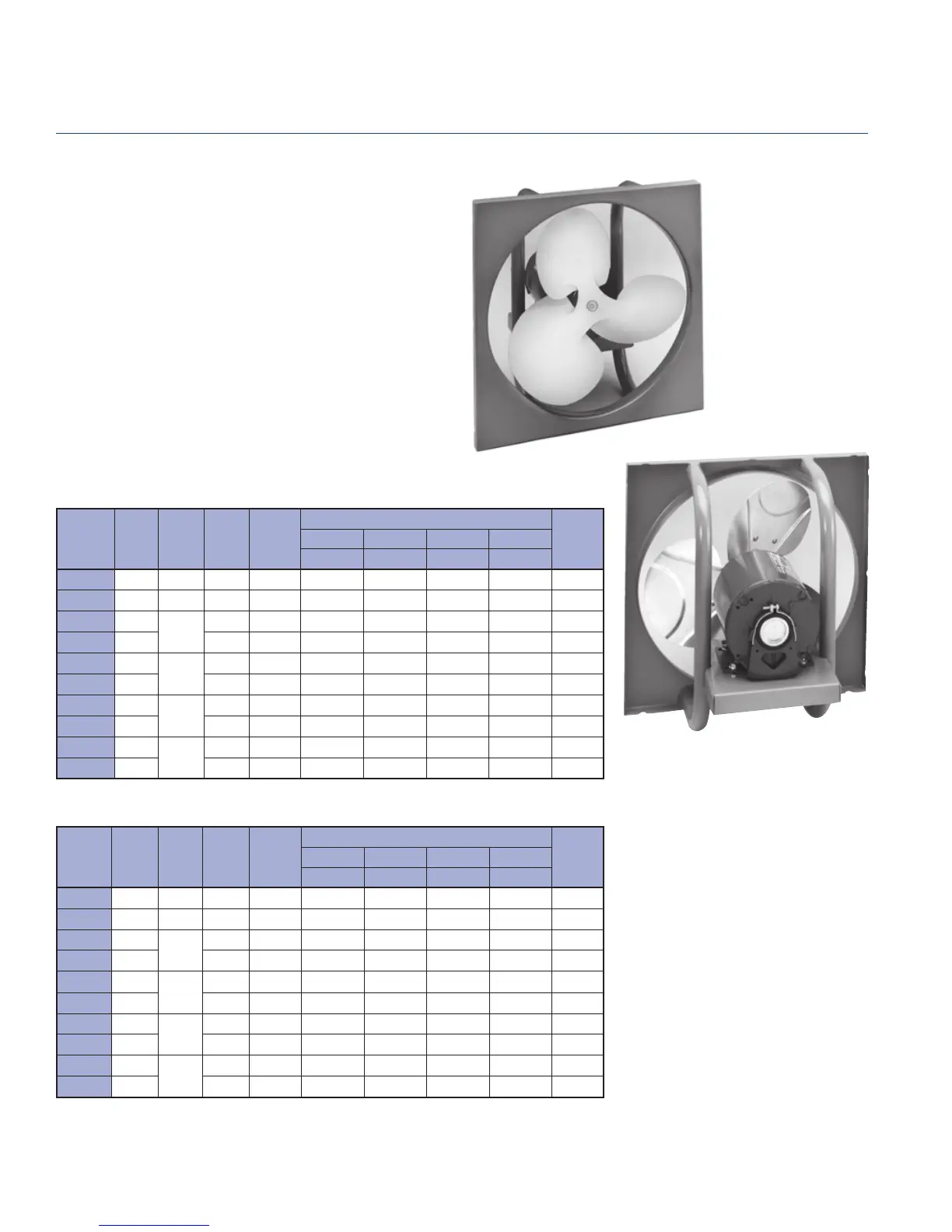

Breezex Reversible Fan
Features:
• Field reversible supply and exhaust
• Includes Reversing Switch (TE, 115V/1PH/60HZ only)
• Totally Enclosed (TE) Motor or Explosion Proof motors
available (Check Motor Availability Chart – Page 9)
• Integral Thermal Overload Protection
• Compact Panel Size
• Integral spun steel venturi with welded corners
• Statically and dynamically balanced, die-formed
aluminum propeller with steel hub
Performance shown is for installation Type A: Free inlet, Free outlet. Performance ratings do not include the effects
of appurtenances in the airstream. The sone ratings shown are loudness values in fan sones at 5'0" (1.5m) in a
hemispherical free fi eld calculated per AMCA standard 301. Values shown are for installation Type A: Free inlet fan
sone levels.
MODEL HP
FAN
DIA.
RPM
TIP
SPEED
(FPM)
FAN CAP. IN CUBIC FEET PER MIN. (CFM)
SONES
@
.125"
0.000" SP 0.125" SP 0.250" SP 0.375" SP
CFM CFM CFM CFM
BX12Q
1/6 12" 1725 5423 1400 1260 1050 805 4.0
BX14Q 1/6 14" 1725 6327 2000 1780 1580 1150 11.0
BX16T 1/6
16"
1140 4779 2255 1885 1390 650 7.2
BX16Q 1/3 1725 7231 3035 2760 2550 2250 13.0
BX18T 1/4
18"
1140 5376 3100 2670 2100 820 8.2
BX18Q 1/3 1725 8135 3500 3040 2275 1400 12.8
BX20T 1/4
20"
1140 5974 3800 3160 2590 2240 9.3
BX20Q 1/3 1725 9039 3750 3440 3200 2560 14.0
BX24T 1/3
24"
1140 7168 4720 4540 3855 3000 14.8
BX24Q
1/2 1725 10847 4650 4400 3800 3480 20.0
MODEL HP
FAN
DIA.
RPM
TIP
SPEED
(FPM)
FAN CAP. IN CUBIC FEET PER MIN. (CFM)
SONES
@
.125"
0.000" SP 0.125" SP 0.250" SP 0.375" SP
CFM CFM CFM CFM
BX12Q 1/6 12" 1725 5423 1125 815 675 530 4.0
BX14Q 1/6 14" 1725 6327 1565 1395 1205 920 11.0
BX16T 1/6
16"
1140 4779 1995 1520 1000 600 7.2
BX16Q 1/3 1725 7231 2530 2345 1835 1430 13.0
BX18T 1/4
18"
1140 5376 2365 2040 1605 625 8.2
BX18Q 1/3 1725 8135 3000 2480 1980 1285 12.8
BX20T 1/4
20"
1140 5974 2705 2265 2130 1835 9.3
BX20Q 1/3 1725 9039 3070 2835 2540 2245 14.0
BX24T 1/3
24"
1140 7168 3610 3475 2945 2295 14.8
BX24Q 1/2 1725 10847 3555 3365 2905 2660 20.0
Direct Drive Fan Data
Breezeway
Performance Data (Supply Air)
Performance Data (Air Exhaust)
