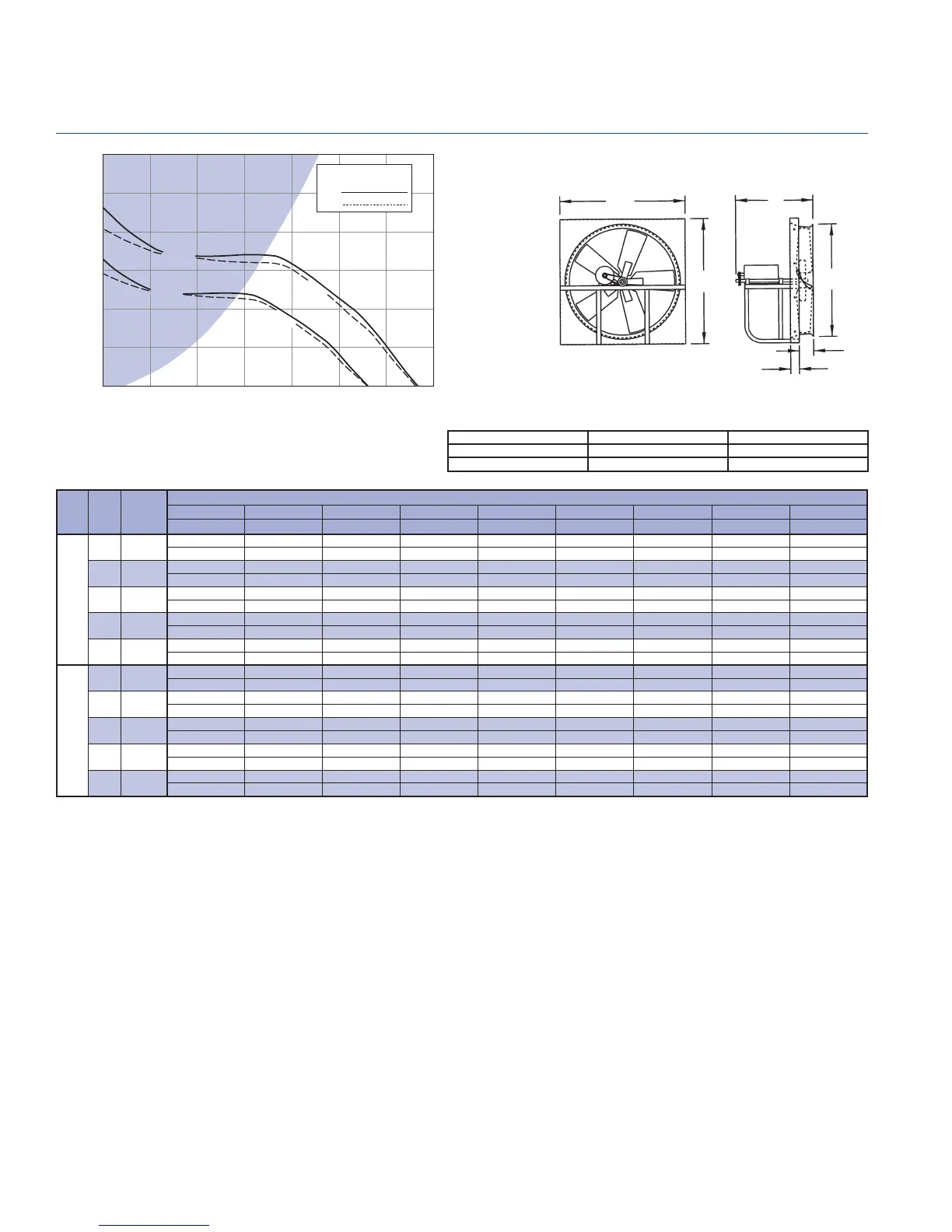

PennBarry Breezeway - Page 29

PENNBARRY
28
3
5
27
43
1
/
2
50
50
AIR FLOW - CFM
STATIC PRESSURE - Inches W.G.
Galv. Panel = 14 gauge Wall Opening = 50 3/4 in.sq. Peak BHP = (RPM/387)^3
Galv. Mtr. Plate = 12 gauge Est. Shipping Weight = 245 lbs. Max RPM = 699 (5 HP)
Galv. Structure = 12 gauge Max. Motor Frame Size = 215T
HP RPM
TIP
SPEED
(FPM)
FAN CAPACITY - CUBIC FEET PER MINUTE (CFM)
0.000" SP 0.100" SP 0.125" SP 0.200" SP 0.250" SP 0.300" SP 0.375" SP 0.500" SP 0.625" SP
Sones BHP Sones BHP Sones BHP Sones BHP Sones BHP Sones BHP Sones BHP Sones BHP Sones BHP
3
525 5917
25530 23361 22879 21213 19799 18129 15429
22 2.31 23 2.36 23 2.36 23 2.39 23 2.41 22 2.38 21 2.37
535 6029
26017 23879 23406 21805 20484 18860 16244
23 2.45 23 2.50 23 2.50 24 2.53 23 2.55 23 2.52 22 2.51
550 6199
26746 24653 24193 22687 21499 19941 17450
24 2.66 24 2.71 24 2.71 25 2.74 24 2.78 24 2.75 23 2.72
565 6368
27475 25433 24977 23561 22405 20989 18635
25 2.88 25 2.94 25 2.94 25 2.96 26 3.00 25 2.99 24 2.95
575 6480
27962 25955 25497 24141 23005 21681 19384
26 3.04 26 3.09 26 3.10 26 3.11 26 3.15 26 3.16 25 3.12
5
600 6762
29178 27255 26794 25527 24488 23387 21221 17224
27 3.45 28 3.51 28 3.52 28 3.53 28 3.56 28 3.61 27 3.56 26 3.57
625 7044
30393 28547 28086 26867 25953 24908 23001 19342
29 3.90 29 3.96 29 3.98 29 3.99 30 4.01 30 4.06 29 4.05 28 4.00
645 7269
31366 29577 29130 27931 27113 26100 24387 20935
30 4.28 31 4.35 31 4.37 31 4.38 31 4.39 31 4.44 31 4.46 30 4.39
665 7495
32338 30604 30170 28989 28227 27281 25753 22461 18633
32 4.70 32 4.76 32 4.78 32 4.80 32 4.80 32 4.85 33 4.91 32 4.82 31 4.92
683 7697
33214 31525 31102 29936 29194 28334 26900 23788 20347
33 5.09 33 5.16 33 5.17 34 5.20 34 5.20 34 5.23 34 5.31 33 5.24 33 5.22
BHH 42B - Belt Drive Fan Data
Breezeway
Performance shown is for installation Type A: Free Inlet, Free Outlet. Power rating (BHP) does not include drive losses. The sound ratings shown are for loudness values
in fan sones at 5'0" (1.5m) in a hemispherical free fi eld per AMCA standard 301. Values shown are for installation Type A: Free inlet fan sone levels. Performance ratings
do not include the effects of appurtenances in the airstream. For further information on sound classifi cation, see page 40. For accessories, see pages 3 thru 7.
10000 15000
5000
0 20000 25000
1.200
1.000
0.800
0.600
0.400
0.200
0.000
30000 35000
575 RPM
683 RPM
3 HP
5 HP
RPM
BHP
Do not select shaded area.
