PENNBARRY
39
66
66
61
28
2
3
/
4
6
AIR FLOW - CFM
STATIC PRESSURE - Inches W.G.
HP RPM
TIP
SPEED
(FPM)
FAN CAPACITY - CUBIC FEET PER MINUTE (CFM)
0.000" SP 0.100" SP 0.125" SP 0.200" SP 0.250" SP 0.375" SP 0.500" SP 0.625" SP 0.750" SP 1.000" SP
Sones BHP Sones BHP Sones BHP Sones BHP Sones BHP Sones BHP Sones BHP Sones BHP Sones BHP Sones BHP
1 1/2
241 3786
21063 15681 13828
10.2 0.59 9.7 0.62 9.8 0.62
270 4241
23598 18983 17597
12.4 083 11.6 0.86 11.7 0.87
331 5199
28929 25548 24423 21005 17965
18.0 1.52 16.9 1.57 16.6 1.58 16.7 1.60 17.1 1.60
2
340 5341
29716 26485 25389 22081 19435
18.9 1.65 17.8 1.70 17.4 1.71 17.4 1.74 17.7 1.74
365 5733
31901 28976 28034 24948 22847
21 2.04 20 2.10 20 2.11 19.6 2.14 19.8 2.15
3
370 5812
32338 29461 28557 25515 23476
22 2.12 21 2.19 21 2.20 20 2.23 20 2.24
419 6582
36620 34154 33453 30927 29128 24180
26 3.08 25 3.16 25 3.17 24 3.21 24 3.23 24 3.25
5
430 6754
37582 35196 34513 32108 30360 25766
27 3.33 26 3.41 26 3.43 25 3.47 24 3.49 24 3.52
498 7823
43525 41530 40977 39208 37731 33957 29964 18028
33 5.18 31 5.27 31 5.29 30 5.35 30 5.37 28 5.43 27 5.47 25 5.38
7 1/2
510 8011
44574 42626 42105 40378 38997 35318 31527 24750
34 5.56 33 5.65 32 5.68 31 5.74 31 5.77 29 5.83 28 5.87 27 5.75
545 8561
47632 45810 45354 43761 42643 39218 35774 31807 19636
37 6.78 36 6.89 35 6.91 34 6.98 34 7.02 32 7.09 30 7.15 30 7.16 28 7.06
571 8969
49905 48165 47731 46250 45222 42053 38752 35350 30653
39 7.80 38 7.91 38 7.94 37 8.01 36 8.05 34 8.13 32 8.19 31 8.24 31 8.20
10
580 9111
50692 48979 48551 47108 46095 43022 39775 36488 32359
40 8.18 39 8.29 38 8.31 37 8.38 37 8.43 35 8.51 33 8.58 32 8.63 31 8.62
600 9425
52440 50784 50370 49007 48028 45159 42030 38914 35274
42 9.05 40 9.16 40 9.19 39 9.27 38 9.31 37 9.41 34 9.48 33 9.54 33 9.56
615 9660
53751 52135 51732 50426 49471 46748 43703 40651 37385
43 9.75 42 9.86 41 9.89 40 9.97 40 10.02 38 10.12 36 10.19 34 10.26 34 10.30
629 9880
54974 53395 53000 51745 50812 48221 45251 42257 39168 22607
44 10.43 43 10.55 43 10.58 42 10.66 41 10.71 39 10.81 37 10.89 35 10.96 34 11.02 33 10.86
15
640 10053
55936 54384 53996 52780 51862 49373 46459 43508 40554 27400
45 10.99 44 11.11 44 11.14 43 11.22 42 11.27 40 11.38 38 11.46 36 11.54 35 11.60 34 11.23
660 10367
57684 56179 55802 54655 53765 51453 48631 45775 42946 35529
47 12.05 46 12.17 45 12.20 44 12.29 44 12.34 42 12.47 39 12.55 37 12.63 36 12.70 36 12.67
680 10681
59432 57971 57606 56510 55660 53501 50779 48017 45256 38871
49 13.18 47 13.30 47 13.34 46 13.43 45 13.48 44 13.62 41 13.71 39 13.79 37 13.86 37 13.91
700 10996
61180 59761 59406 58342 57548 55450 52907 50234 47537 41763
51 14.37 49 14.50 49 14.54 48 14.64 47 14.69 45 14.83 43 14.93 41 15.02 39 15.10 38 15.19
721 11325
63015 61637 61293 60260 59522 57486 55124 52539 49919 44554
53 15.71 52 15.84 51 15.88 50 15.98 50 16.04 48 16.18 45 16.29 43 16.38 41 16.47 39 16.59
20
730 11467
63802 62441 62101 61080 60366 58355 56068 53517 50932 45694
54 16.30 53 16.44 53 16.47 51 16.58 51 16.64 49 16.78 47 16.90 44 16.99 42 17.08 40 17.22
745 11702
65112 63779 63446 62446 61770 59800 57636 55136 52610 47579
56 17.33 55 17.47 55 17.50 54 17.61 53 17.68 51 17.82 49 17.95 47 18.04 44 18.13 42 18.29
760 11938
66424 65117 64790 63810 63156 61239 59195 56744 54276 49345
59 18.40 57 18.54 57 18.57 56 18.68 55 18.75 53 18.90 51 19.04 49 19.13 46 19.23 43 19.39
775 12174
67735 66453 66133 65171 64531 62675 60746 58343 55931 51083
61 19.51 59 19.65 59 19.69 58 19.80 57 19.87 55 20.02 53 20.17 51 20.27 49 20.37 45 20.54
780 12252
68172 66898 66580 65625 64988 63152 61262 58874 56480 51660
62 19.89 60 20.03 60 20.07 59 20.18 58 20.25 56 20.41 54 20.56 52 20.66 49 20.76 45 20.93
Carbon Steel Panel = 16 gauge Wall Opening = 67 in.sq. Peak BHP = (RPM/246)^3
Carbon Stl. Mtr. Plate = 10 gauge Wall Shutter ID = 66 in.sq. Max RPM = 780 (20 HP)
Carbon Steel Tube = 16 gauge Est. Shipping Weight = 420 lbs. Max. Motor Frame Size = 286T
Performance shown is for installation Type A: Free Inlet, Free Outlet. Power rating (BHP) does not include drive losses. The sound ratings shown are for loudness values
in fan sones at 5'0" (1.5m) in a hemispherical free fi eld per AMCA standard 301. Values shown are for installation Type A: Free inlet fan sone levels. Performance ratings
do not include the effects of appurtenances in the airstream. For further information on sound classifi cation, see page 40. For accessories, see pages 3 thru 7.

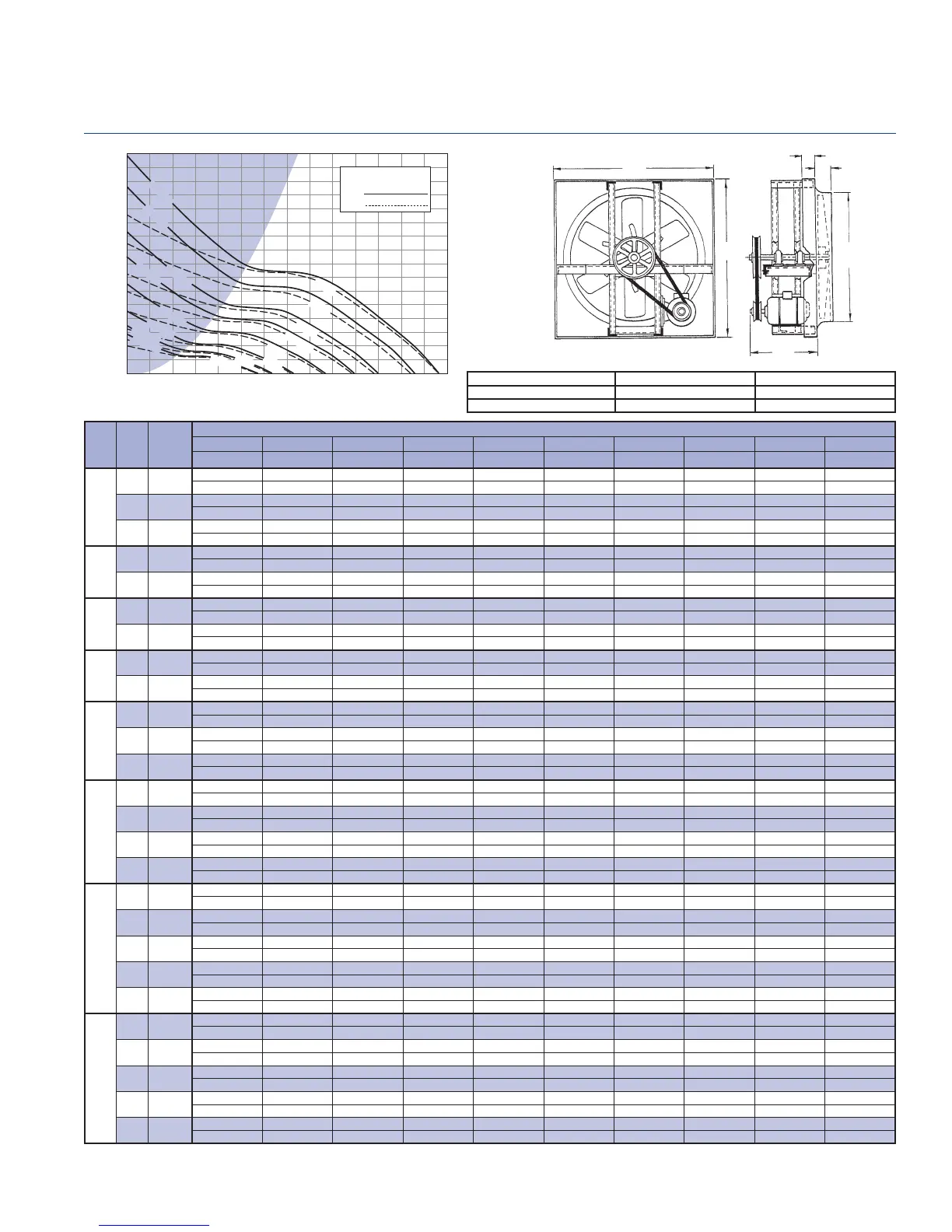

Belt Drive Fan Data - BCH 60
