PENNBARRY
4

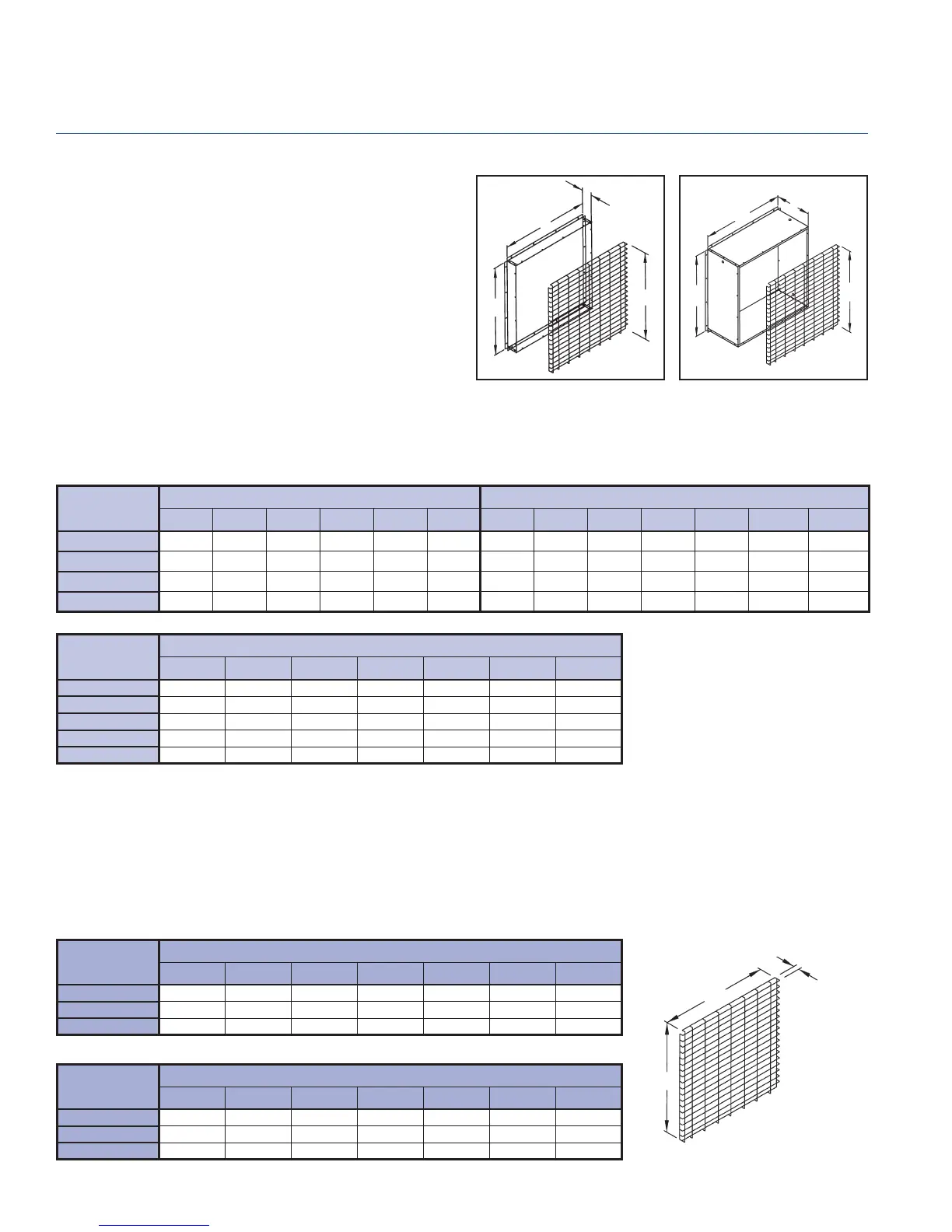

Rear and Front Guards
Protection is available for both the rear motor side (rear guard)
of the fan and the front face (front guard) of the fan. Both
assemblies include a sheet metal sleeve with an attached
guard. The rear guard is long enough to enclose the belt and
pulleys. The front guard is surface mounted and long enough
to enclose a wall shutter, if provided. The guard for either is
removable for maintenance. Standard shipment is knocked
down for BHM and BHH, or optionally available as factory
assembled. Shipment for other models is factory assembled
only. The guards on both conform to OSHA specifi cations.
Wall Mounting Sleeve Guard / Weathershield Guard
These guards are supplied with the Weathershield and Wall Sleeve. They are fabricated 11 ga. galvanized wire “cage” suitable
for use for OSHA protection. (Note that guard may be attached to either front or rear of wall sleeve.)
Protection that conforms to OSHA regulations should be installed when fans are located within seven (7) feet of fl oor and/or
working level, or within reach of personnel. Review OSHA codes for specifi c details.
*Motor side guard of concentric rings integral to unit. **BCH only
*BHH only
*BHH only
*BCH only
Protection that conforms to OSHA regulations should be installed when fans are located within seven (7) feet of fl oor and/or
working level, or within reach of personnel. Review OSHA codes for specifi c details.
FRONT GUARD REAR GUARD
B
B
A
A
C
C
A
A
B
A
A
SIZE
BHM/BHH
24 30 36 42 48 54* 60*
A
SQ.
32 3/4 38 3/4 44 1/4 50 1/4 56 1/4 62 3/8 68 3/8
B FRONT 5555555
B REAR 20 20 20 22 22 27 27
C 32 3/8 38 3/8 44 3/8 50 3/8 56 3/8 62 1/2 68 1/2
SCREEN
1 PIECE 1 PIECE 1 PIECE 1 PIECE 1 PIECE 2 PIECES 2 PIECES
SIZE
P SERIES BC/BLL/BCH
10 12 16 18 20 24 24 30 36 42** 48** 54** 60**
A * * * * * * 28 3/16 34 3/16 40 3/16 46 3/16 54 1/4 60 1/4 66 1/4
B * * * * * * 13 1/2 16 1/2 16 1/2 20 1/2 25 25 25
SCREEN 1 PIECE 1 PIECE 1 PIECE 1 PIECE 1 PIECE 1 PIECE 1 PIECE 1 PIECE 1 PIECE 1 PIECE 1 PIECE 2 PIECES 2 PIECES
C
SQ.
15 1/2 17 1/2 23 1/4 24 3/4 27 1/4 33 28 5/8 34 5/8 40 5/8 46 5/8 54 3/4 60 3/4 66 3/4
SIZE
BC/BLL/BCH
24 30 36 42* 48* 54* 60*
A
SQ.
29 34-5/8 40-5/8 46-5/8 54-3/4 60-3/4 66-3/4
B 1-1/2 1-1/2 1-1/2 1-1/2 1-1/2 1-1/2 1-1/2
SCREEN
1 PIECE 1 PIECE 1 PIECE 1 PIECE 1 PIECE 2 PIECES 2 PIECES
SIZE
BHM/BHH
24 30 36 42 48 54* 60*
A
SQ.
32-3/8 38-3/8 44-3/8 50-3/8 56-3/8 62-1/2 68-1/2
B 1-1/2 1-1/2 1-1/2 1-1/2 1-1/2 1-1/2 1-1/2
SCREEN
1 PIECE 1 PIECE 1 PIECE 1 PIECE 1 PIECE 2 PIECES 2 PIECES
Options and Accessories
Breezeway
Dimensional Data
Dimensional Data
