OPTIONS & ACCESSORIES
Model E
(4)
SQ T
(2)
SQ A SQ Ro(3) SQ Damper Size SQ Galv. Steel Gauge
FX08S/R 18.5 17 25 9 8.75 18
FX10S/R 18.5 17 25 11.5 11.25 18
FX11V/S/R/Q 18.5 17 25 11.5 11.25 18
FX13V/S/R/Q 18.5 17 25 11.5 11.25 18
FX16V/S/R/Q1/Q2 20.5 19 27 16 15.75 18
FX18V 28.5 27 35 20 19.75 18
FX08B to FX14B 24.75 23.25 31.25 16 15.75 18
FX12BH 24.75 23.25 31.25 16 15.75 18
FX13BHFT 24.75 23.25 31.25 16 15.75 18
FX16B and FX18B 28.5 27 35 20 19.75 18
FX18BH 28.5 27 35 20 19.75 18
FX24B 33.5 32 40 25 24.75 18
FX24BH 33.5 32 40 25 24.75 18
FX27B and FX30B 36.5 35 43 28 27.75 18
FX36B 44.5 43 51 36 35.5 18
Standard heights “H” are 8”, 12”, and 18” including wood nailer. ”T” dimension of curb is 1 1/2” less than the dimension of inside base of fan (“E”). “Ro”
refers to Roof Opening. “E” dimension is inside base of fan. For FT (Fatrap) units, curbs are cantless, 18” high and optionally vented.

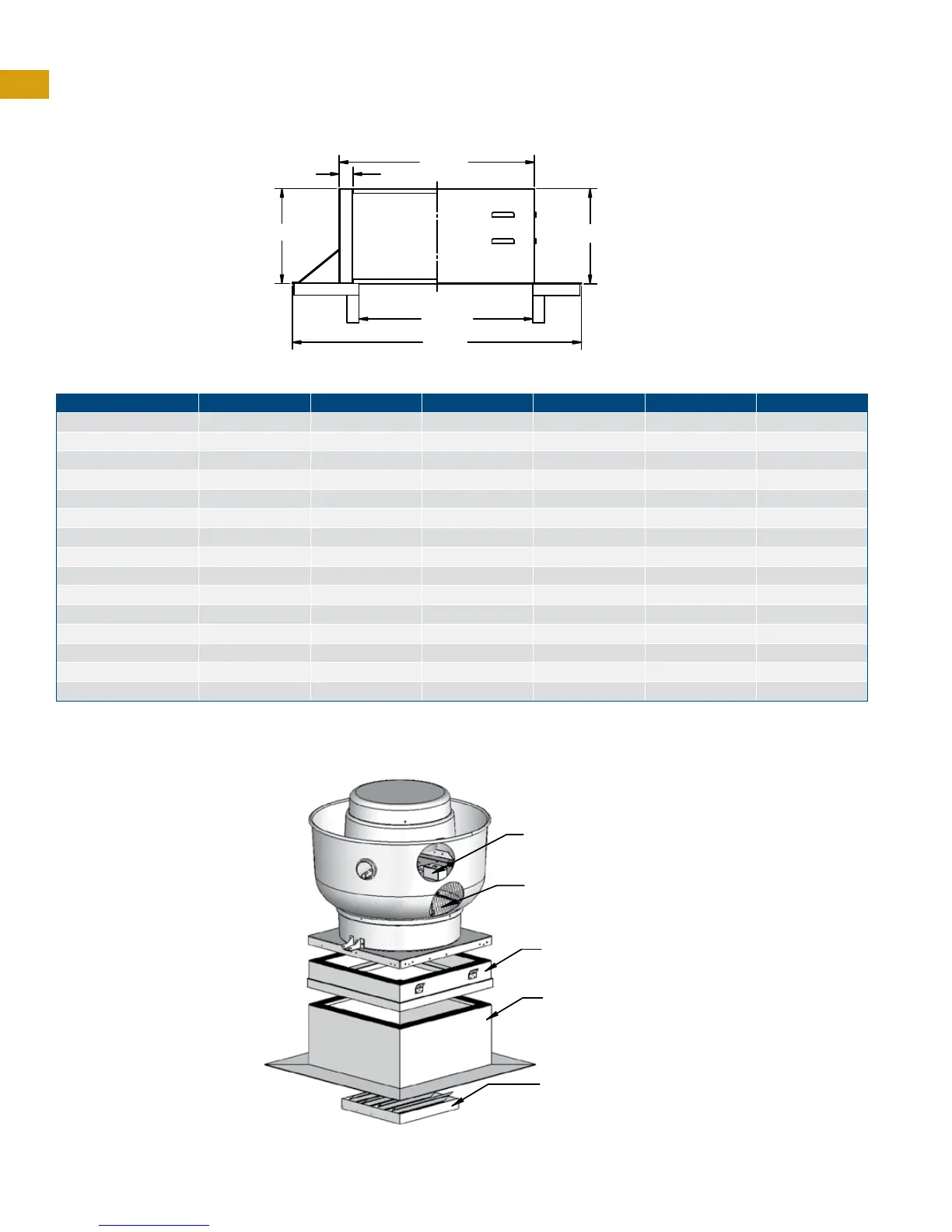

Exploded View
HINGED
SUB-BASE
ALUMINUM
BIRD AND INSECT
SCREEN
SAFETY
DISCONNECT
SWITCH
PREFABRICATED
CURB
BACKDRAFT
DAMPER
Standard
w/C ant
Vented S elf
Fl ashing
R o (sq.)
A (sq.)
1 1 /2"
H
T (sq.)
18 " MIN.
Fumex Curb
