PennBarry Fumex - DIRECT DRIVE | DIMENSIONS; Direct Drive Models Overview; Direct Drive Dimension Data

www.PennBarry.com 15

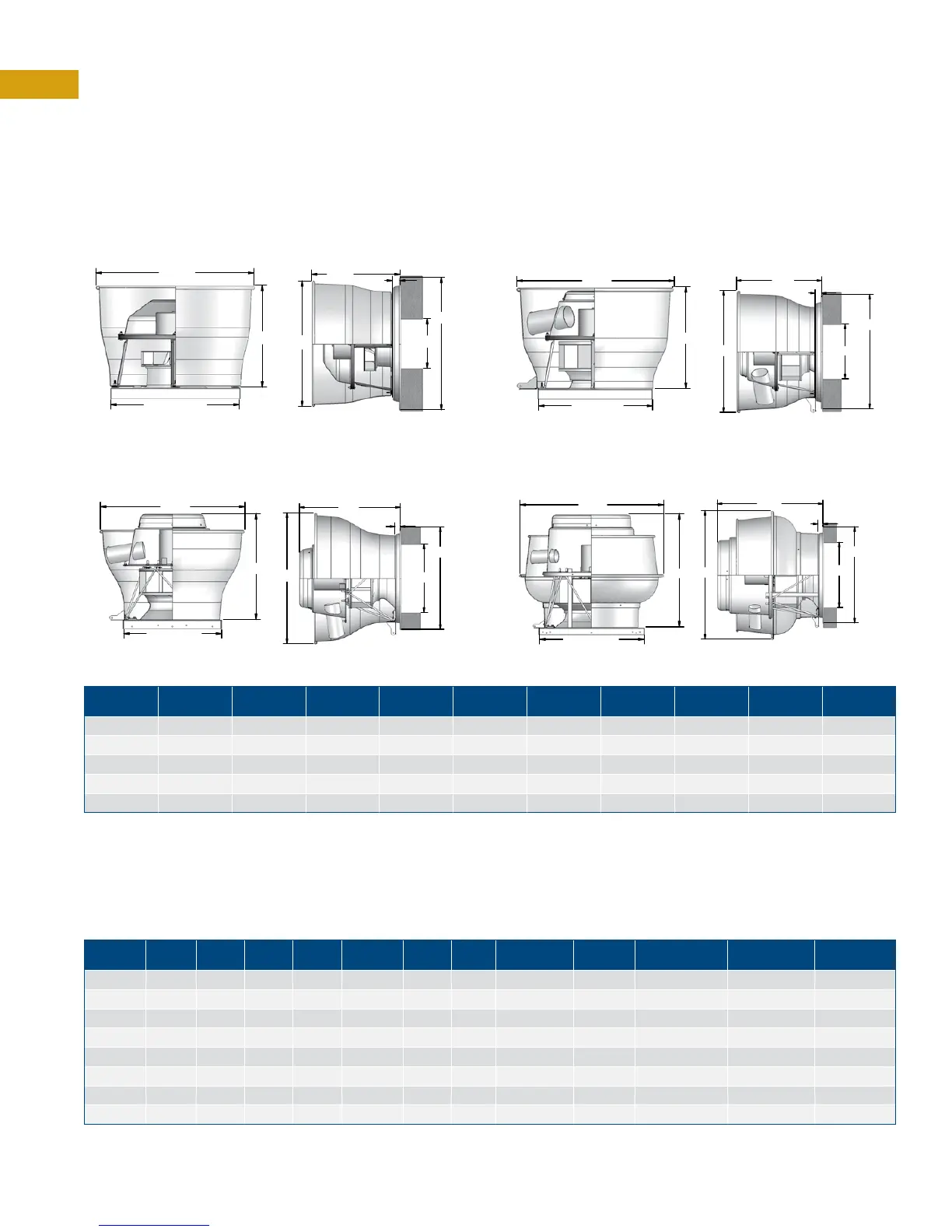

DIRECT DRIVE | DIMENSIONS
Fumex direct drive models are available with single and multi-speed motors.
A single Fumex fan may be made suitable for several requirements by a simple wiring change. This feature provides exibility for a variety
of reasons, including energy savings, o hours requirements, future expansion, or unexpected eld variations. When compared to belt
drive models, direct drive fans require less maintenance, have a simpler construction, cost less, and are lighter in weight.
Fumex direct drive models are available in six sizes (8, 10, 11, 13, 16, and 18). Their capacities are up to 4500 CFM, with static pressures up
to 1 1/2”.
FX13FX08-FX11
1 ¼"
L DIA
G
F Sq.
Wo
L DIA
H
E Sq.
L DIA
E Sq.
H
1 ¼"
L DIA
G
Wo
F Sq.
G
1 ¼"
F Sq.
Wo
H
E Sq.
L DIA
L DIA
L DIA
G
1 ¼"
F Sq.
Wo
L DIA
H
E Sq.
FX16 FX18
Model L DIA H E Sq. Wo Sq. F Sq. G
Galv. Steel
Base
Aluminum
Base
Discharge
Apron
Est. Ship
Weight
FX08 25 14 1/8 18 1/2 9 16 7/8 24 16 Gauge 0.064” 0.050” 29 lbs.
FX10/ FX11 25 14 1/8 18 1/2 11 1/2 16 7/8 24 16 Gauge 0.064” 0.050” 32 /42 lbs. (1)
FX13 25 1/2 16 1/2 18 1/2 11 1/2 17 7/8 24 16 Gauge 0.064” 0.050” 45lbs.(2)
FX16 30 1/4 22 3/8 20 1/2 16 24 24 1/4 16 Gauge 0.064” 0.064” 69lbs.(3)
FX18 39 31 28 1/2 20 29 1/2 32 1/2 16 Gauge 0.064” 0.080” 87 lbs.
All dimensions are in inches.
(1) 11Q estimated ship weight = 44 lbs.
(2) 13Q estimated ship weight = 52 lbs.
(3) 16Q1 estimated ship weight = 71 lbs. 16Q2 estimated ship weight = 73 lbs.
All dimensions are in inches
Enhanced Direct Drives
Model L
DIA
H E
Sq.
Wo
Sq.
F
Sq.
G X Damper Size
Max Motor
Frame Size
Galv. Steel Base Discharge Apron
Est. Ship Weight
(lbs.)
FX081 35 28 3/4 24 3/4 16 27 1/4 30 5 3/4 15 3/4 56 16 gage 0.064 101
FX101 35 28 3/4 24 3/4 16 27 1/4 30 5 3/4 15 3/4 56 16 gage 0.064 101
FX121H 35 28 3/4 24 3/4 16 27 1/4 30 5 3/4 15 3/4 56 16 gage 0.064 116
FX131/H 35 28 3/4 24 3/4 16 27 1/4 30 5 3/4 15 3/4 56 16 gage 0.064 116
FX141 35 28 3/4 24 3/4 16 27 1/4 30 5 3/4 15 3/4 56 16 gage 0.064 118
FX161 39 31 28 1/2 20 29 1/2 32 1/2 6 1/2 19 3/4 145T 14 gage 0.064 151
FX181/H 39 31 28 1/2 20 29 1/2 32 1/2 6 1/2 19 3/4 145T 14 gage 0.064 152
FX241/H 46 34 1/2 33 1/2 25 35 7/8 36 7 24 3/4 184T 14 gage 0.064 200
