PennBarry Fumex - INTRODUCTION; Fumex Series Overview

www.PennBarry.com 3

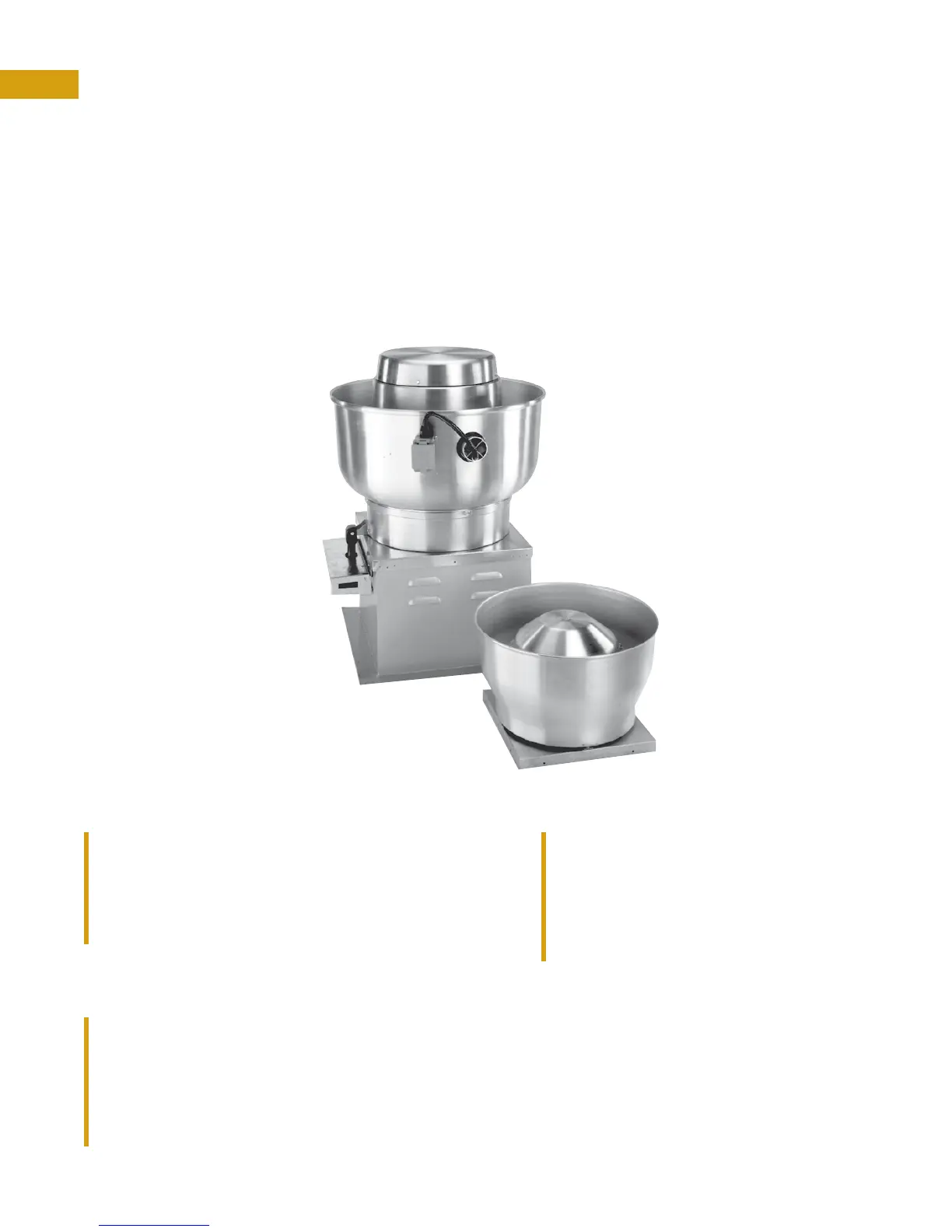

Fumex Series of Centrifugal Fans
Fumex centrifugal fans are designed for medium to high pressure applications and are available in a range of capacities. They can be
either roof or wall mounted. While suitable for general ventilation, Fumex fans are specically designed to discharge contaminated or
grease-laden air or fumes up and away from building surfaces. The optional “Fatrap” (UL762) restaurant grease exhaust conguration
(see Fatrap Conguration) makes Fumex fans particularly suited for all food service applications and chemical fume hoods. The optional
heat and smoke removal conguration (see Smoke Removal) makes Fumex fans especially prepared for heat and smoke control systems.
The optional high wind construction makes Fumex fans well-tted for high wind hurricane zones.
Fumex fans feature a weather-resistant, seamless spun aluminum housing which provides ample drainage and works in conjunction
with a patented wheel design and deeply spun inlets to provide smooth quiet airow through the ventilator. The centrifugal wheels are
aluminum, non-overloading, backward inclined, robotically welded, and dynamically balanced.
INTRODUCTION
Direct Drive Units
Model: FX (V/S/R/Q/Q1/Q2)
• Static pressure up to 1.5” wg.
• Flow capacity up to 4,489 CFM.
• Fatrap (FT) option available on sizes 13, 16, and 18.
• High Wind Construction (-HW) option available.
High Pressure Belt Drive Units
Model: FX (BH)
• Static pressure up to 3.0” wg.
• Flow capacity up to 8,623 CFM.
• Fatrap (FT) option available.
• Heat & Smoke Removal (-HS) option available.
• High Wind Construction (-HW) option available.
Standard Duty Belt Drive Units
Model: FX (B)
• Static pressure up to 2.5” wg.
• Flow capacity up to 21,511 CFM.
• Fatrap (FT) option available.
• Heat & Smoke Removal (-HS) option available.
• High Wind Construction (-HW) option available.
