Pentair AUTOTROL 742 Series - Logix 700 Series Controllers; Controller Identification; AC Adapter Options

LOGIX 700 SERIES CONTROLLERS
Time & Day
Regen Time & Day
Salt
SU MO TU WE TH FR SA DAYS
LBS
PM
MIN
KG
x100
x2
P
HC
Capacity
Hardness
Time/Day
Su Mo Tu We Th Fr Sa
DAYS
Regeneration Time/Day
Salt Amount

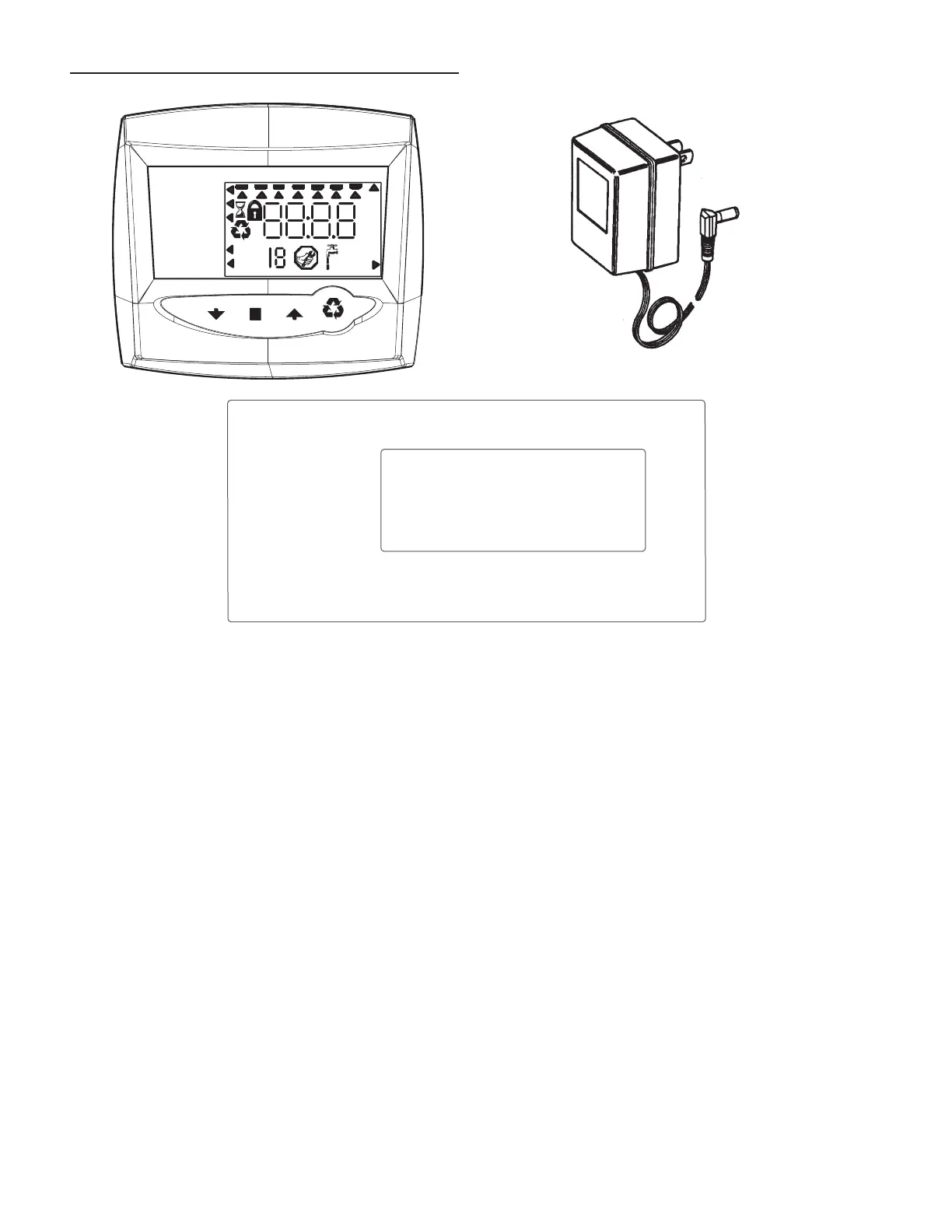

Item No. QTY Part No. Description
1 ..............1 ...............................742/762 Electronics
Modules/Controllers
....... 1242150 ..........Logix 742 Controller
....... 1242162 ..........Logix 742 F Controller
....... 1242168 ..........Logix 762 Controller
....... 1242170 ..........Logix 762F Controller
................................Electrical Components
....... 1235373 ..........Module, Sensor, Photo
Interrupter
....... 1235361 ..........Motor w/Spacer & Pinion,
700 Series Controller 12V,
50/60 Hz
....... 1244336 ..........Refill Sensor Probe for Salt
Detector Applications
....... 1256257 ..........Remote Mount Kit
2 ................................................AC Adapter
....... 1000810 ..........Japanese
....... 1000811 ..........North American
....... 1000812 ..........Australian
....... 1000813 ..........British
....... 1000814 ..........European
....... 1030234 ..........Transformer Extension Cord
15 foot (4.5m)
....... 1235448 ..........North American Outdoor AC
Adapter
3 ................................................700 Control Overlays
....... 1238472 ..........Overlay, 716 Controller,
English
....... 1238476 ..........Overlay, 740C/742C
Controller, English
Item No. QTY Part No. Description
1
3
2
