C SERIES
®
Bronze Commercial Pump Installation Guide

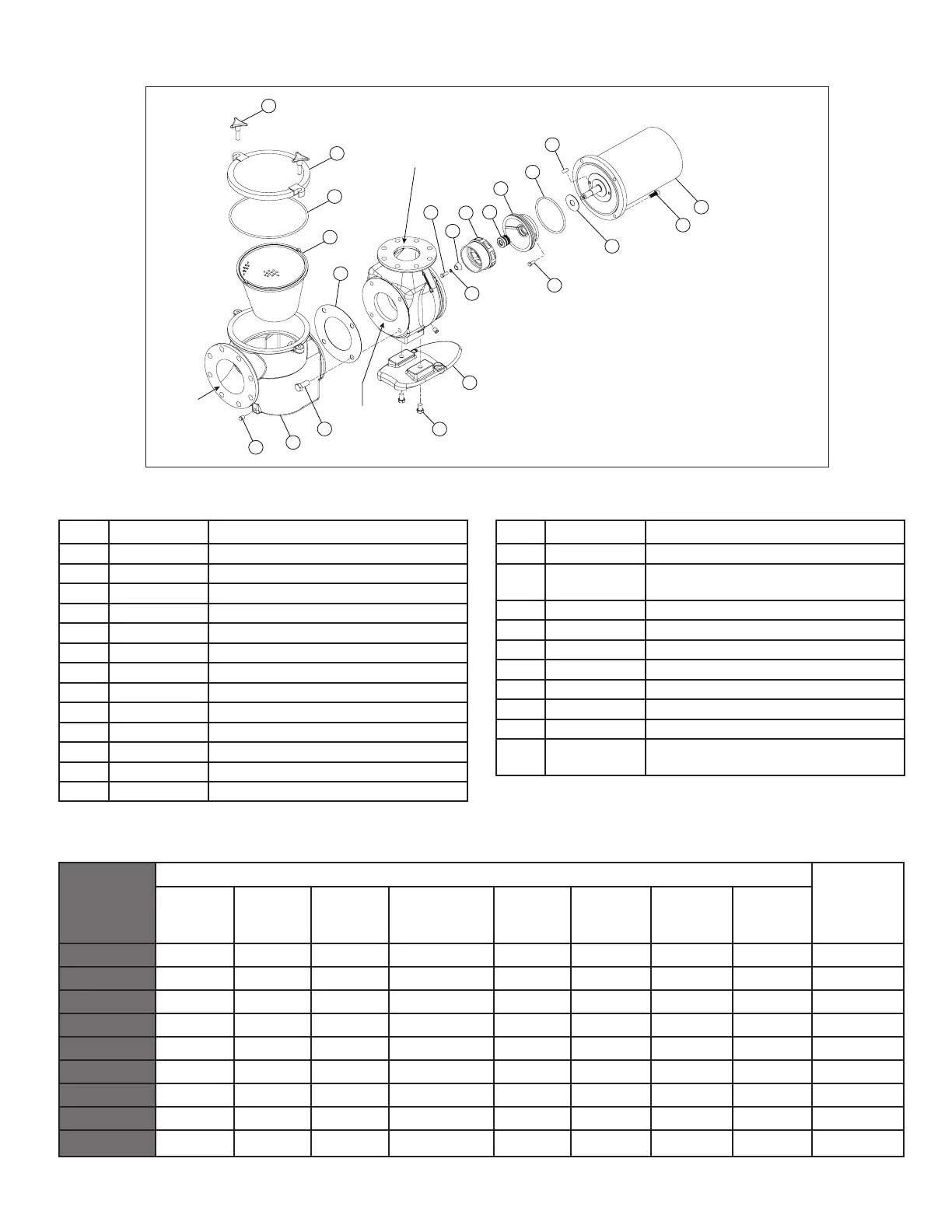

Pump Exploded View
1
2
3
6
4
5
9
8
11
10
20
22
23
21
18
17
19
16
15
14
12
13
5” Suction
Volute
Flange
6” Pot
Suction
Flange
4” Pot
Discharge
Volute
Flange
 All motor subassemblies are 60Hz 220/440V, 3 Phase
EXCEPT 073264 and 073260 which are 230V only.
 All motor subassemblies are 60Hz, Single Phase
 All motor subassemblies are 50Hz 380/415V, 3 Phase.
Notes:
All brass C-Series parts will retrofit older cast iron models.
Standard flange not included with pump.
Item # Part # Description
1 075280 Hand nut assy. - brass, 2 req.
2 075275 Cover, C-16 - brass
3 071433 O-ring, C-18
4 071551 Plug pipe ¼ in. - brass, 2 req.
5 075271 Pot mach., C-22 - stain brass
6 072795 Basket, C-29 - S/S 11in.
7 075273 Volute, C-2 - brass
8 070943 Gasket flange, P-135-5in.
9 071683 Screw ¾in. - 10 x 1¾ in. HH - brass P-12, 4 req.
10 075287 Foot, C-4 - cast iron, coated
11 071688 Screw 5/8 in. - 11 x 1in. HH - S/S, 2 req.
12 071037 Impeller lock screw - C-35
13 071048 Impeller washer, C-71
Pump
Model
Motor P/Ns
Impeller
P/Ns
1PH, 230V,
60Hz
1PH, 200V,
60Hz
3PH, 200V,
60Hz
3PH 208-
220/440V, 60Hz &
190/380V, 50Hz
3PH, 575V,
60Hz
3PH, 200V,
60Hz
3PH, 350-
415V, 50Hz
3PH, 380-
400V, 60Hz
CH/CHK-50
071366 357205 357206 071364 357237 357206 072737 071368 073828
CH/CHK-75
357204 357207 357208 071365 357247 357208 072739 071369 073829
CH/CHK-100
357249 -- 357209 071363 357238 357209 072740 071370 073830
CH/CHK 150
-- -- 357210 071361 357245 357210 072742 071371 073831
CH/CHK-200
-- -- 357211 071362 357246 357211 072744 071372 073832
CM/CMK-50
071366 357205 357206 071364 357237 357206 072737 --- 070228
CM/CMK-75
357204 357207 357208 071365 357247 357208 072739 --- 070227
CM/CMK-100
357249 -- 357209 071363 357238 357209 072740 --- 070226
CM/CMK-150
-- -- 357210 071361 357245 357210 072742 --- 070225
Item # Part # Description
14 356631 Impeller washer gasket
15
See Impeller
Table Below
Impeller
16 071725 Seal, C-7, PS-360
17 070906 Flange, mach., C-52 - brass
18 071423 O-ring, C-70
19 071681 Screw 3/8in. - 16 x ¾in., CS HH, 2 req.
20 072185 Water slinger, C-115
21 071046 Impeller key, 3/16in. sq.
22 071687 Screw ½in. - 13 x 1¼in. std. HH, 4 req.
23
See Motor
Table Below
Motor
Parts List
Motor and Impeller Table
