Installing GloBrite
™
Color Light Niche in a Fiberglass Pool
To install the GloBrite
™
color light niche in a fiberglass pool:
1. Drill or punch a 2-1/8 inch hole in the desired location for the GloBrite light
niche.
2. Place the sealing gasket on the niche as shown below.
3. Insert the niche through the 2-1/8 inch hole in the pool wall.
4. Install the PVC washer to the back of the niche.
5. Install the plastic nut onto the back of the niche. Hand tighten the nut to
secure the niche in place.
6. Glue the 1” conduit into back of niche.
7

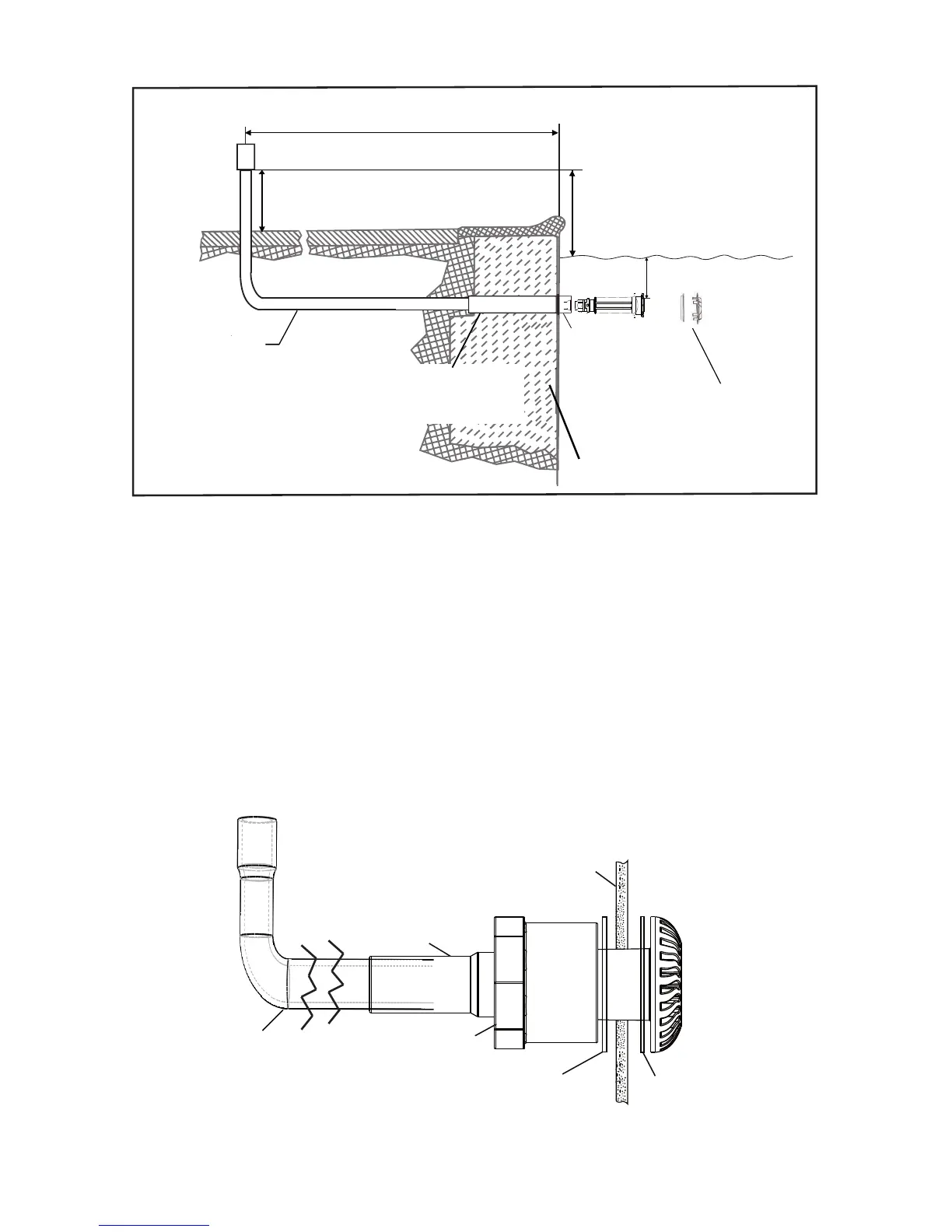

GloBrite Color Light Niche (Fiberglass pool) Installation Diagram
Figure 1: Gunite Light Installation Diagram
8” min. (20.3 cm)
48” (1.22 m) min.
4” min. (10.2 cm)
Color Ring and Gunite Cover
To 12 VAC
Transformer
Niche Sleeve
(cut flush to wall
before plastering)
to top of lens
Plaster Finish
4” (10.2 cm)
Ridgid
1” (3 cm)
Conduit
Niche Sleeve: 2” PVC Pipe
For Gunite Niche Only
( 15” min.)
( 35.1 cm )
min.
1” Conduit
Nut
Niche
Pool wall
Sealing gasket
PVC washer
