Drive Assembly Installation
Note: The gasket between the drive and motor is critical in keeping moisture out of
the drive and motor. DO NOT reassemble with a damaged or missing gasket. The
manufacturer recommends replacing the existing gasket with the one supplied
in this kit before installing the replacement drive assembly.
1. Be sure all electrical breakers and switches are turned off before installing the
drive.
2. Install the new drive connection gasket between the drive and motor. It is critical
in keeping moisture out of the drive and motor. DO NOT reassemble with a
damaged or missing gasket.
3. Install the three (3) orange motor post caps onto the motor and remove the red
protective tape from the drive’s terminal connection opening on the underside
of the drive.
4. Align the drive assembly with the motor adapter connector and seat the drive
on the motor assembly.
5. Secure and tighten the drive assembly with the three (3) drive-to-motor screws.
6. Plug the keypad assembly into the drive.
7. Place the keypad assembly in the desired orientation on the drive and reattach
the four (4) drive cover screws in the corners of the drive.
Note: Ensure that the keypad cable is not being pinched between the drive
and keypad cover.
8. Reconnect the RS-485 if connecting to automation and restore power to
the pump at the breakers.

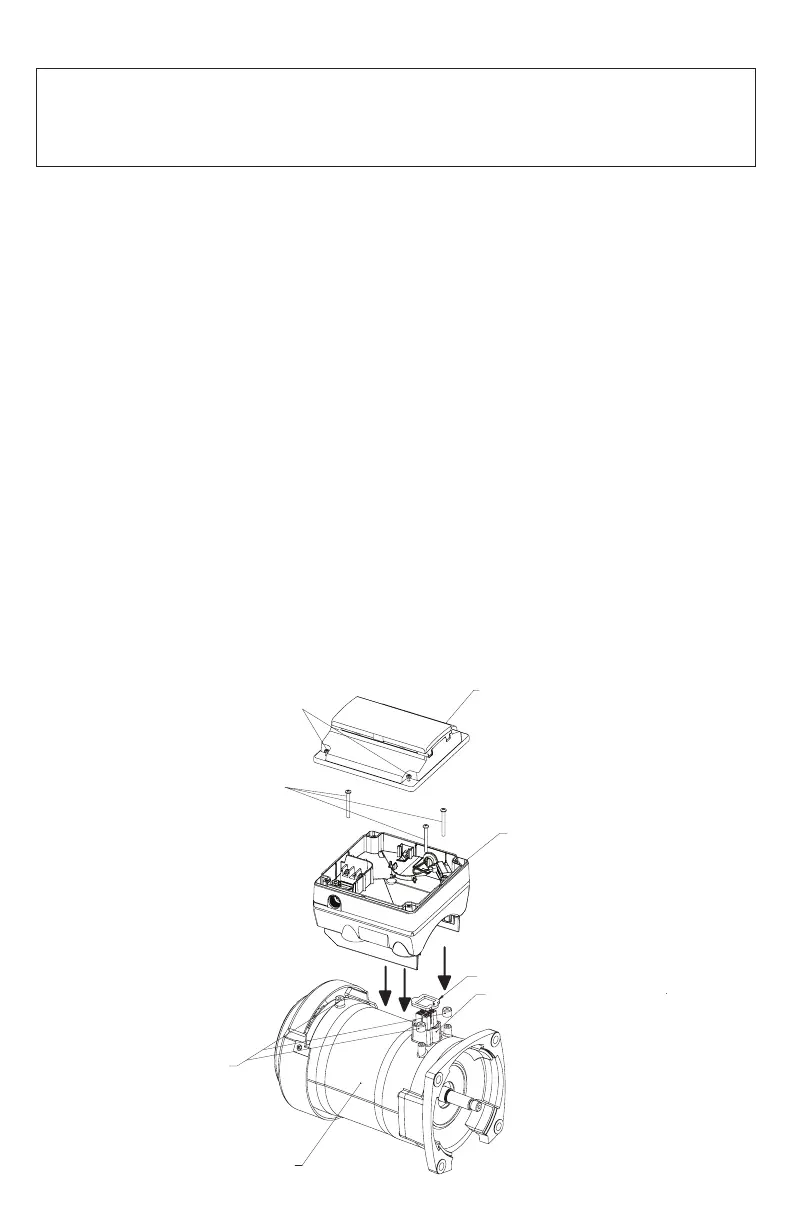

Motor Assembly
Gasket
Connector
Adapter
Post Caps (Qty3)
Orange Motor
Drive Assembly
Keypad Assembly
Screws (Qty3)
Drive-to-Motor
Screws (Qty4)
Drive Cover
