26850A002 06/04/14
10

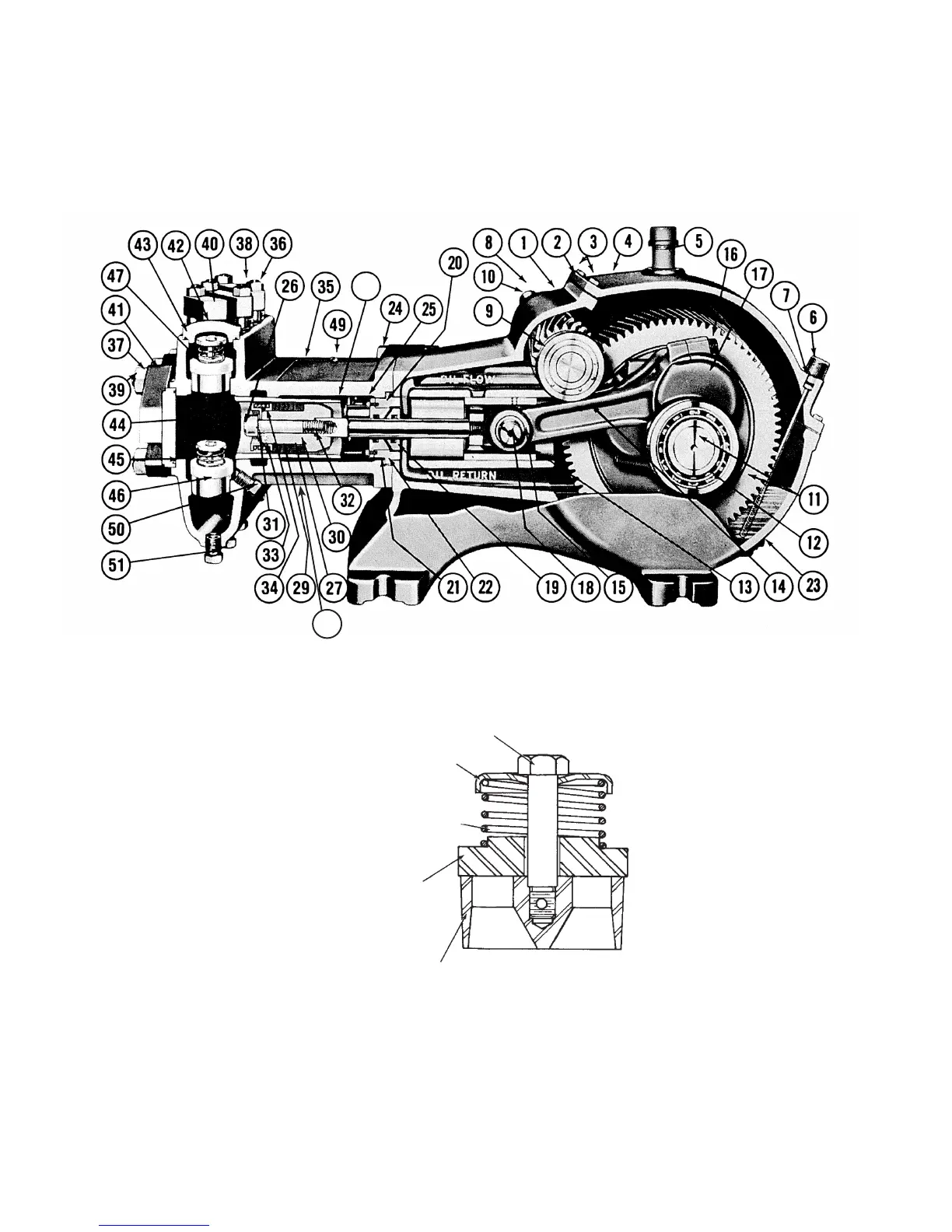

D65-20 SERIES
28
48
Cap Screw 18832A000
Retainer 18833A001 (3 req)
Discharge Spring 11829A000
(3 req)
Valve 18834A001
(3 req)
Suction Spring
11463A000
Valve Seat
18835A002 (3 req)
COMPLETE DISCHARGE VALVE AND SEAT 18925A004
COMPLETE SUCTION VALVE AND SEAT 18925A003
