PROWLER
®
920 Robotic Inground Pool Cleaner Installation and User’s Guide
Overview
Prowler
®
920 Robotic Pool Cleaners are designed to scrub, vacuum, and filter (including the waterline) your inground
pool. Before operating this product, be sure to read and follow all warning and safety instructions on pages ii-iii.

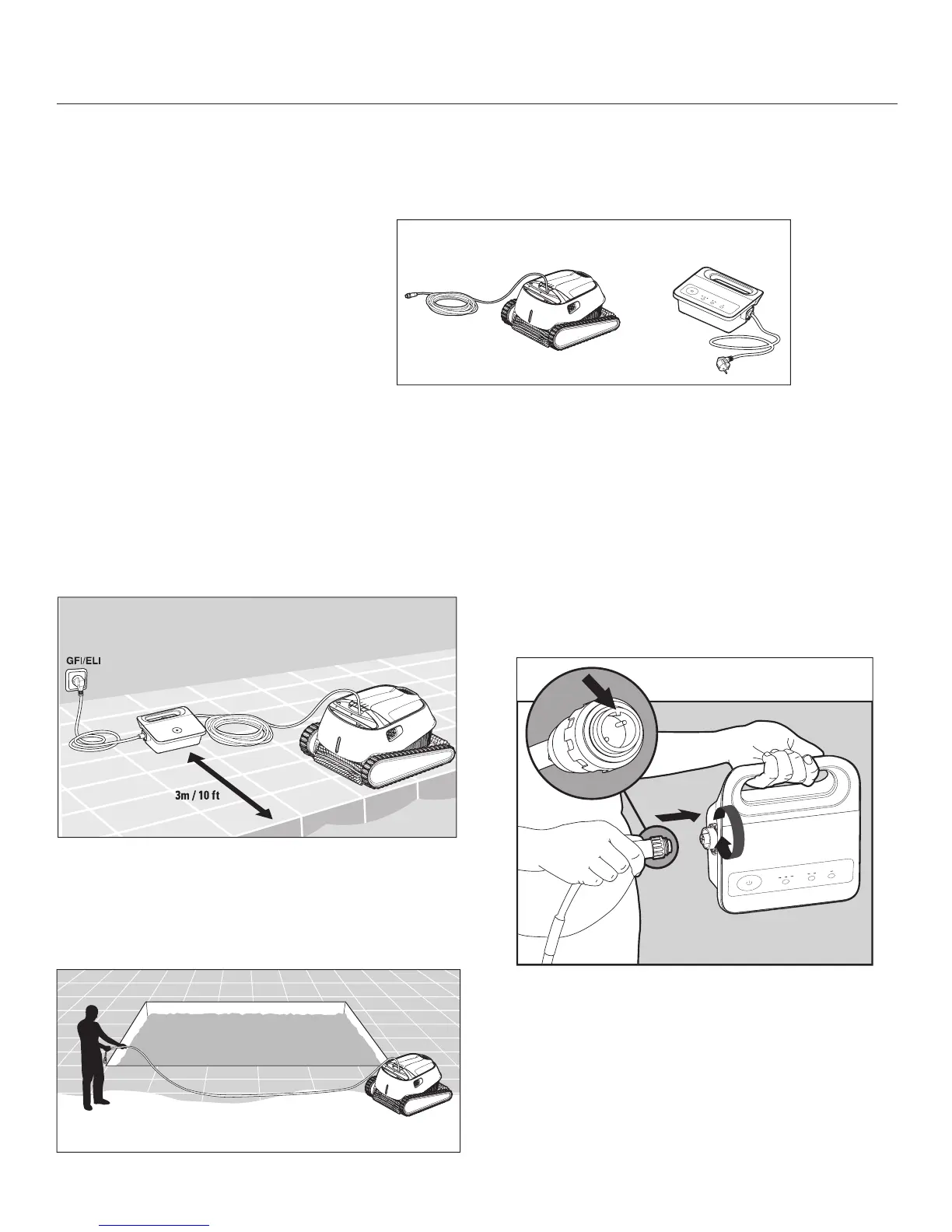

Cleaner Components:
• Cleaner with 60 ft. Floating Cable
• Power Supply
Cleaner Features:
• Weekly Timer
• Wall and Waterline Scrubbing
• Top Loading Basket Filtration
PREPARATION OF THE POOL AND CLEANER
Cleaner with 60 Ft.
Floating Cable
Power Supply
STEP 1:
Power Supply and Caddy Placement
Position the power supply at least 10 feet (3 m) from the
edge of the pool. See Figure 1.
STEP 2:
Unroll Floating Cleaner Cable
Unroll the floating cable and stretch it out completely so
that is has no kinks. See Figure 2.
Initial Setup
Before using the cleaner for the first time, perform the following procedures:
Figure 2
Figure 1
STEP 3:
Connect Power Supply to Cleaner
Connect the floating cleaner cable to the power supply.
Ensure the connector notch is lined up with the
corresponding groove in the socket on the power supply.
Turn the cable connector clockwise to lock the cable into
the power supply connection. See Figure 3.
Figure 3
