Pentair PROWLER 920 - Periodic Filter Screen Cleaning

KREEPY KRAULY
®
PROWLER
®
920 Robotic Inground Pool Cleaner Installation and User’s Guide
6
PROWLER
®
920 Robotic Inground Pool Cleaner Installation and User’s Guide
Periodic Filter Screen Cleaning
Note: It is recommended that you clean the filter screens at least once a month. Too much debris in the filter screens will
restrict the suction power of the Prowler
®
920 Robotic Pool Cleaner and reduce its effectiveness.
To dismantle and clean the four filter screens, follow the instructions given below.

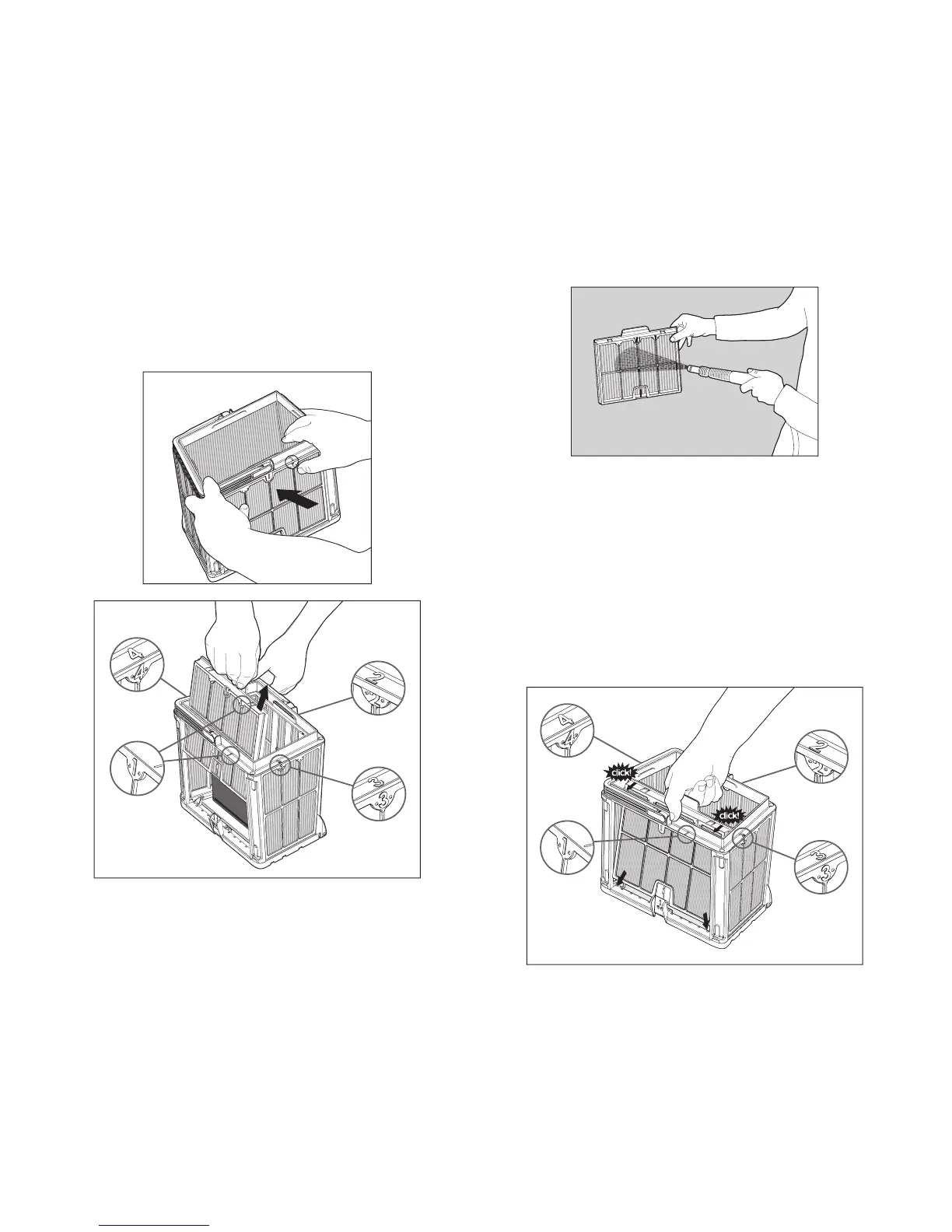

STEP 1:
Remove the Filter Screens
Using your thumbs, firmly press inwards on the top of
Panel 1 to remove the filter screen from its frame (see
Figure 16).
Each filter screen is stamped with a number (see Figure
17). Remove the filter screens in numerical order; Screen
1 > 2 > 3 > 4.
Figure 16
Figure 17
STEP 2:
Clean the Filter Screens
Thoroughly clean the filter screens with a garden hose.
See Figure 18.
Figure 18
STEP 3:
Reassemble the Filter Screens
Replace the filter screens by seating the bottom of the
screen into its frame, then pushing firmly outwards on the
top of the screen until a click is heard.
Each filter screen is stamped with a number (see Figure
19). Replace the filter screens in numerical order; Screen
4 > 3 > 2 > 1.
Figure 19
