SUPERFLO® VST, SUPERFLO
®
VS and SUPERMAX® VS Variable Speed Pumps Installation and User’s Guide
10.6”
(269mm)
6.3”
(161mm)
7.7”
(197mm)
14.2”
(362mm)
9”
(228mm)
8.7”
(221mm)
7.7”
(196mm)
10.1”
(256mm)
9.3”
(237mm)
12.5”
(318mm)
Specications and Dimensions

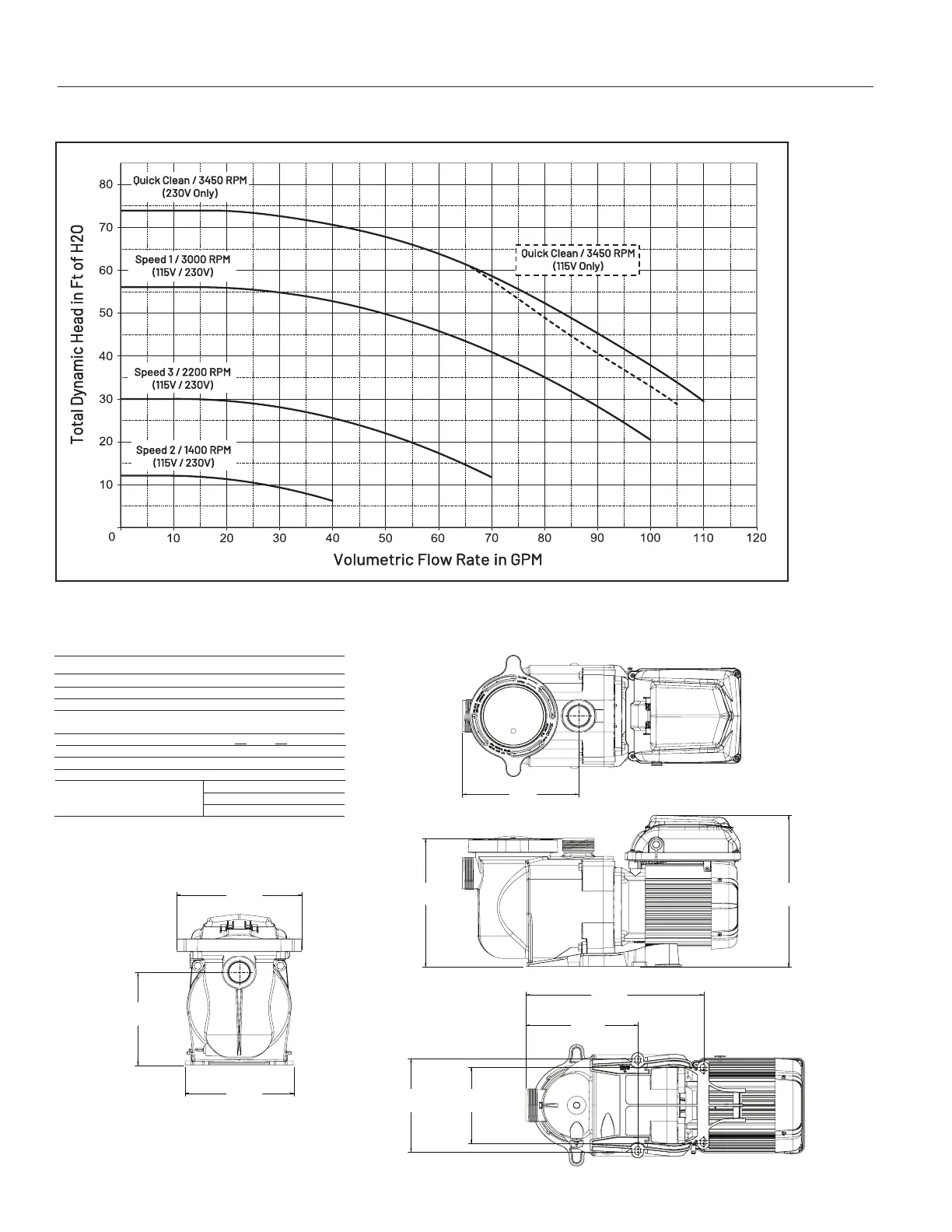

Performance Curves
TECHNICAL DATA
Overall Ratings
Input Voltage 115-230 Vrms nominal
Input Current 13.6/8.2-7.1 A
Input Frequency Single phase, 50 or 60 Hz
Control Terminals 18-30V AC (24V AC+/- 20%) or
9-30V DC (12/24V DC +/- 20%)
Maximum Continuous Load WEF 9.0 THP: 2.2
Speed Range 450 - 3450 RPM
Environmental Rating NEMA Type 3
Ambient Conditions
Storage -40ºC to +85ºC (-40ºF to +185°)
Operating 0ºC to +50ºC (+32°F to +122°F)
Humidity Relative 0 to 95 % non-condensing

Pentair SUPERFLO VST Specifications

General

Horsepower	1.5 HP
Energy Efficiency	ENERGY STAR Certified
Control Interface	Digital Control Panel
Speed Settings	Variable Speed
Motor Type	Permanent Magnet
Voltage	230V
Warranty	1 Year Limited Warranty
