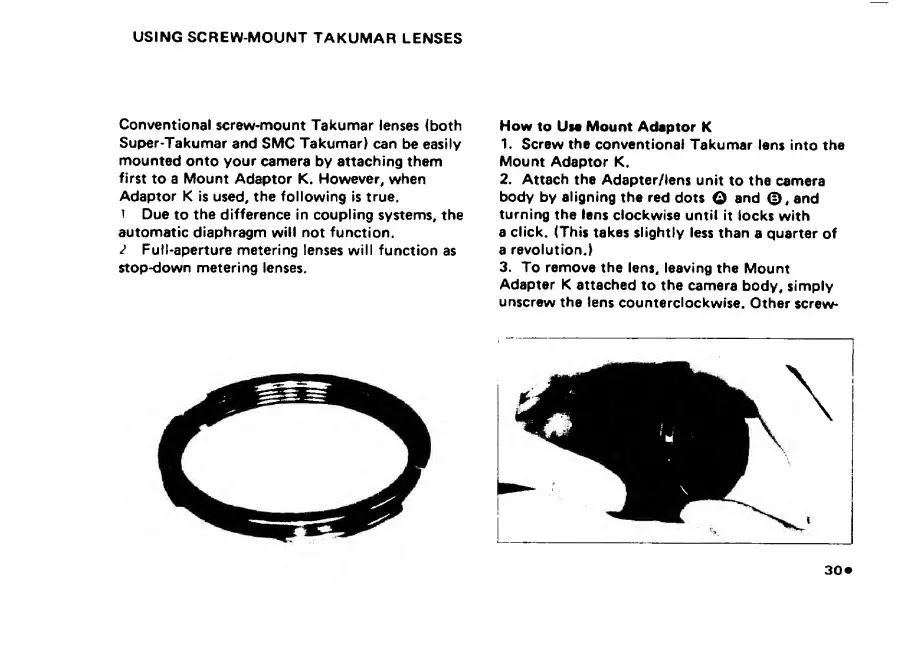

USING SCREW-MOUNT TAKUMAR LENSES
Conventional screw-mount Takumar lenses {both
Super-Takumar and SMC Takumar) can be easily
mounted onto your camera by attaching them
first to a Mount Adaptor K. However, when
Adaptor K is used, the following is true.
1 Due to the difference in coupling systems, the
automatic diaphragm will not function.
2 Full-aperture metering lenses will function as
stop-down metering lenses.
How to Uh Mount Adaptor K
1. Screw the conventional Takumar lens into the
Mount Adaptor K.
2. Attach the Adapter/lens unit to the camera
body by aligning the red dots O and <D, and
turning the lens clockwise until it locks with
a click. (This takes slightly less than a quarter of
a revolution.)
3. To remove the lens, leaving the Mount
Adapter K attached to the camera body, simply
unscrew the lens counterclockwise. Other screw-
30 *
