peoplenet PD5 - Cable Pin-Out Information; PD5 Cable Connector View; Vehicle Power and Ground Pins; OnBoard Computer Power and Ground Pins

peoplenet PD5
18 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
Page | 17
Cable Pin-Out

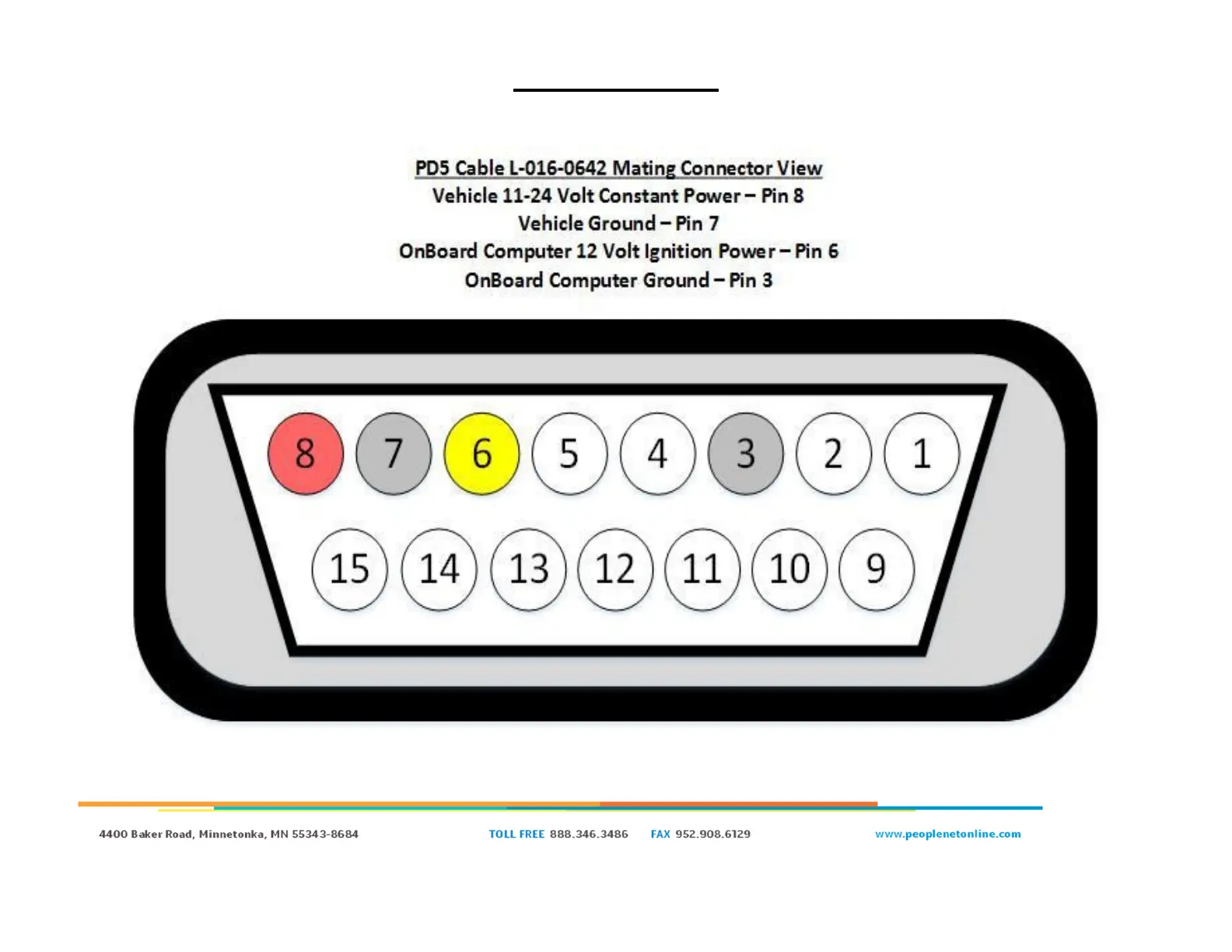

This pin-out can aid in troubleshooting if the display fails to boot
