y Kit Installation Guide
5.4.1
Bat
tery Set appear
ance
●

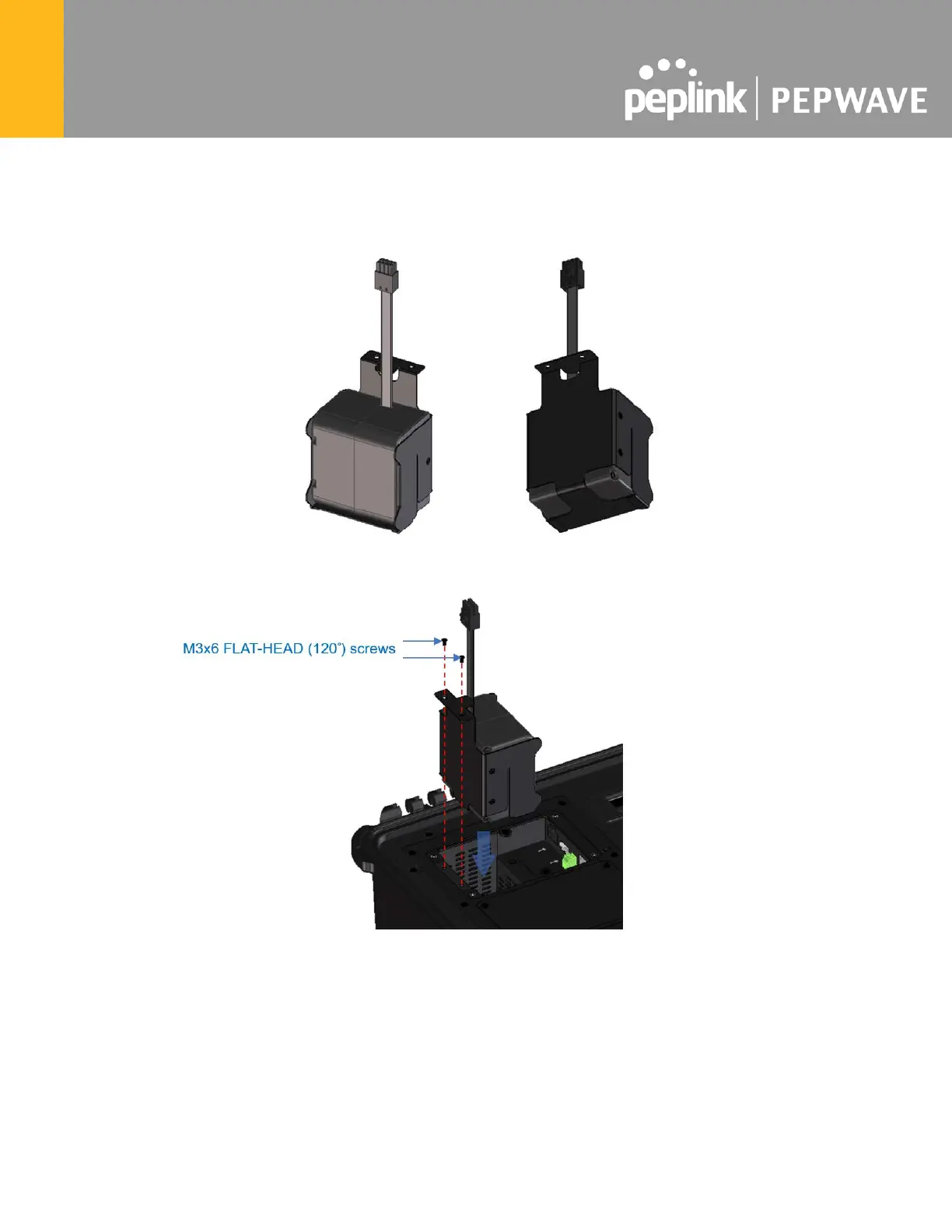

Step 1: Lock the battery set in the slot with 2 pcs M3 screws.
●
Step 2: Plug power cable into the socket
