BTC12N-*
Installation
3.2 Electrical Connection
Power consumption at 28 V supply voltage:
• Maximum load: 31.6 W (CPU full load, 14 W total output power to USB ports)
• Normal operation: 16 W (CPU full load, "no additional electrical consumers")
• Standby: 3.4 W
Power dissipation:
• Maximum heat dissipation: 17.6 W (CPU full load, 14 W total output power to USB ports)
• Normal operation: power dissipation = power consumption

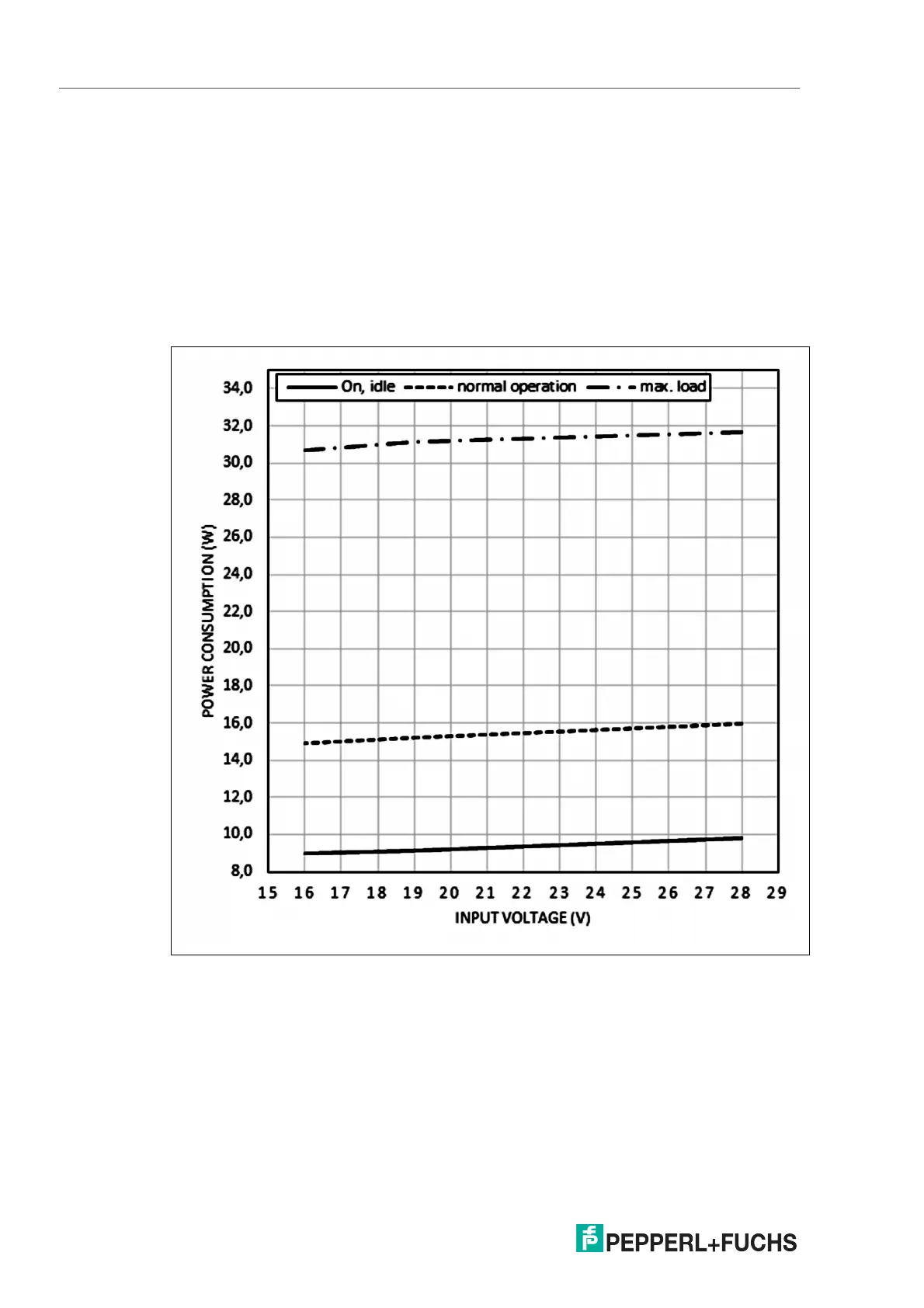

Figure 3.12
