Pepperl+Fuchs KFD0-TR-1 - Page 46

2023-03
46
K-System – Signal Conditioners
Technical Specifications

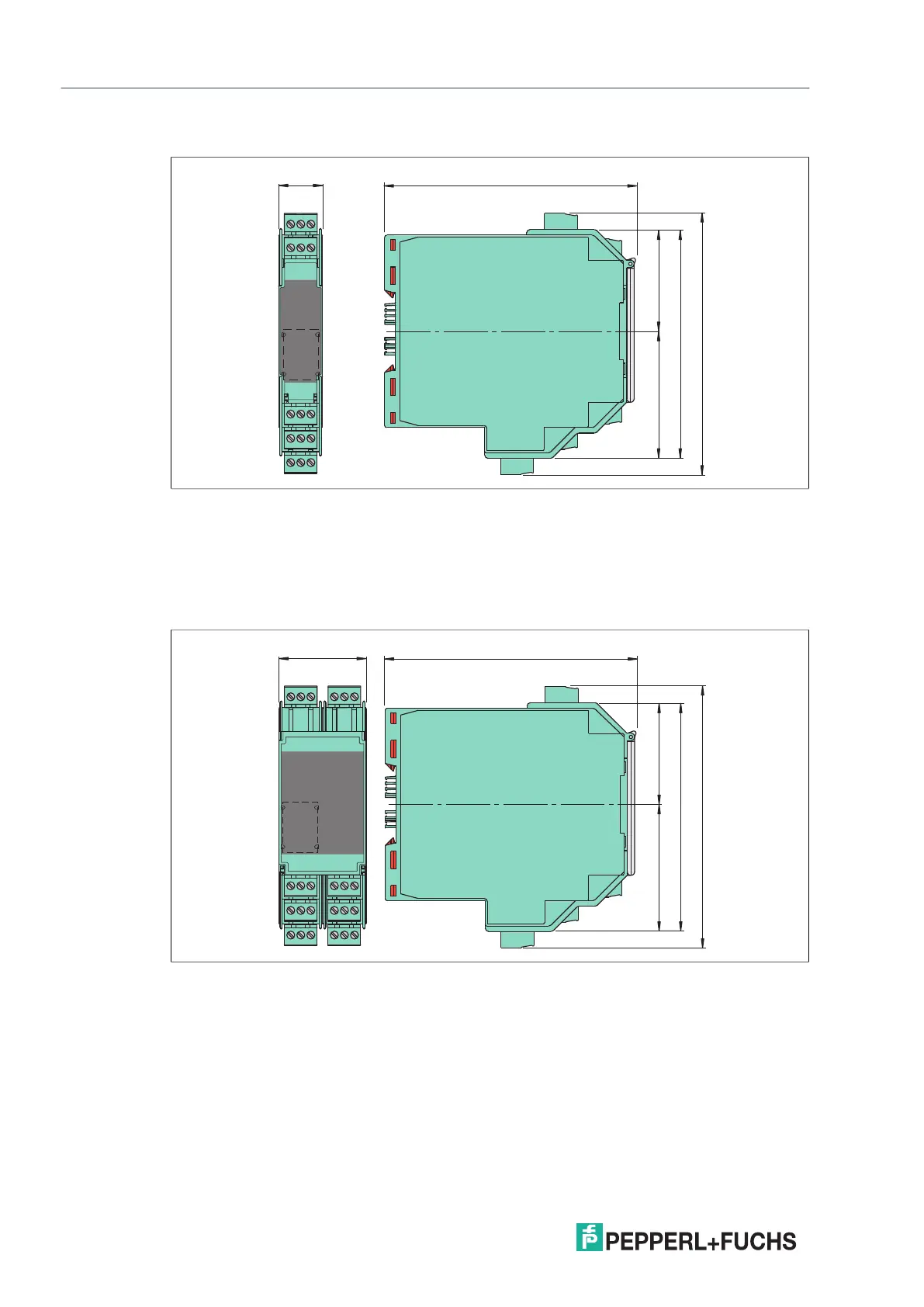

Figure 7.3 Dimensions (W x H x D)
• Device with screw terminals: 20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch)
• Device with screw terminals and test sockets: 20 x 124 x 115 mm (0.8 x 4.9 x 4.5 inch)
• Device with spring terminals: 20 x 131 x 115 mm (0.8 x 5.2 x 4.5 inch)
• Number of terminal blocks maximum 5
Figure 7.4 Dimensions (W x H x D)
• Device with screw terminals: 40 x 119 x 115 mm (1.6 x 4.7 x 4.5 inch)
• Device with screw terminals and test sockets: 40 x 124 x 115 mm (1.6 x 4.9 x 4.5 inch)
• Device with spring terminals: 40 x 131 x 115 mm (1.6 x 5.2 x 4.5 inch)
• Number of terminal blocks max. 10
Housing Type B2
Housing Type C2
20 mm
115 mm
46 mm58 mm
119 mm
104 mm
40 mm
115 mm
46 mm58 mm
119 mm
104 mm
