SAFETY MANUAL SIL KFD2-UT2-(EX)*, HID2082
Proof Test
Voltage Input (mV)

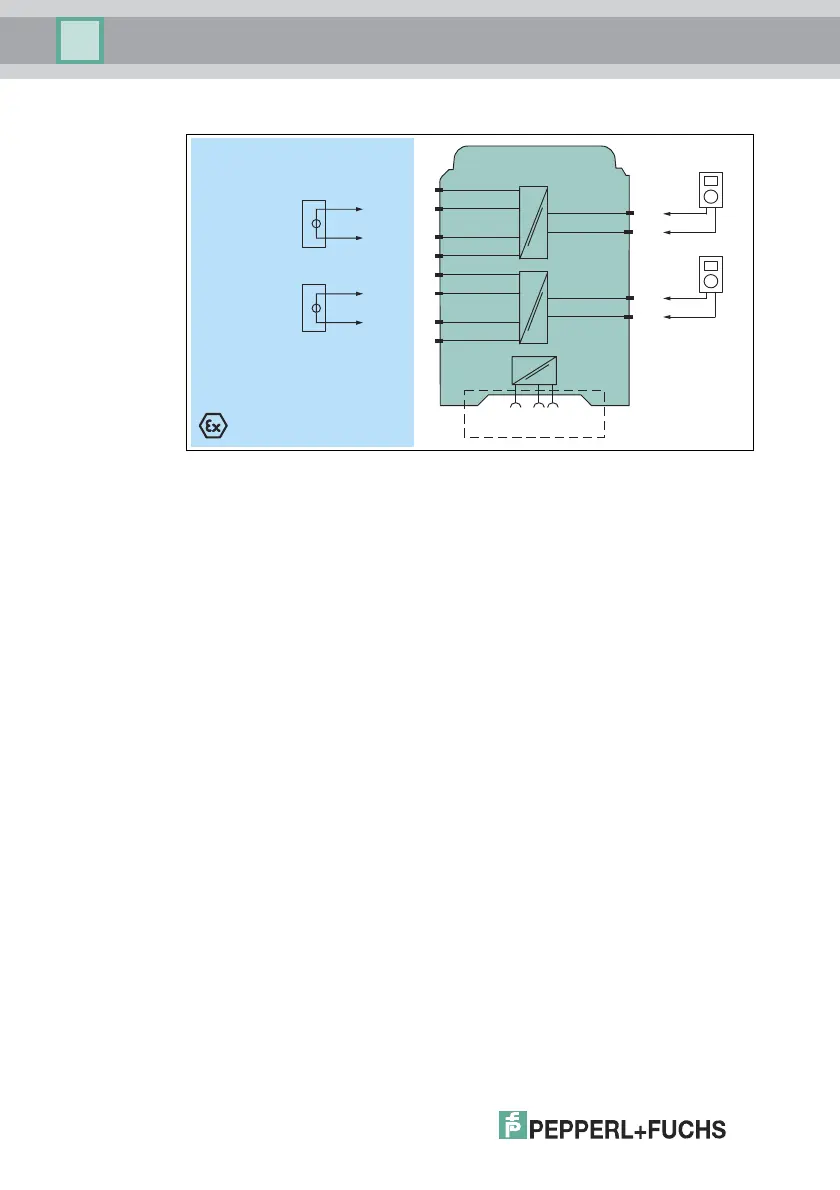

Figure 4.7 Proof test set-up for HiD2082 (mV)
1. Connect mV source to terminals 2 and 5 (channel I) and 3 and 6 (channel II).
2. Connect current meter/digital multimeter (DMM) to the current output
terminals 11 and 14 (channel I) and 12 and 15 (channel II).
3. Set the mV source sequentially to the voltage values
representing 4 mA, 12 mA, 20 mA and measure the output current.
4. Proof test is passed if the measured output values are within 2 % of the output
full scale. This means:
• 3.7 mA ... 4.3 mA
• 11.7 mA ... 12.3 mA
• 19.7 mA ... 20.3 mA
Additionally the loop diagnosis shall be tested to prove that the fault signalling via
the current output is working correctly. The output current in the event of a failure
depends on the device configuration. Please record this configuration and the
resulting expected fault signalling current in the test report. Example: if downscale
is configured, 2.0 mA ±1 % must be measured in the event of a failure. The red
LED must be blinking.
Voltage Input:
■ Disconnect voltage source. Verify that the output indicates a lead breakage.
HiD2082
11+
14-
1
2+
5-
4
12+
15-
7
3+
6-
8
24 V DCERR
mA
mA
mV
mV
Zone 0, 1, 2
Div. 1, 2
