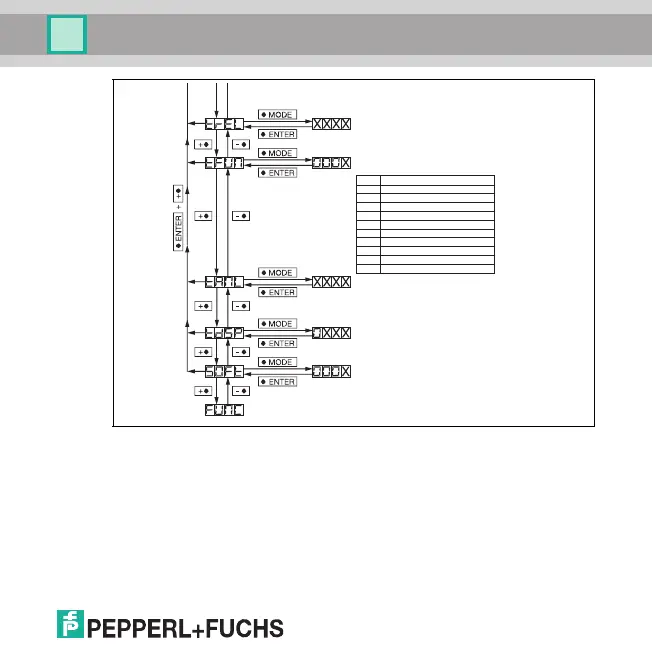

Figure 7.2 Graphic function description
Period for the timer function of switching relay
0.1 s ≤ XXX.X ≤ 999.9 s
Preset at the factory: XXX.X=1.0 s
Timer function of switching relay
Preset at the factory: X=0
Start-up bypass
0.1 s ≤ XXX.X ≤ 999.9 s
Preset at the factory: XXX.X=1.5 s
Display rate
0.01 s ≤ XX.X ≤ 2.5 s
Preset at the factory: XX.X=0.33 s
The number of the software version
can be read only.
X Function
0 No timer function
1 ON delay
2 OFF delay
3 Defined ON time
4 Pulse lengthening
5 No timer function, inverted
6 ON delay, inverted
7 OFF delay, inverted
8 Defined ON time, inverted
9 Pulse lengthening, inverted
