Pepperl+Fuchs R1000 Series User Manual

Distance Sensors
Installation
2021-09
13

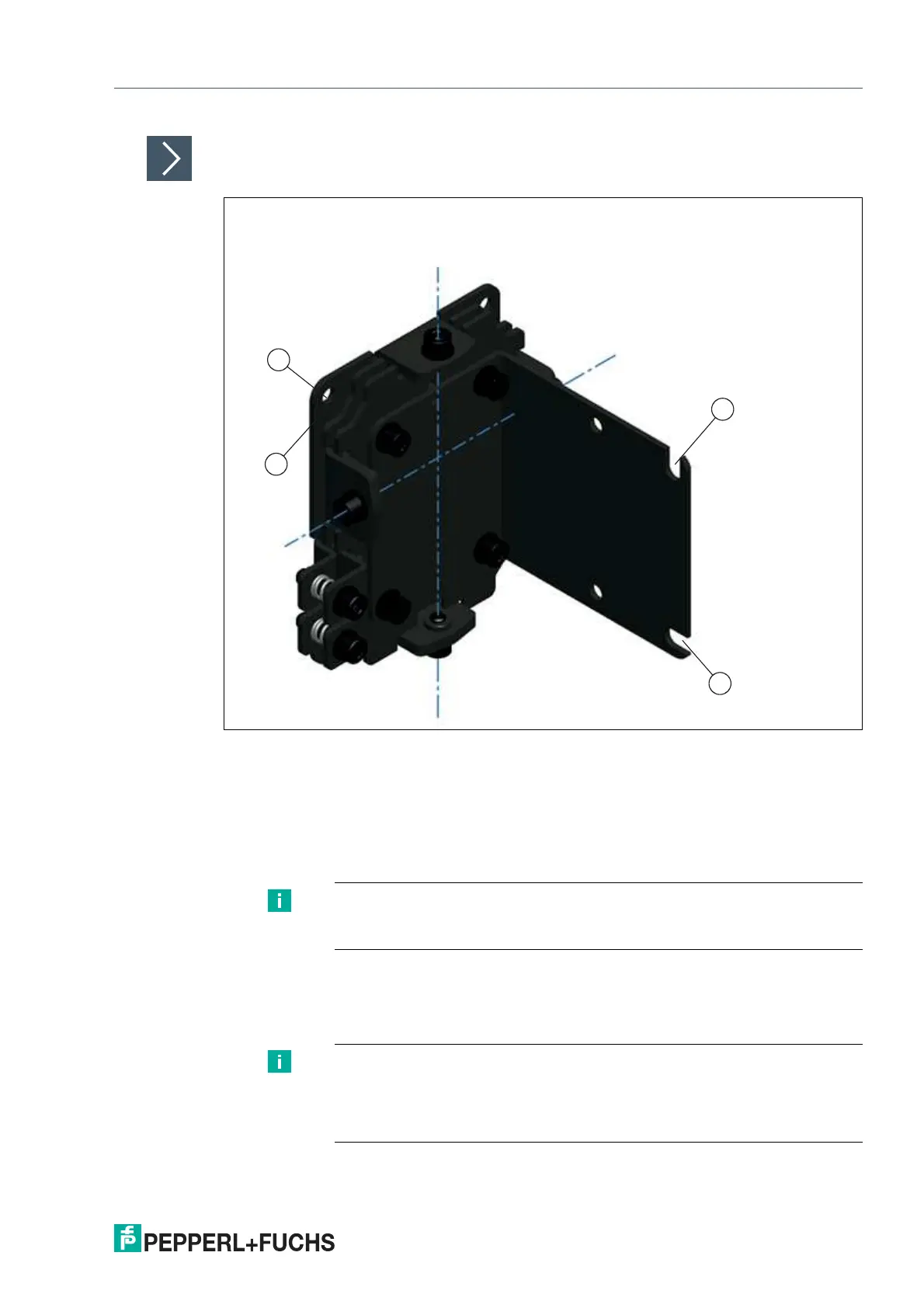

Mounting the Bracket on the Wall
Figure 5.1
1. Position the bracket in the desired measurement direction.
2. Position the intersection of the Y-axis and Z-axis at the level of the reflector.
3. To install the bracket, use the holes (2) in the corners of the base plate (1). Secure the bracket
with four M5 mounting screws and four washers.
1 Base plate
2 Hole Ø 5.3 mm
3 Slot
3
2
1
3
Z
Y
Note
To precisely adjust the device horizontally or vertically, align the bracket to the
optimal vertical position.
Note
Influencing of the Measurement Result
A loose bracket can affect the measurement result.
Check that the bracket is firmly seated.
