2021-09
14
Distance Sensors
Installation
Mounting the Device on the Bracket

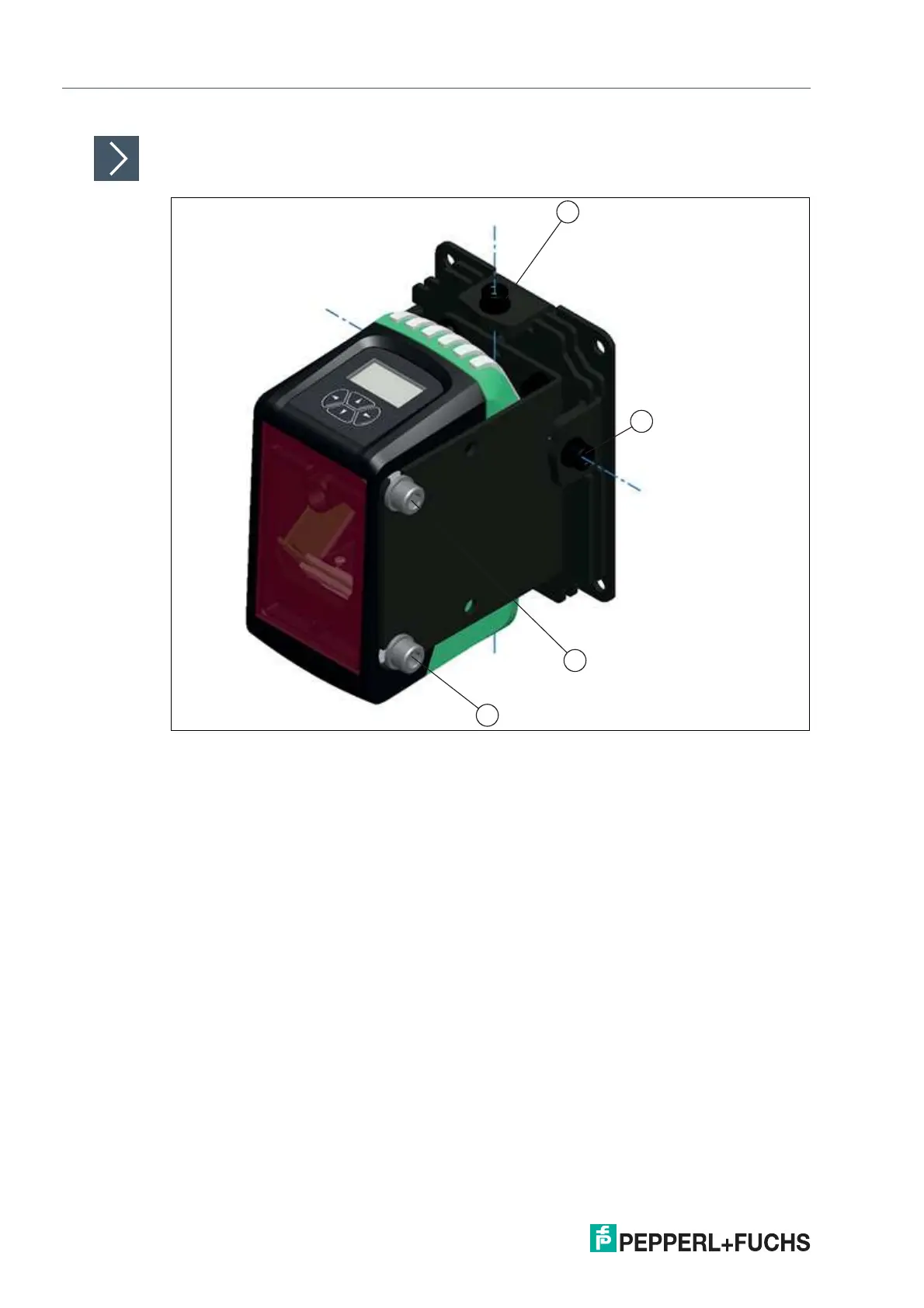

Figure 5.2
1.
Remove the device from the packaging.
2.
Screw the M6 mounting screws into the M6 threaded side holes together with the washers so
that the clearance between the washer and the device wall is approximately 3 mm. The
mounting screws are included in the scope of delivery.
3.
Hang the device in the slot holes of the bracket and tighten the M6 mounting screws to secure
the device to the bracket.
The maximum tightening torque of the mounting screws must not exceed 3.6 Nm.
1 Z-axis locking screw
2 Y-axis locking screw
3 M6 mounting screw with washer
